PedalMeetingHeadphoneAmp RevD PCB layout, top view — open source board by kanengomibako

About the PedalMeetingHeadphoneAmp RevD PCB

PedalMeetingHeadphoneAmp RevD is an open source PCB design by kanengomibako, published on GitHub under the Unlicense license. It is a 2-layer board measuring 100 × 80 mm, with 121 components from 39 distinct parts.

Other key parts include the NE5532, NJM4556A and 78L05. By type, the board carries 46 resistors, 35 capacitors, 8 connectors, 7 ICs, 5 diodes and 4 transistors.

It belongs with the audio designs in this gallery.

From the project

エフェクター展示会の試奏ブースでのコミュニケーションを円滑にするために設計されたヘッドフォンアンプです。ギター/ベースの音と会話用のマイク音声をミックスし、ヘッドフォンで聴くことができます。試奏者と出展者が音を共有できると共に、ヘッドフォンを外さずに会話することが可能となります。

エフェクター展示会の試奏ブースでのコミュニケーションを円滑にするために設計されたヘッドフォンアンプです。ギター/ベースの音と会話用のマイク音声をミックスし、ヘッドフォンで聴くことができます。試奏者と出展者が音を共有できると共に、ヘッドフォンを外さずに会話することが可能となります。

※ 電源は、DC9V(センターマイナス)出力のACアダプターで、0.3A以上の電流出力が可能なものを使用してください。

それぞれ独立したゲイン調整を備えています。ゲインを上げ過ぎるとハウリングが起こることがありますのでご注意ください。

楽器側の音声出力を接続します。アンプ・キャビネットシミュレータからの接続を想定しています。ゲインは基本的に中央で固定し、微調整として使用してください。

外部マイクを接続します。48Vファンタム電源が必要なマイクには対応していません。

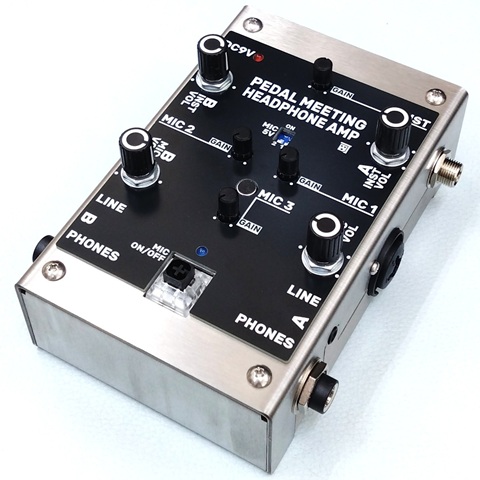

PedalMeetingHeadphoneAmp RevD, from the project README
From the project README

Main components on the PedalMeetingHeadphoneAmp RevD

PedalMeetingHeadphoneAmp RevD bill of materials (BOM)

121 components, 39 distinct parts.

QtyPartRefs
4
NE5532
U1, U2, U4, U5
2
NJM4556A
U6, U7
1
78L05
U8
1
GMI6027P-2C30DB
M1
2
MMBF4393
Q1, Q4
2
MMBT3904
Q2, Q3
1
PJ-6318B-S
J1
2
XJ-006-SU
J2, J3
2
PJ-313D
J4, J6
2
PJ-603A
J5, J7
1
DC-005
J8
3
JP
JP1, JP2, JP3
1
SW_DIP
SW1
1
SW
SW3
4
B10k
VR1, VR2, VR3, VR4
4
B100k
VR5, VR6, VR7, VR8
1
Red_LED
LED1
1
Blue_LED
LED2
5
SM4007
D1, D2, D3, D4, D5
1
2.2u
C1
Show 19 more
QtyPartRefs
6
2.2u
C2, C4, C5, C7, C8, C10
4
100p
C3, C6, C9, C11
4
220p
C12, C13, C14, C15
10
100n
C16, C17, C18, C28, C30, C31, C32, C33 +2
2
10u
C19, C22
4
1000u
C20, C21, C23, C24
3
47u
C25, C26, C27
1
10u
C29
3
47k
R1, R15, R16
3
100R
R2, R13, R42
4
1k
R3, R6, R31, R32
18
10k
R4, R5, R7, R8, R10, R11, R19, R20 +10
3
2.2k
R9, R40, R41
1
100k
R12
2
1M
R14, R43
4
100k
R17, R18, R33, R34
4
10R
R27, R28, R29, R30
1
10M
R39
3
4.7k
R44, R45, R46

PedalMeetingHeadphoneAmp RevD design files

The KiCad project lives in the kanengomibako/EffectsPedals repository on GitHub; these links point at the commit this page was built from.

PedalMeetingHeadphoneAmp RevD: common questions

How big is the PedalMeetingHeadphoneAmp RevD PCB?

The PedalMeetingHeadphoneAmp RevD measures 100 × 80 mm, has 2 copper layers and is 1 mm thick.

How many components are on the PedalMeetingHeadphoneAmp RevD?

121 components, from 39 distinct parts. The full bill of materials is listed on this page.

Where can I download the PedalMeetingHeadphoneAmp RevD design files?

From the kanengomibako/EffectsPedals repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PedalMeetingHeadphoneAmp RevD design in my own project?

Yes, under the terms of its Unlicense license, which kanengomibako chose for the repository.
