Esp32s3-usb imu board

kanishqtanwar35-hub·esp32s3-usb-imu-board·hardware/esp32s3_imu.kicad_pcb

Esp32s3-usb imu board layout, top view — open source ESP32 board by kanishqtanwar35-hub
Simulate this board

About the Esp32s3-usb imu board

Esp32s3-usb imu board is an open source ESP32 PCB design by kanishqtanwar35-hub, published on GitHub. It is a 2-layer board measuring 65 × 45 mm, with 33 components from 22 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N8R2, from the ESP32 family. Other key parts include the CH340C, AP2112K-3.3 and ICM-42688-P. By type, the board carries 10 capacitors, 10 resistors, 4 ICs, 4 diodes, 2 transistors and 1 connector.

It belongs with the sensors, usb & debug tools and dev boards & breakouts designs in this gallery.

From the project

2-layer ESP32-S3 board with onboard CH340C USB-UART (auto-reset) and ICM-42688-P IMU. KiCad schematic, layout, gerbers and bring-up firmware.

A small 2-layer ESP32-S3 dev board where the programming circuit and the motion sensor are designed in at chip level instead of plugged in as breakout modules. You plug in USB-C, it enumerates as a serial port, and esptool can flash it without touching a button.

Started as a hardware design assignment. The original problem statement is in assignment/problemstatement.pdf`.

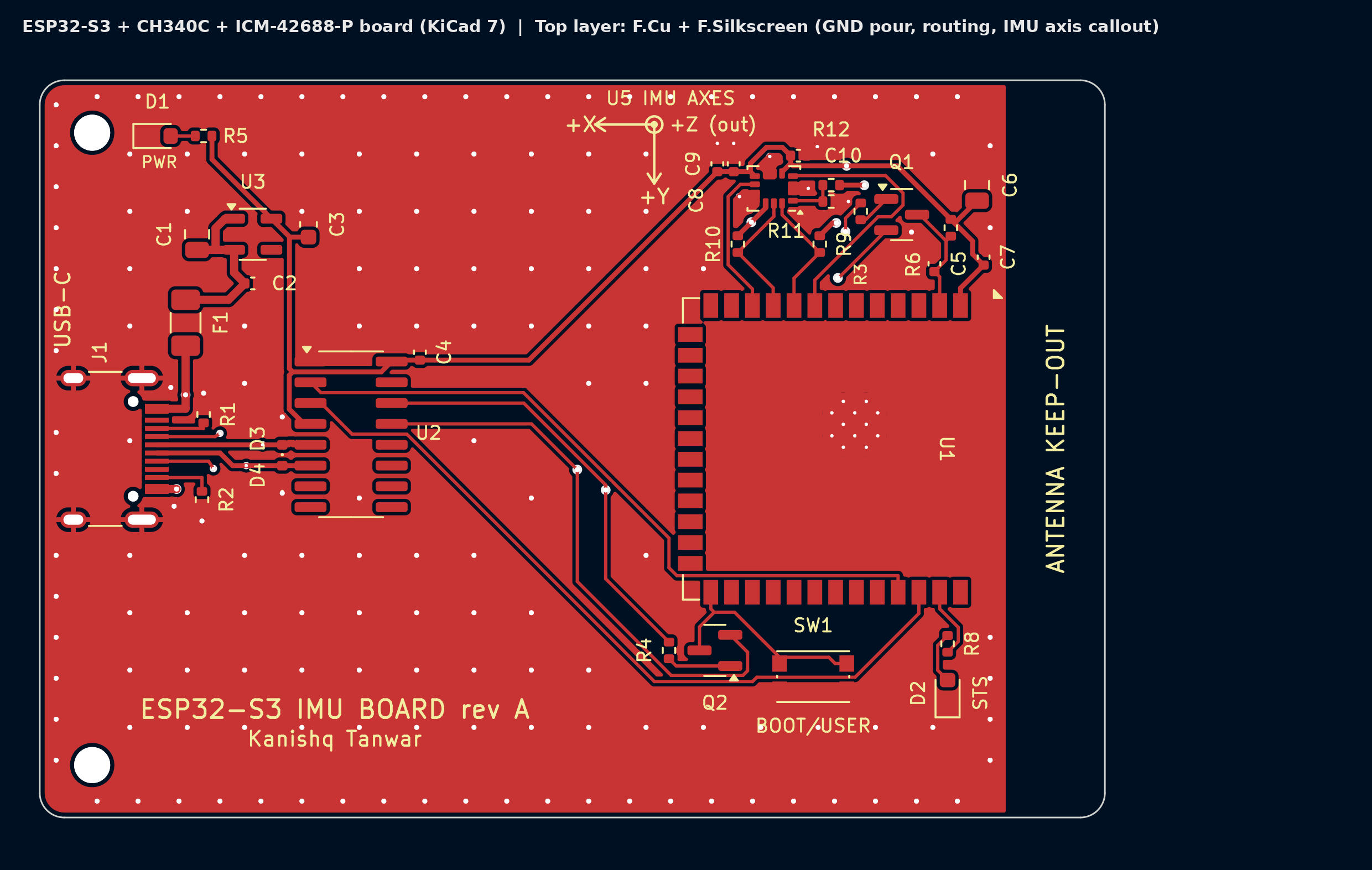

Esp32s3-usb imu board, from the project README
From the project README

Main components on the Esp32s3-usb imu board

ESP32-S3-WROOM-1-N8R2CH340CAP2112K-3.3ICM-42688-P

Esp32s3-usb imu board bill of materials (BOM)

33 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1-N8R2
U1
1
CH340C
U2
1
AP2112K-3.3
U3
1
ICM-42688-P
U5
2
MMBT3904
Q1, Q2
1
USB-C 16P
J1
1
PTC 500mA
F1
1
BOOT/USER
SW1
1
RED
D1
1
GREEN
D2
2
TPD1E10B06
D3, D4
1
10uF 16V
C1
4
100nF
C2, C4, C7, C8
1
10uF
C3
1
1uF
C5
1
22uF
C6
1
2.2uF
C9
1
10nF
C10
2
5.1k 1%
R1, R2
4
10k
R3, R4, R6, R11
Show 2 more
QtyPartRefs
2
1k
R5, R8
2
4.7k
R9, R10

Esp32s3-usb imu board design files

The KiCad project lives in the kanishqtanwar35-hub/esp32s3-usb-imu-board repository on GitHub; these links point at the commit this page was built from.

Esp32s3-usb imu board: common questions

What microcontroller does the Esp32s3-usb imu board use?

The Esp32s3-usb imu board is built around the ESP32-S3-WROOM-1-N8R2, from the ESP32 family.

How big is the Esp32s3-usb imu board?

The Esp32s3-usb imu board measures 65 × 45 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32s3-usb imu board?

33 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32s3-usb imu board design files?

From the kanishqtanwar35-hub/esp32s3-usb-imu-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32s3-usb imu board design in my own project?

The repository has no license, so all rights stay with kanishqtanwar35-hub. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32s3-usb imu board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
