About the Hotplate PCB

Hotplate is an open source ESP32 PCB design by Keyaan-07, published on GitHub under the MIT license. It is a 4-layer board measuring 60 × 45 mm, with 74 components from 37 distinct parts.

Its main chip is the ESP32-C3, from the ESP32 family. Other key parts include the TPS56339DDC, AP33772SDKZ-XX-FA02, TXS0101DBV, TMP100 and ADS1110. By type, the board carries 27 capacitors, 18 resistors, 10 ICs, 5 diodes, 4 connectors and 3 transistors.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

Features: - Upto 45W heating - Wi-Fi Controlled - Overcurrent protection & shortcircuit protection. - accurate current measurement - Integrated temperature sensor - Open Source! - integrated ADC for NTC temperature readings

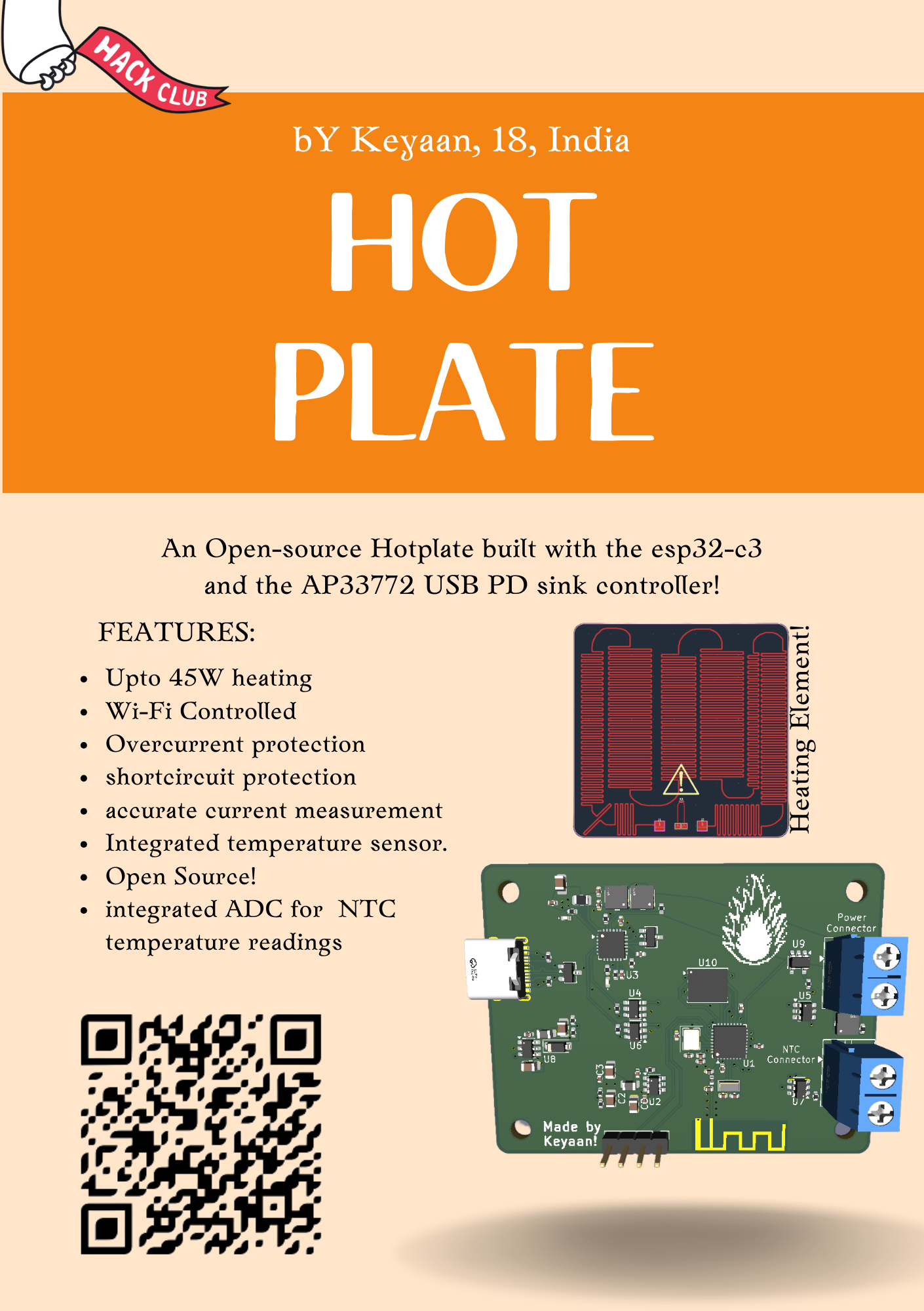

Hotplate, from the project README
From the project README

Main components on the Hotplate

ESP32-C3TPS56339DDCAP33772SDKZ-XX-FA02TXS0101DBVTMP100ADS1110LM2842YMCP1416W25Q128JVP

Hotplate bill of materials (BOM)

74 components, 37 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-C3
U1
1
TPS56339DDC
U2
1
AP33772SDKZ-XX-FA02
AP33772SDKZ-xx-FA02
U3
2
TXS0101DBV
U4, U6
1
TMP100
U5
1
ADS1110
U7
1
LM2842Y
U8
1
MCP1416
U9
1
W25Q128JVP
U10
3
AON7262E
Q1, Q2, Q3
1
40MHZ
40MHz
Y1
1
32.786KHZ
32.786KHz
Y2
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
2
SCREW_TERMINAL_01X02
Screw_Terminal_01x02
J2, J3
1
CONN_01X04_PIN
Conn_01x04_Pin
J4
1
Antenna_Shield
AE1
1
10K
10k
TH1
2
LED
D1, D2
2
ESDA5V3L
D3, D4
1
1N4148W
D5
Show 17 more
QtyPartRefs
2
4.7U
4.7u
L1, L2
1
3n
L3
12
100N
100n
C1, C4, C6, C7, C14, C15, C16, C17 +4
6
10U
10u
C2, C3, C5, C25, C26, C27
4
15P
15p
C8, C9, C10, C11
1
1.8P
1.8p
C12
1
1.2P
1.2p
C13
3
1u
C18, C19, C24
1
30
R1
1
56K
56k
R2
4
10K
10k
R3, R6, R16, R18
3
100
R4, R7, R8
1
5m
R5
4
5.1K
5.1k
R9, R10, R14, R15
1
1k
R11
2
100K
100k
R12, R13
1
31.6K
31.6k
R17

Hotplate design files

The KiCad project lives in the Keyaan-07/Hotplate repository on GitHub; these links point at the commit this page was built from.

Hotplate: common questions

What microcontroller does the Hotplate use?

The Hotplate is built around the ESP32-C3, from the ESP32 family.

How big is the Hotplate PCB?

The Hotplate measures 60 × 45 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Hotplate?

74 components, from 37 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hotplate design files?

From the Keyaan-07/Hotplate repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Hotplate design in my own project?

Yes, under the terms of its MIT license, which Keyaan-07 chose for the repository.

Can I test firmware for the Hotplate without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
