Pmod encoder

Lathe-Mariel·Pmod·Pmod_encoder/Pmod_encoder.kicad_pcb

Pmod encoder PCB layout, top view — open source board by Lathe-Mariel

About the Pmod encoder PCB

Pmod encoder is an open source PCB design by Lathe-Mariel, published on GitHub. It is a 2-layer board measuring 39.1 × 19.8 mm, with 10 components from 6 distinct parts.

By type, the board carries 7 resistors, 2 switches and 1 connector.

From the project

Pmod boards

部品(Item) | 内容 | 数量(Qauntity) --|--|-- チップ抵抗 | 1608 4.7K | 7 ロータリエンコーダ | ロータリエンコーダ プッシュSW付 | 1 ノブ | ロータリエンコーダ用ノブ | 1（オプション） スライドスイッチ | スライドスイッチ | 1 ピンヘッダ | アングル・ピンヘッダ(1x6) | 1

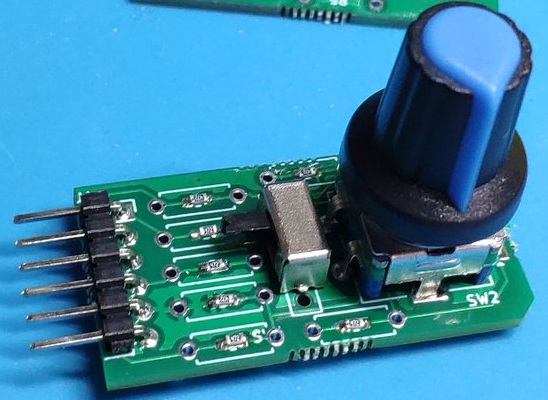

Pmod encoder, from the project README
From the project README

Pmod encoder bill of materials (BOM)

10 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TMS-103-02-L-S
~
Samtec
J1
1
SW_SPDT
SW1
1
RotaryEncoder_Switch
SW2
3
ERJ-2GE0R00X
4.7k
Panasonic
R1, R2, R6
2
ERJ-3GEY0R00V
4.7k
Panasonic
R3, R4
2
ERJ-2RKF1002X
4.7k
Panasonic
R5, R7

Pmod encoder design files

The KiCad project lives in the Lathe-Mariel/Pmod repository on GitHub; these links point at the commit this page was built from.

Pmod encoder: common questions

How big is the Pmod encoder PCB?

The Pmod encoder measures 39.1 × 19.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pmod encoder?

10 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pmod encoder design files?

From the Lathe-Mariel/Pmod repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pmod encoder design in my own project?

The repository has no license, so all rights stay with Lathe-Mariel. Use it as a reference, and ask the author before reusing the design.
