Pmod US Speaker
About the Pmod US Speaker PCB

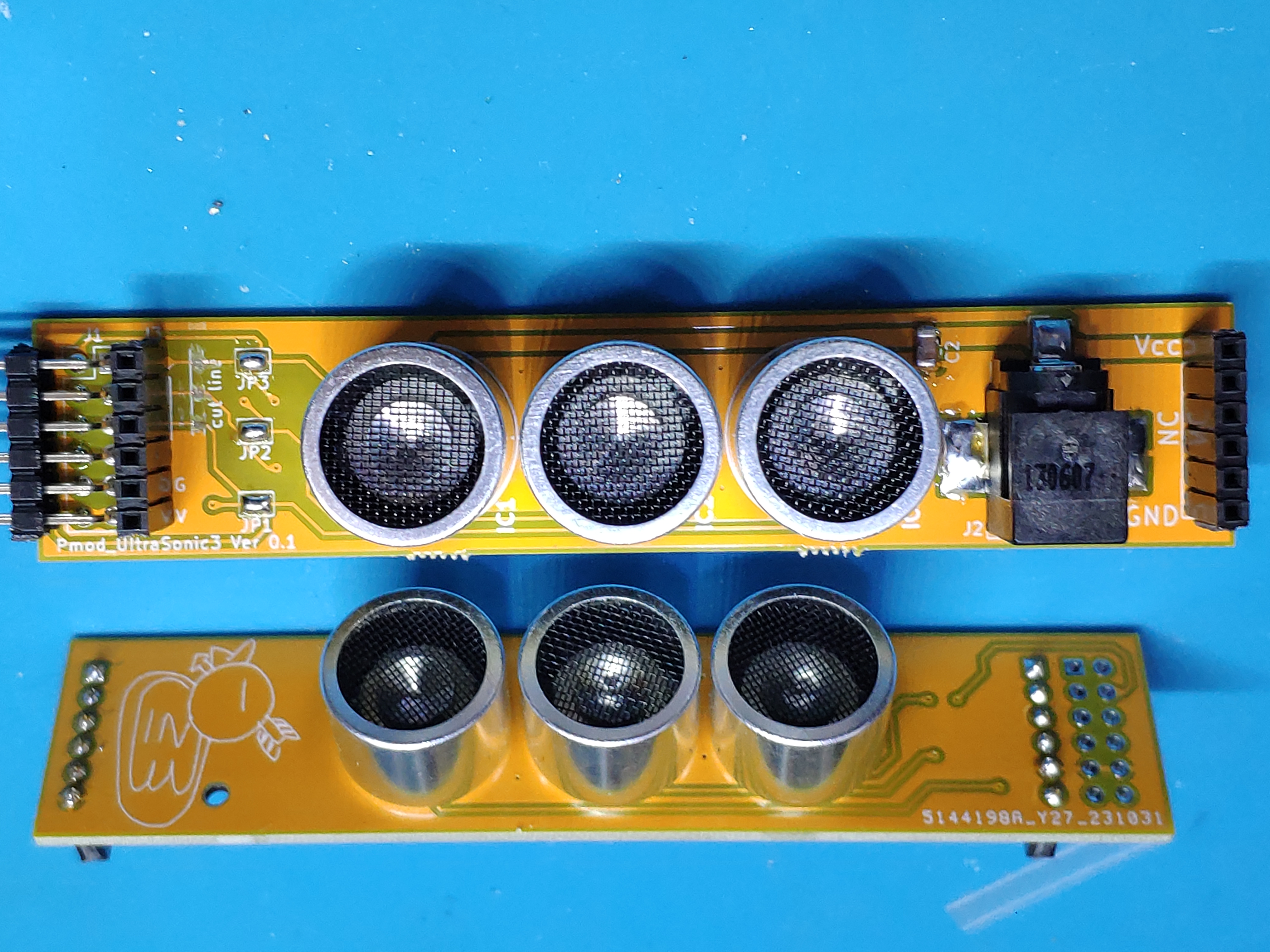

Pmod US Speaker is an open source PCB design by Lathe-Mariel, published on GitHub. It is a 2-layer board measuring 99.3 × 20.3 mm, with 16 components from 10 distinct parts.
Other key parts include the IR4427STRPBF and CUSA-T80-18-2400-TH. By type, the board carries 6 ICs, 4 capacitors, 3 connectors and 3 jumpers.
It belongs with the audio designs in this gallery.
From the project
Pmod boards
部品 | 説明 | 数量 ---|---|--- double pin header | Pmod header | 1 IR4428 | Gate Driver IC | 3 DC Jack(SMD) | DC Jack for driving speaker | 1 1608mm SMD Capaciter | chip capaciter 0.1μF V25 | 3 2012mm SMD Capaciter | chip capaciter 10μF V25 | 1
Main components on the Pmod US Speaker
Pmod US Speaker bill of materials (BOM)
16 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | IR4427STRPBF | SOIC127P600X175-8N | IC1, IC2, IC3 |
| 3 | CUSA-T80-18-2400-TH | CUSAT80182400TH | U1, U2, U3 |
| 1 | TMS-103-02-L-S Pmod_Header Samtec | PinHeader_2x06_P2.54mm_Vertical | J1 |
| 1 | TMS-103-02-L-S Barrel_Jack_Switch Samtec | BarrelJack_CUI_PJ-036AH-SMT_Horizontal | J2 |
| 1 | TMS-112-02-L-S Conn_01x03 Samtec | PinHeader_1x03_P2.54mm_Vertical | J3 |
| 2 | SSC02SYAN SolderJumper_2_Open Sullins | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP1, JP2 |
| 1 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP3 |
| 1 | CL10A106MP8NNNC 0.1u Samsung | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
| 1 | 4.7u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2 |
| 2 | 0.1u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C3, C5 |
Pmod US Speaker design files
The KiCad project lives in the Lathe-Mariel/Pmod repository on GitHub; these links point at the commit this page was built from.
Pmod US Speaker: common questions
How big is the Pmod US Speaker PCB?
The Pmod US Speaker measures 99.3 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pmod US Speaker?
16 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pmod US Speaker design files?
From the Lathe-Mariel/Pmod repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pmod US Speaker design in my own project?
The repository has no license, so all rights stay with Lathe-Mariel. Use it as a reference, and ask the author before reusing the design.
