Pmod PLED
About the Pmod PLED PCB
Pmod PLED is an open source PCB design by Lathe-Mariel, published on GitHub. It is a 2-layer board measuring 74.5 × 20.3 mm, with 9 components from 9 distinct parts.
Other key parts include the TBD62064APG and AMS1117-3.3. By type, the board carries 3 connectors, 2 ICs, 2 diodes and 2 capacitors.

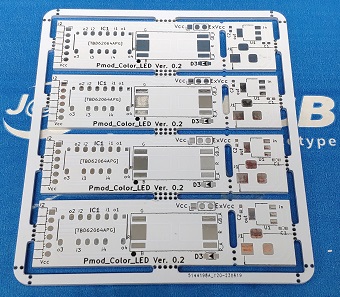

From the project
Pmod boards
Main components on the Pmod PLED
Pmod PLED bill of materials (BOM)
9 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TBD62064APG | DIP762W60P254L1975H445Q16N | IC1 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U1 |
| 1 | TMS-103-02-L-S Barrel_Jack_Switch Samtec | BarrelJack_Horizontal | J1 |
| 1 | TMS-103-02-L-S Conn_01x06_Pin Samtec | Pmod6 | J2 |
| 1 | TMS-112-02-L-S Conn_01x03_Pin Samtec | PinHeader_1x03_P2.54mm_Vertical | J3 |
| 1 | EP204K-150G1R1B1-CA | EP204-150G1R1B1-CA | D1 |
| 1 | SS2040FL | SODFL3618X108N | D3 |
| 1 | CL10A106MP8NNNC 0.1u Samsung | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
| 1 | 0.1u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2 |
Pmod PLED design files
The KiCad project lives in the Lathe-Mariel/Pmod repository on GitHub; these links point at the commit this page was built from.
Pmod PLED: common questions
How big is the Pmod PLED PCB?
The Pmod PLED measures 74.5 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pmod PLED?
9 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pmod PLED design files?
From the Lathe-Mariel/Pmod repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pmod PLED design in my own project?
The repository has no license, so all rights stay with Lathe-Mariel. Use it as a reference, and ask the author before reusing the design.
