A4988 Pmod
About the A4988 Pmod PCB
A4988 Pmod is an open source PCB design by Lathe-Mariel, published on GitHub. It is a 2-layer board measuring 47.2 × 24.4 mm, with 6 components from 6 distinct parts.
Other key parts include the A4988 MODULE. By type, the board carries 4 connectors, 1 IC and 1 capacitor.
It belongs with the robotics & motion designs in this gallery.

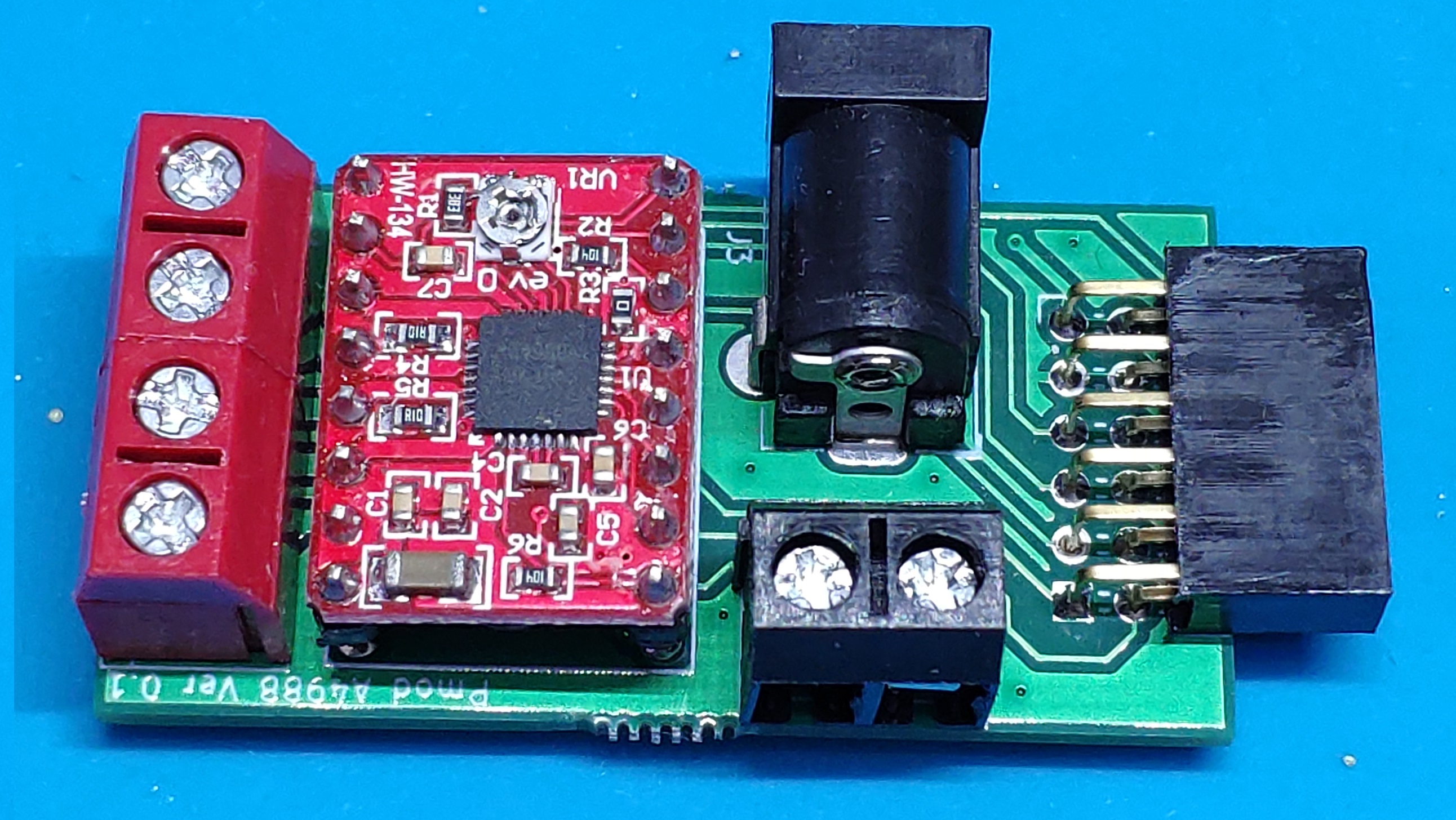

From the project
Pmod boards
Main components on the A4988 Pmod
A4988 Pmod bill of materials (BOM)
6 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | A4988 MODULE A4988_MODULE | A4988MODULE | U1 |
| 1 | TMS-103-02-L-S Pmod_male Samtec Inc. | PinHeader_2x06_P2.54mm_Horizontal | J1 |
| 1 | TMS-103-02-L-S Screw_Terminal_01x04 Samtec | TerminalBlock_bornier-4_P5.08mm | J2 |
| 1 | TMS-112-02-L-S Jack-DC Samtec | BarrelJack_Horizontal | J3 |
| 1 | TMS-112-02-L-S Screw_Terminal_01x02 Samtec | TerminalBlock_bornier-2_P5.08mm | J4 |
| 1 | CL10A106MP8NNNC C_Polarized Samsung | CP_Radial_D5.0mm_P2.50mm | C1 |
A4988 Pmod design files
The KiCad project lives in the Lathe-Mariel/Pmod repository on GitHub; these links point at the commit this page was built from.
A4988 Pmod: common questions
How big is the A4988 Pmod PCB?
The A4988 Pmod measures 47.2 × 24.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the A4988 Pmod?
6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the A4988 Pmod design files?
From the Lathe-Mariel/Pmod repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the A4988 Pmod design in my own project?
The repository has no license, so all rights stay with Lathe-Mariel. Use it as a reference, and ask the author before reusing the design.
