Pmod 7LED 8digit
About the Pmod 7LED 8digit PCB
Pmod 7LED 8digit is an open source PCB design by Lathe-Mariel, published on GitHub. It is a 2-layer board measuring 99.6 × 20.3 mm, with 15 components from 8 distinct parts.
Other key parts include the 74HC595. By type, the board carries 8 resistors, 2 ICs, 2 capacitors and 1 connector.

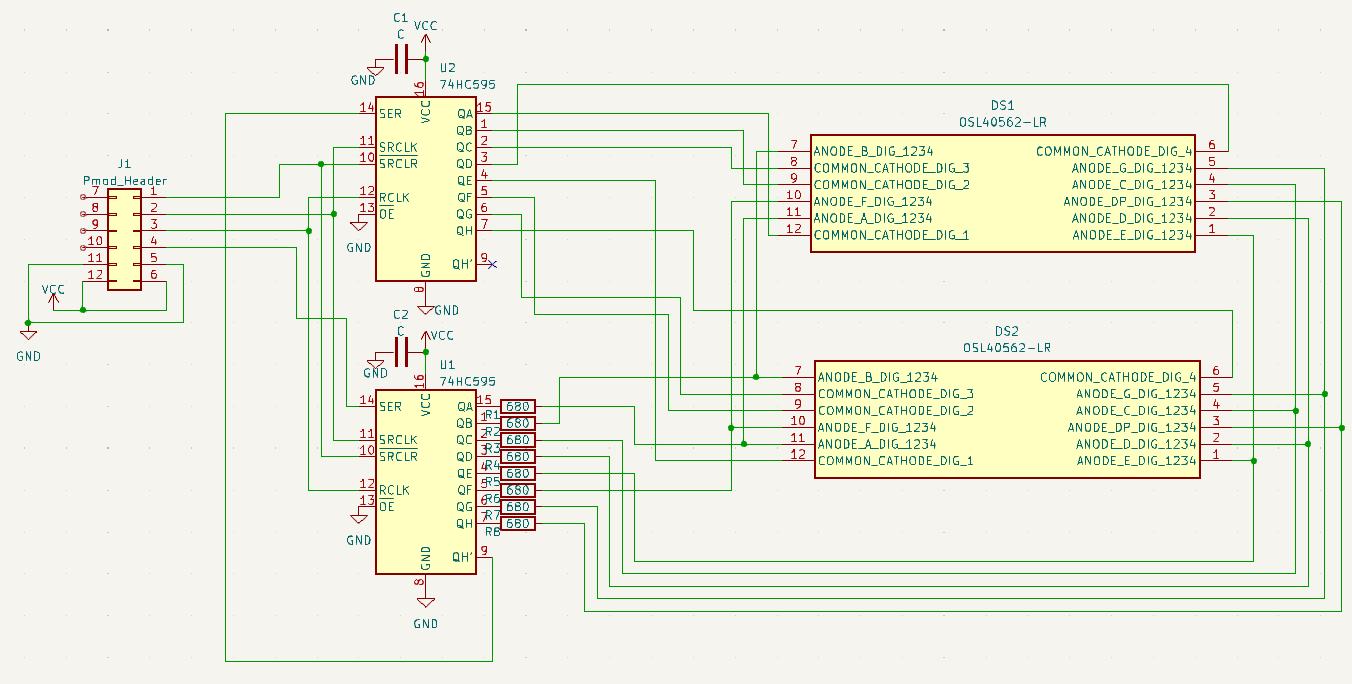

From the project
Pmod boards
部品 | 説明 | 数量 ---|---|--- angle double pin header | Pmod header | 1 74HC595 | shift register | 2 OSL40562-ARA | 7seg LED x 4digit | 2 0603 SMD Register | chip register 680Ω | 8 0603 SMD Capaciter | chip capaciter 10μF | 2
Main components on the Pmod 7LED 8digit
Pmod 7LED 8digit bill of materials (BOM)
15 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74HC595 | SOIC-16W_5.3x10.2mm_P1.27mm | U1, U2 |
| 1 | TMS-103-02-L-S Pmod_Header Samtec | Pmod | J1 |
| 2 | OSL40562-LR | DIPS1524W50P254L5030H825Q12N | DS1, DS2 |
| 1 | CL10A106MP8NNNC C Samsung | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
| 1 | C | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2 |
| 4 | ERJ-2GE0R00X 680 Panasonic | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R6, R8 |
| 2 | ERJ-3GEY0R00V 680 Panasonic | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3, R4 |
| 2 | ERJ-2RKF1002X 680 Panasonic | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5, R7 |
Pmod 7LED 8digit design files
The KiCad project lives in the Lathe-Mariel/Pmod repository on GitHub; these links point at the commit this page was built from.
Pmod 7LED 8digit: common questions
How big is the Pmod 7LED 8digit PCB?
The Pmod 7LED 8digit measures 99.6 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pmod 7LED 8digit?
15 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pmod 7LED 8digit design files?
From the Lathe-Mariel/Pmod repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pmod 7LED 8digit design in my own project?
The repository has no license, so all rights stay with Lathe-Mariel. Use it as a reference, and ask the author before reusing the design.
