Pmod Matrix2

Lathe-Mariel·Pmod·Pmod_Matrix2/Pmod_Matrix2.kicad_pcb

Pmod Matrix2 PCB layout, top view — open source board by Lathe-Mariel

About the Pmod Matrix2 PCB

Pmod Matrix2 is an open source PCB design by Lathe-Mariel, published on GitHub. It is a 6-layer board measuring 48.6 × 28.5 mm, with 24 components from 9 distinct parts.

Other key parts include the 74HC595 and LTP12188M. By type, the board carries 16 resistors, 4 ICs, 3 capacitors and 1 connector.

From the project

Pmod boards

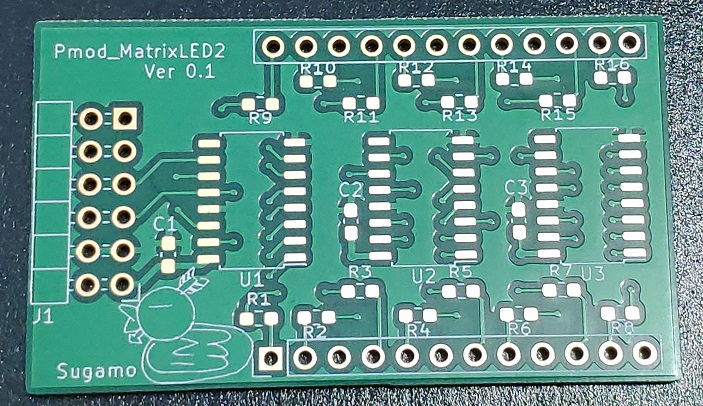

Pmod Matrix2, from the project README
From the project README

Main components on the Pmod Matrix2

74HC595LTP12188M

Pmod Matrix2 bill of materials (BOM)

24 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
3
74HC595
U1, U2, U3
1
LTP12188M
U4
1
67996-412HLF
pmod
Amphenol ICC (FCI)
J1
1
CL10A106MP8NNNC
C
Samsung
C1
2
C
C2, C3
5
ERJ-2GE0R00X
22
Panasonic
R1, R2, R6, R8, R9
2
ERJ-3GEY0R00V
22
Panasonic
R3, R4
7
ERJ-2RKF1002X
22
Panasonic
R5, R7, R10, R11, R12, R13, R14
2
22
R15, R16

Pmod Matrix2 design files

The KiCad project lives in the Lathe-Mariel/Pmod repository on GitHub; these links point at the commit this page was built from.

Pmod Matrix2: common questions

How big is the Pmod Matrix2 PCB?

The Pmod Matrix2 measures 48.6 × 28.5 mm, has 6 copper layers and is 7.78 mm thick.

How many components are on the Pmod Matrix2?

24 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pmod Matrix2 design files?

From the Lathe-Mariel/Pmod repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pmod Matrix2 design in my own project?

The repository has no license, so all rights stay with Lathe-Mariel. Use it as a reference, and ask the author before reusing the design.
