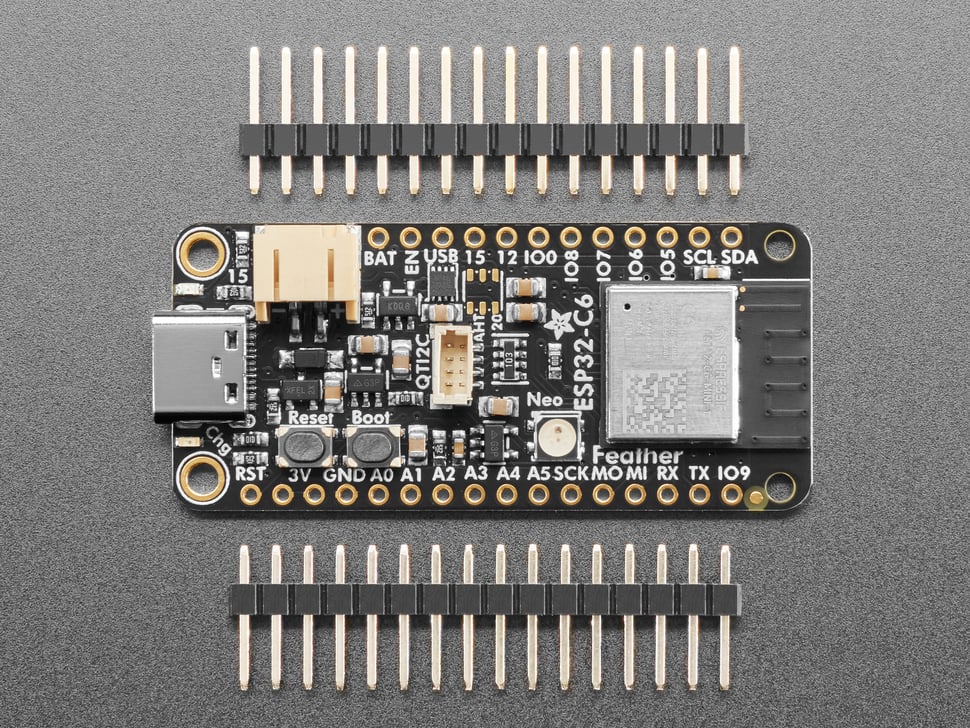

Adafruit Feather ESP32-C6
About the Adafruit Feather ESP32-C6 PCB
Adafruit Feather ESP32-C6 is an open source ESP32 PCB design by lenaschimmel, published on GitHub. It is a 4-layer board measuring 51.7 × 29.5 mm, with 114 components from 100 distinct parts.
Its main chip is the SI3456DDV-T1-BE3, from the ESP32 family. Other key parts include the ESP32-C6-MINI_MINI, SN74AHCT245PWR, 24AA025E48T-I/OT, 74LVC1G32SE and AP2112/RT9080-3.3. By type, the board carries 10 capacitors, 10 resistors, 9 ICs, 3 crystals, 2 connectors and 2 jumpers.
It belongs with the iot & wireless, power & battery and dev boards & breakouts designs in this gallery.
From the project
Die beste Lampe
At the beginning, it was only a port of the EagleCAD schematic and board layout to KiCad.
With time, it will deviate further from the original design, with these primary development goals: - [x] Better signal integrity and EMI, by using: - [x] Proper ground planes, using 4 instead of 2 layers - [x] More ground pins - [ ] Reduced production cost by removing some components - [ ] LiPo battery charger / monitor and connector - [ ] NeoPixel - [ ] Changes to the power pins to better support different directions of power distribution (from USB to Wing, or from the Wing)
Main components on the Adafruit Feather ESP32-C6
Adafruit Feather ESP32-C6 bill of materials (BOM)
114 components, 100 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-C6-MINI_MINI | ESP32-PICO-MINI | U1 |
| 1 | SN74AHCT245PWR AP2112/RT9080-3.3 | SOT23-5 | U2 |
| 1 | 24AA025E48T-I/OT MCP73831T-2ACI/OT | SOT23-5 | U3 |
| 1 | 74LVC1G32SE AHT20-F | LONGAN-IC_SNR6-1.0-3X3X1MM | U4 |
| 1 | AP2112/RT9080-3.3 | SOT23-5 | U5 |
| 1 | — | PCBFEAT-REV-040 | U$14 |
| 1 | — | ADAFRUIT_2.5MM | U$26 |
| 1 | — | ADAFRUIT_5MM | U$48 |
| 1 | — | STEMMAQT | U$53 |
| 1 | SI3456DDV-T1-BE3 DMG3415U | SOT23-R | Q3 |
| 1 | JSTPH | JSTPH2_BATT | X1 |
| 1 | MAX17048/T | TDFN8_2X2MM | X2 |
| 1 | USB C | USB_C_CUSB31-CFM2AX-01-X | X3 |
| 1 | SFW20S-2STE1LF Conn_01x10_Pin | PinHeader_1x10_P2.54mm_Vertical | J1 |
| 1 | Conn_01x10_Pin | PinHeader_1x10_P2.54mm_Vertical | J2 |
| 2 | — | @HOLE0, @HOLE1 | |
| 1 | JST SH | JST_SH4_RA | CONN1 |
| 1 | HEADER-1X16ROUND | 1X16_ROUND | JP1 |
| 1 | HEADER-1X12 | 1X12_ROUND | JP3 |
| 1 | — | PLABEL0 | PLABEL0 |
Show 80 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | — | PLABEL1 | PLABEL1 |
| 1 | — | PLABEL2 | PLABEL2 |
| 1 | — | PLABEL4 | PLABEL4 |
| 1 | — | PLABEL5 | PLABEL5 |
| 1 | — | PLABEL6 | PLABEL6 |
| 1 | — | PLABEL7 | PLABEL7 |
| 1 | — | PLABEL8 | PLABEL8 |
| 1 | — | PLABEL9 | PLABEL9 |
| 1 | — | PLABEL10 | PLABEL10 |
| 1 | — | PLABEL11 | PLABEL11 |
| 1 | — | PLABEL12 | PLABEL12 |
| 1 | — | PLABEL13 | PLABEL13 |
| 1 | — | PLABEL14 | PLABEL14 |
| 1 | — | PLABEL15 | PLABEL15 |
| 1 | — | PLABEL16 | PLABEL16 |
| 1 | — | PLABEL17 | PLABEL17 |
| 1 | — | PLABEL18 | PLABEL18 |
| 1 | — | PLABEL19 | PLABEL19 |
| 1 | — | PLABEL20 | PLABEL20 |
| 1 | — | PLABEL21 | PLABEL21 |
| 1 | — | PLABEL22 | PLABEL22 |
| 1 | — | PLABEL23 | PLABEL23 |
| 1 | — | PLABEL24 | PLABEL24 |
| 1 | — | PLABEL25 | PLABEL25 |
| 1 | — | PLABEL26 | PLABEL26 |
| 1 | — | PLABEL27 | PLABEL27 |
| 1 | — | PLABEL28 | PLABEL28 |
| 1 | — | PLABEL29 | PLABEL29 |
| 1 | — | PLABEL30 | PLABEL30 |
| 1 | — | PLABEL31 | PLABEL31 |
| 1 | — | PLABEL32 | PLABEL32 |
| 1 | — | PLABEL33 | PLABEL33 |
| 1 | — | PLABEL34 | PLABEL34 |
| 1 | — | PLABEL35 | PLABEL35 |
| 1 | — | PLABEL36 | PLABEL36 |
| 1 | — | PLABEL37 | PLABEL37 |
| 1 | — | PLABEL38 | PLABEL38 |
| 1 | — | PLABEL39 | PLABEL39 |
| 1 | — | PLABEL40 | PLABEL40 |
| 1 | — | PLABEL41 | PLABEL41 |
| 1 | — | PLABEL42 | PLABEL42 |
| 1 | — | PLABEL43 | PLABEL43 |
| 1 | — | PLABEL44 | PLABEL44 |
| 1 | — | PLABEL45 | PLABEL45 |
| 1 | — | PLABEL46 | PLABEL46 |
| 1 | — | PLABEL47 | PLABEL47 |
| 1 | — | PLABEL48 | PLABEL48 |
| 1 | — | PLABEL49 | PLABEL49 |
| 1 | — | PLABEL51 | PLABEL51 |
| 1 | — | PLABEL52 | PLABEL52 |
| 1 | — | PLABEL53 | PLABEL53 |
| 1 | — | PLABEL54 | PLABEL54 |
| 1 | — | PLABEL55 | PLABEL55 |
| 1 | — | PLABEL56 | PLABEL56 |
| 1 | — | PLABEL57 | PLABEL57 |
| 1 | — | PLABEL58 | PLABEL58 |
| 1 | — | PLABEL59 | PLABEL59 |
| 1 | — | PLABEL60 | PLABEL60 |
| 1 | — | PLABEL61 | PLABEL61 |
| 1 | — | PLABEL62 | PLABEL62 |
| 1 | — | PLABEL63 | PLABEL63 |
| 1 | — | PLABEL64 | PLABEL64 |
| 1 | — | PLABEL65 | PLABEL65 |
| 1 | — | PLABEL66 | PLABEL66 |
| 1 | — | PLABEL67 | PLABEL67 |
| 1 | — | PLABEL68 | PLABEL68 |
| 1 | SOLDERJUMPERCLOSED | SOLDERJUMPER_CLOSEDWIRE | SJ1 |
| 2 | KMR2 | BTN_RKB2_4.6X2.8 | SW1, SW2 |
| 1 | ORANGE | CHIPLED_0603_NOOUTLINE | CHG0 |
| 1 | WS2812B_3535FULL | LED3535_FULLPADS | LED1 |
| 1 | RED | CHIPLED_0603_NOOUTLINE | D3 |
| 1 | MBR540 | SOD-123 | D4 |
| 2 | CL05B104KO5NNNC 10uF | 0805-NO | C1, C2 |
| 1 | VKME1301C102MV 1uF | 0603-NO | C4 |
| 5 | 10uF | 0805-NO | C6, C7, C8, C9, C11 |
| 1 | 1uF | 0603-NO | C10 |
| 1 | 10uF | _0805MP | C12 |
| 6 | RCWE1020R200FKEA 5.1K | 0603-NO | R1, R2, R4, R5, R8, R10 |
| 1 | RCWE1020R200FKEA 10K | RESPACK_4X0603 | R3 |
| 3 | RCWE1020R200FKEA 100K | 0603-NO | R6, R7, R12 |
Adafruit Feather ESP32-C6 design files
The KiCad project lives in the lenaschimmel/bestelampe repository on GitHub; these links point at the commit this page was built from.
Adafruit Feather ESP32-C6: common questions
What microcontroller does the Adafruit Feather ESP32-C6 use?
The Adafruit Feather ESP32-C6 is built around the SI3456DDV-T1-BE3, from the ESP32 family.
How big is the Adafruit Feather ESP32-C6 PCB?
The Adafruit Feather ESP32-C6 measures 51.7 × 29.5 mm, has 4 copper layers and is 0.8 mm thick.
How many components are on the Adafruit Feather ESP32-C6?
114 components, from 100 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Adafruit Feather ESP32-C6 design files?
From the lenaschimmel/bestelampe repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Adafruit Feather ESP32-C6 design in my own project?
The repository has no license, so all rights stay with lenaschimmel. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Adafruit Feather ESP32-C6 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
