BesteLampe! LED Moudule C PCB layout, top view — open source board by lenaschimmel
Simulate this board

About the BesteLampe! LED Moudule C PCB

BesteLampe! LED Moudule C is an open source PCB design by lenaschimmel, published on GitHub. It is a 4-layer board measuring 70 × 79.1 mm, with 59 components from 9 distinct parts.

Other key parts include the TMP1075DSG. By type, the board carries 29 connectors, 3 resistors, 1 IC and 1 capacitor.

It belongs with the sensors designs in this gallery.

From the project

Die beste Lampe

Note: This module cannot be attached directly to the Main Module v1. It needs a driver and/or adaptor that is not yet designed. See the section "Driver board" below.

This testing module leads both anode and cathode of all 25 LEDs to the circumference, so that any combination of LEDs can be put in series by some jumper wires. For a final production design, the LED series would be known in advance and hardwired internally without pin headers and jumper wires.

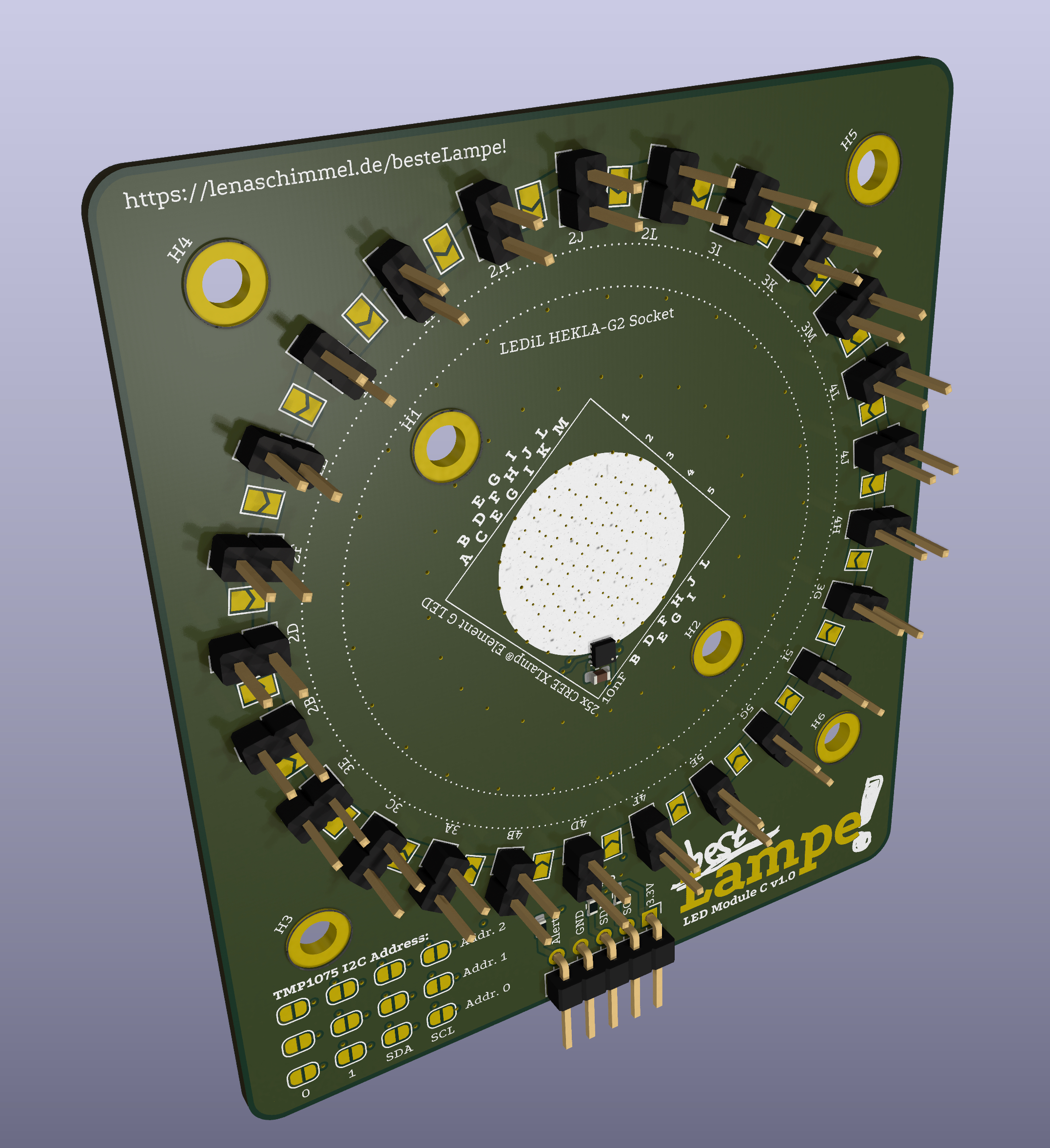

BesteLampe! LED Moudule C, from the project README
From the project README

Main components on the BesteLampe! LED Moudule C

TMP1075DSG

BesteLampe! LED Moudule C bill of materials (BOM)

59 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TMP1075DSG
U1
1
SFW20S-2STE1LF
Conn_01x02
J1
23
Conn_01x02
J2, J4, J5, J6, J7, J8, J9, J10 +15
1
9159008603906
Conn_01x02
J3
1
Conn_01x04_Pin
J26
3
Conn_01x05
J27, J28, J29
25
XEGAVT-H0-0000-000-000000K2001
~
D_1E1, D_1G1, D_1I1, D_2B1, D_2D1, D_2F1, D_2H1, D_2J1 +17
1
CL05B104KO5NNNC
0.01uF
C1
3
RCWE1020R200FKEA
5K
R1, R2, R3

BesteLampe! LED Moudule C design files

The KiCad project lives in the lenaschimmel/bestelampe repository on GitHub; these links point at the commit this page was built from.

BesteLampe! LED Moudule C: common questions

How big is the BesteLampe! LED Moudule C PCB?

The BesteLampe! LED Moudule C measures 70 × 79.1 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the BesteLampe! LED Moudule C?

59 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BesteLampe! LED Moudule C design files?

From the lenaschimmel/bestelampe repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BesteLampe! LED Moudule C design in my own project?

The repository has no license, so all rights stay with lenaschimmel. Use it as a reference, and ask the author before reusing the design.
