BesteLampe! ABL Controller Module

lenaschimmel·bestelampe·hardware/abl/controller/controller.kicad_pcb

BesteLampe! ABL Controller Module layout, top view — open source board by lenaschimmel
Simulate this board

About the BesteLampe! ABL Controller Module

BesteLampe! ABL Controller Module is an open source PCB design by lenaschimmel, published on GitHub. It is a 4-layer board measuring 56.5 × 124 mm, with 31 components from 18 distinct parts.

Other key parts include the TCA6408ARSVR, VEML6040A3OG, TXB0104RUT and INA219AxD. By type, the board carries 7 connectors, 7 capacitors, 5 ICs, 5 resistors, 4 test points and 2 transistors.

It belongs with the sensors designs in this gallery.

From the project

Die beste Lampe

It contains an RGB light sensor and connects to: - up to two human presence sensors - optional expansions via - I2C (Quiic / Stemma QT connector) - additional GPIOs

The feather spec is strict enough that every kind of Feather should be safe to plug in, e.g. fits mechanically and will not damage itself or other modules. The specific pin assignments of feathers are different though, and care has been taken to use the pins in a way that is at least compatible with all three ESP32-C6 feathers:

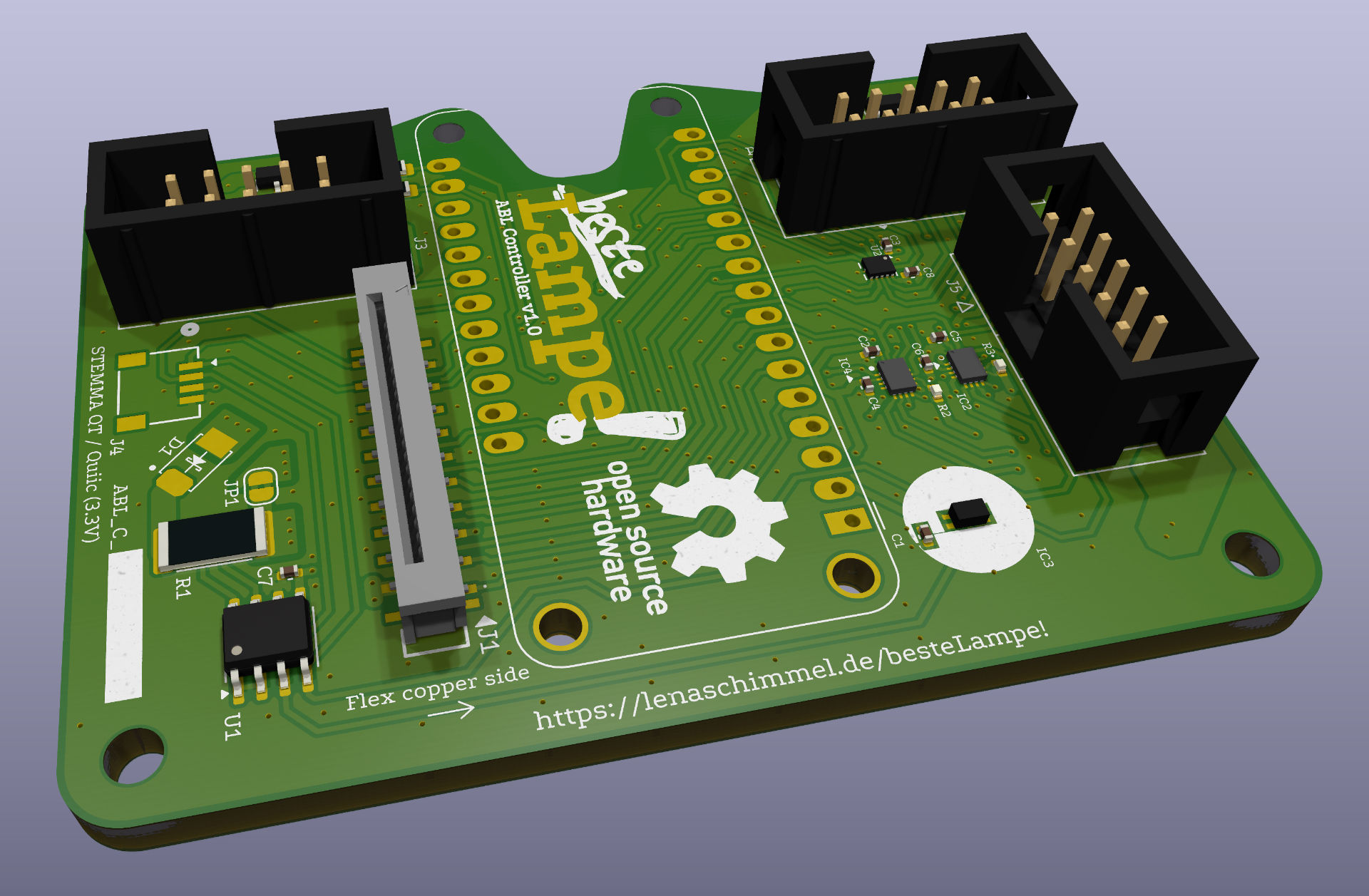

BesteLampe! ABL Controller Module, from the project README
From the project README

Main components on the BesteLampe! ABL Controller Module

TCA6408ARSVRVEML6040A3OGTXB0104RUTINA219AxD

BesteLampe! ABL Controller Module bill of materials (BOM)

31 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
TCA6408ARSVR
IC1, IC2
1
VEML6040A3OG
IC3
1
TXB0104RUT
IC4
1
INA219AxD
U1
2
SI3456DDV-T1-BE3
AO3401A
Q2, Q4
1
SFW20S-2STE1LF
J1
1
Conn_02x05_Odd_Even
J2
1
9159008603906
Conn_02x05_Odd_Even
J3
1
PRT-14417
J4
1
Conn_02x05_Odd_Even
J5
2
Conn_01x10_Pin
J6, J7
4
TestPoint
TP1, TP2, TP3, TP4
1
D_Schottky
D1
2
CL05B104KO5NNNC
100nF
C1, C3
5
100nF
C7, C8, C9, C11, C12
1
RCWE1020R200FKEA
R
R1
2
RCWE1020R200FKEA
4700R
R4, R5
2
RCWE1020R200FKEA
4700R
R6, R7

BesteLampe! ABL Controller Module design files

The KiCad project lives in the lenaschimmel/bestelampe repository on GitHub; these links point at the commit this page was built from.

BesteLampe! ABL Controller Module: common questions

How big is the BesteLampe! ABL Controller Module?

The BesteLampe! ABL Controller Module measures 56.5 × 124 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the BesteLampe! ABL Controller Module?

31 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BesteLampe! ABL Controller Module design files?

From the lenaschimmel/bestelampe repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BesteLampe! ABL Controller Module design in my own project?

The repository has no license, so all rights stay with lenaschimmel. Use it as a reference, and ask the author before reusing the design.
