BesteLampe! ABL Power Module

lenaschimmel·bestelampe·hardware/abl/power/power.kicad_pcb

BesteLampe! ABL Power Module layout, top view — open source board by lenaschimmel

About the BesteLampe! ABL Power Module

BesteLampe! ABL Power Module is an open source PCB design by lenaschimmel, published on GitHub. It is a 2-layer board measuring 110 × 80.4 mm, with 26 components from 19 distinct parts.

Other key parts include the AMS1117-3.3, TMP1075DGKR, INA219AIDR and 24AA025E48T-I/OT. By type, the board carries 8 capacitors, 4 ICs, 4 resistors, 3 connectors, 3 test points and 1 fuse.

It belongs with the sensors and power & battery designs in this gallery.

From the project

Die beste Lampe

The power module does not monitor its own sensors. The controller module should do this, and drive the LEDs in a way that does not exceed the current and temperature limits of the PS. The polyfuse also acts as a overheating protection, disconnecting the 230V AC at about 100°C. It may take several minutes to fully reset the fuse, so this should still be prevented by derating in software.

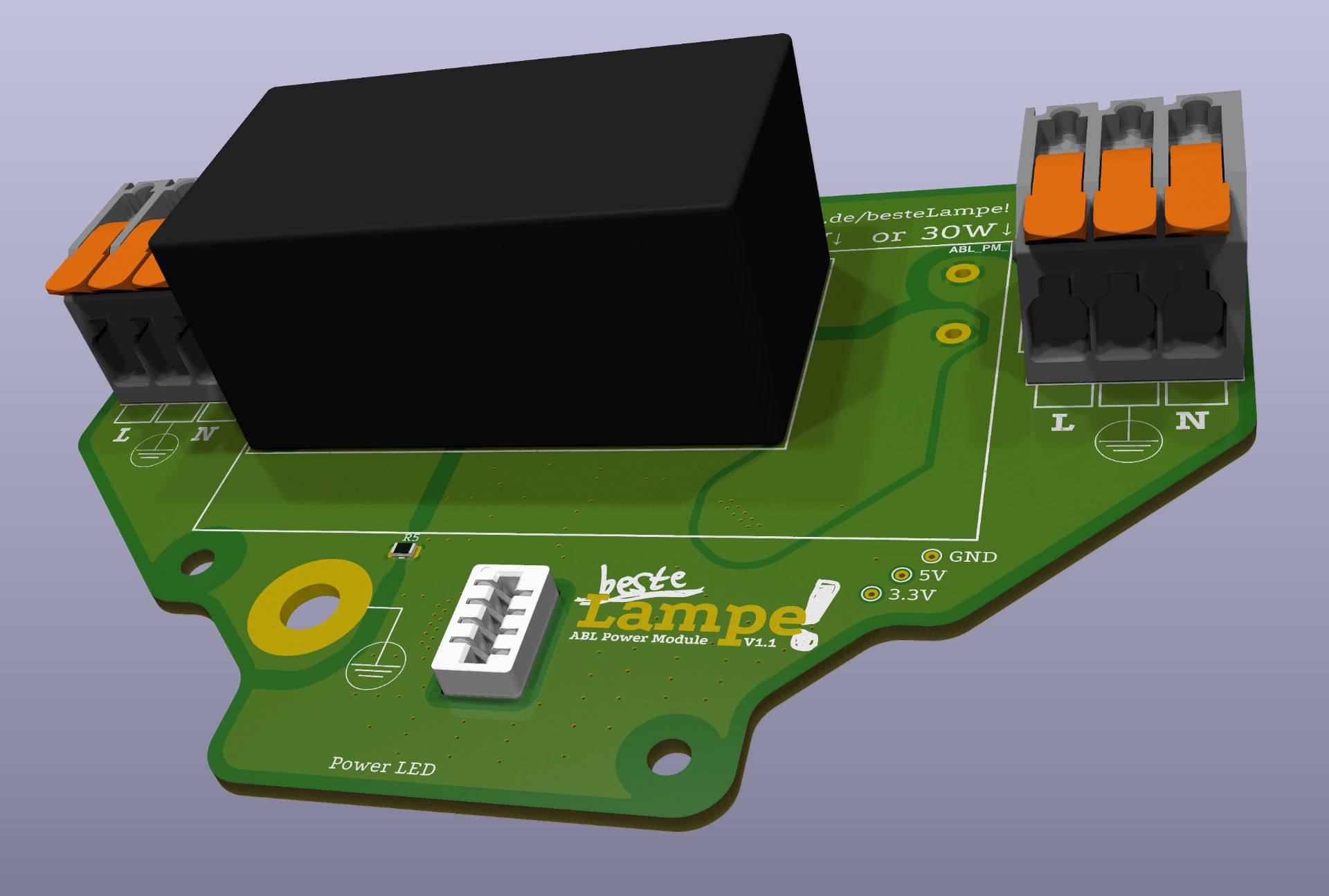

BesteLampe! ABL Power Module, from the project README
From the project README

Main components on the BesteLampe! ABL Power Module

AMS1117-3.3TMP1075DGKRINA219AIDR24AA025E48T-I/OT

BesteLampe! ABL Power Module bill of materials (BOM)

26 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
TWGMC AMS1117-3.3
U1
1
TMP1075DGKR
TMP1075D
U2
1
INA219AIDR
INA219AxD
U3
1
24AA025E48T-I/OT
U4
2
2604-1103
Terminal_01x03
J1, J2
1
009159008603906
J3
1
MF-RM040-240
F1
1
IRM-30-5
PS2
1
CL-140
TH1
3
TestPoint
TP1, TP2, TP3
1
XL-3210SURC
LED
D1
2
TAJB336K016RNJ
33uF
C1, C7
2
CL05A106MQ5NUNC
10u
C2, C4
2
CL05B104KO5NNNC
100n
C3, C5
1
CL10A105KB8NNNC
1uF
C6
1
100n
C8
1
0603WAF4700T5E
470R
R1
1
HoLLR2512-3W-2mR-1%
2mR
R2
2
0603WAF0000T5E
0R
R3, R4

BesteLampe! ABL Power Module design files

The KiCad project lives in the lenaschimmel/bestelampe repository on GitHub; these links point at the commit this page was built from.

BesteLampe! ABL Power Module: common questions

How big is the BesteLampe! ABL Power Module?

The BesteLampe! ABL Power Module measures 110 × 80.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BesteLampe! ABL Power Module?

26 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BesteLampe! ABL Power Module design files?

From the lenaschimmel/bestelampe repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BesteLampe! ABL Power Module design in my own project?

The repository has no license, so all rights stay with lenaschimmel. Use it as a reference, and ask the author before reusing the design.
