Lhc tijolo32 board

lhc·Hardware·nodeLHC-ESP32/projeto/lhc_tijolo32_board.kicad_pcb

Lhc tijolo32 board layout, top view — open source ESP32 board by lhc
Simulate this board

About the Lhc tijolo32 board

Lhc tijolo32 board is an open source ESP32 PCB design by lhc, published on GitHub. It is a 2-layer board measuring 24 × 84.5 mm, with 44 components from 33 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N16R2, from the ESP32 family. Other key parts include the TLV1117LV33DCYR, RAK3172-SIP, AP2112K-3.3 and Adafruit_Feather_Generic. By type, the board carries 19 capacitors, 7 resistors, 5 connectors, 4 ICs, 2 transistors and 2 crystals.

It belongs with the iot & wireless designs in this gallery.

From the project

Open Hardware respository from Laboratório Hacker de Campinas

LIVE em formato Hands On Construindo o nova versão da placa de desenvolvimento nodeLHC ESP32, com o Pedro Minatel, utilizando a ferramenta Kicad, o módulo escolhido foi o ESP32 um microcontrolador de baixo custo da Espressif.

Em 2015 durante as oficinas de IoT no Hackerspace, criamos uma primeira versão do nodeLHC com o módulo ESP8266. Assim as pessoas aprenderam as diferentes etapas para construção de placa de circuitos impressos, também soldagem dos componentes da placa de desenvolvimento e programação para o módulo.

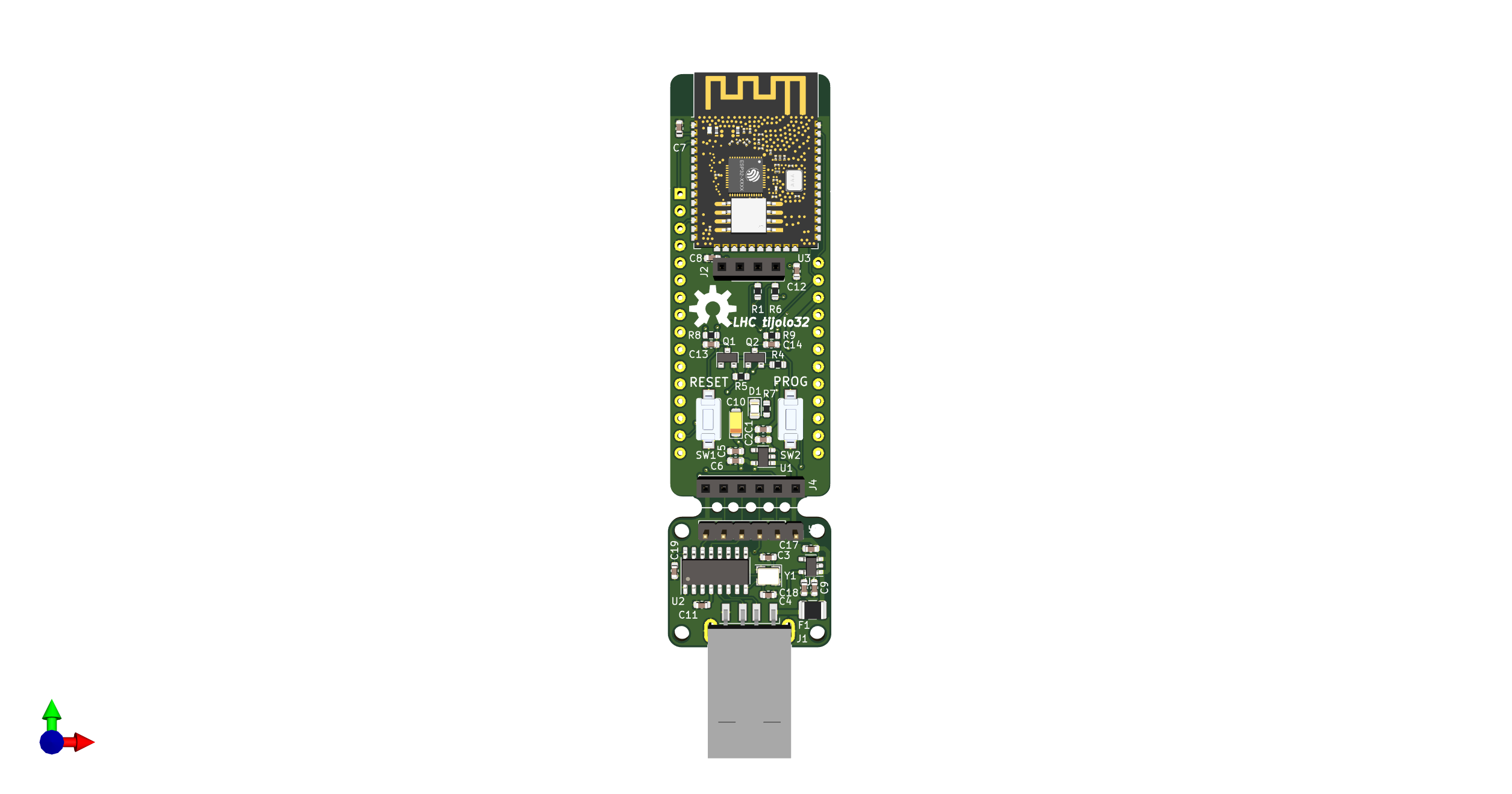

Lhc tijolo32 board, from the project README
From the project README

Main components on the Lhc tijolo32 board

ESP32-S3-WROOM-1-N16R2TLV1117LV33DCYRRAK3172-SIPAP2112K-3.3Adafruit_Feather_Generic

Lhc tijolo32 board bill of materials (BOM)

44 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1-N16R2
AP2112K-3.3
Espressif
U1
1
TLV1117LV33DCYR
CH340G
Texas Instruments
U2
1
RAK3172-SIP
ESP32-WROOM-32D
RAK
U3
1
AP2112K-3.3
U4
1
Adafruit_Feather_Generic
A1
2
MMBT3904
Q1, Q2
1
12MHz 10ppm
Y1
1
32k 20ppm
Y2
1
62000511121
USB_A
Wurth Elektronik
J1
1
Conn_01x04
J2
1
JTAG 10pin Connector
J3
2
Conn_01x06
J4, J5
1
1A PTC
F1
2
SW_Push
SW1, SW2
1
LED
D1
1
ZRB18AR61A106ME01L
1uF
Murata
C1
1
06033C104KAT2A
100nF
AVX
C2
3
100NF
?pF
KEMET, TDK
C3, C4, C16
1
CL10A105KO8NNND
1uF
Samsung
C5
1
CL10A105KO8NNND
100nF
Samsung
C6
Show 13 more
QtyPartRefs
4
100NF
100nF
KEMET, TDK
C7, C8, C14, C19
1
GRM155C71C105KE11J
1uF
Murata
C9
1
100NF
10uF
KEMET, TDK
C10
1
10nF
C11
1
100nF
C12
1
GRM155C71C105KE11J
100nF
Murata
C13
1
GRM155C71C105KE11J
?pF
Murata
C15
1
GRM155D80E475ME47J
100nF
Murata
C17
1
100NF
1uF
KEMET, TDK
C18
1
RC0603FR-07470RL
10kR
Yageo
R1
1
CRCW04020000Z0EDC
10kR
Vishay
R4
4
CRCW040210K0FKEDC
10kR
Vishay
R5, R6, R8, R9
1
CRCW040210K0FKEDC
1kR
Vishay
R7

Lhc tijolo32 board design files

The KiCad project lives in the lhc/Hardware repository on GitHub; these links point at the commit this page was built from.

Lhc tijolo32 board: common questions

What microcontroller does the Lhc tijolo32 board use?

The Lhc tijolo32 board is built around the ESP32-S3-WROOM-1-N16R2, from the ESP32 family.

How big is the Lhc tijolo32 board?

The Lhc tijolo32 board measures 24 × 84.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lhc tijolo32 board?

44 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Lhc tijolo32 board design files?

From the lhc/Hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Lhc tijolo32 board design in my own project?

The repository has no license, so all rights stay with lhc. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Lhc tijolo32 board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
