XSense

lithiumice·XTerminal·1.Hardware/Xtermianl-280x240-Kicad6/XSense.kicad_pcb

XSense PCB layout, top view — open source RP2040/RP2350 board by lithiumice

About the XSense PCB

XSense is an open source RP2040/RP2350 PCB design by lithiumice, published on GitHub. It is a 4-layer board measuring 30.8 × 46.9 mm, with 74 components from 34 distinct parts.

Its main chip is the ESP32-PICO-D4, from the RP2040/RP2350 family. Other key parts include the ICM-20602, USBC, MIC5219-3.3YM5, MCP73831-2-OT and CH9102. By type, the board carries 29 resistors, 16 capacitors, 10 ICs, 7 diodes, 6 transistors and 3 switches.

It belongs with the iot & wireless designs in this gallery.

From the project

a multi functional embedded device based on esp32，integrated with music player，weather，clock，Arduboy games，etc

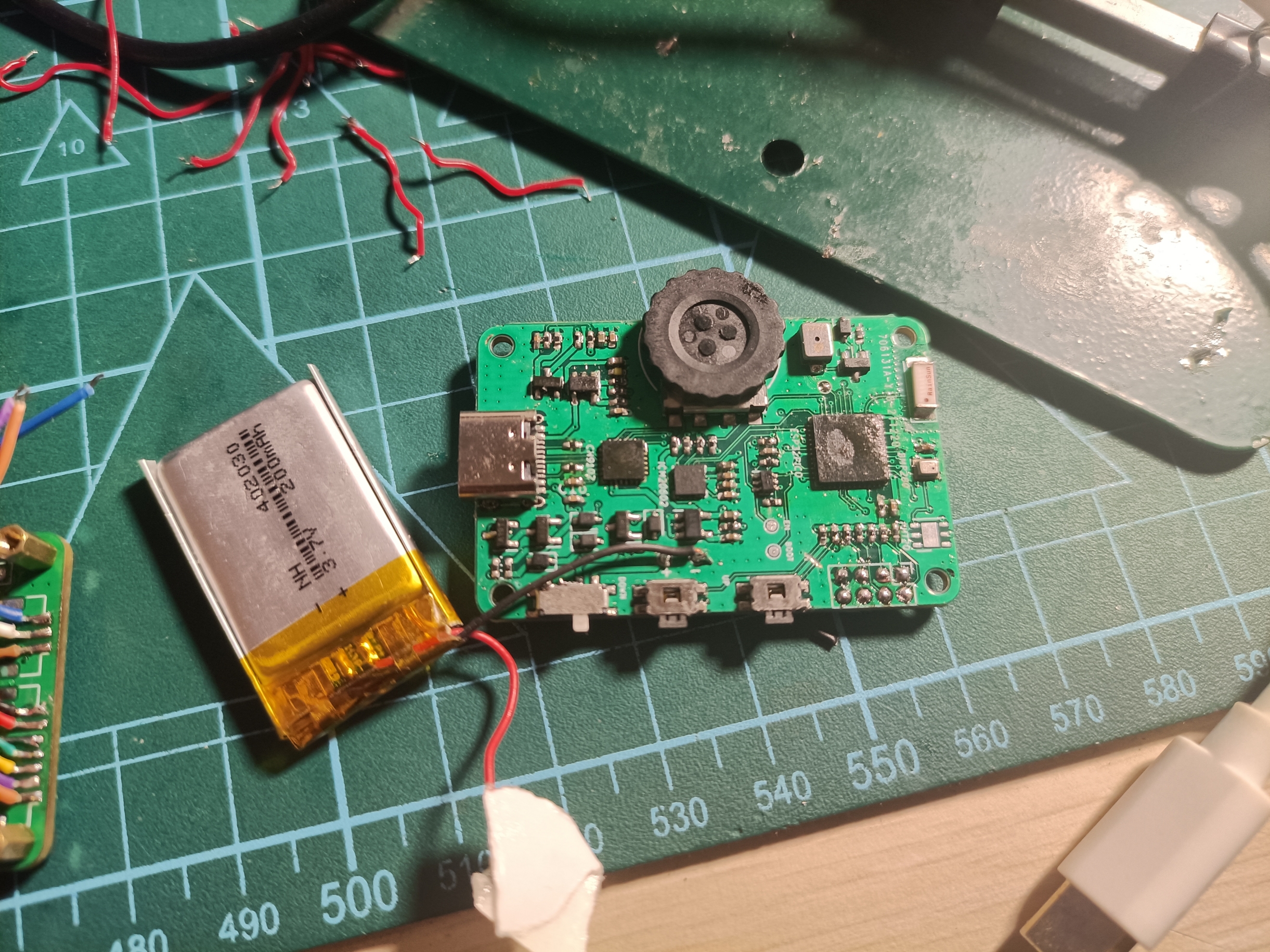

XSense, from the project README
From the project README

Main components on the XSense

ESP32-PICO-D4ICM-20602USBCMIC5219-3.3YM5MCP73831-2-OTCH9102LCDSIQ-02FVS3_1BMP280AHT20

XSense bill of materials (BOM)

74 components, 34 distinct parts.

QtyPartRefs
1
ESP32-PICO-D4
U1
1
ICM-20602
U2
1
USBC
U3
1
MIC5219-3.3YM5
U4
1
MCP73831-2-OT
U5
1
CH9102
U6
1
LCD
U7
1
SIQ-02FVS3_1
U8
1
BMP280
U9
1
AHT20
U10
3
AO3400 Q_NMOS_GSD
Q1, Q3, Q6
2
AO3401 Q_PMOS_GSD
Q2, Q4
1
BC847BS
Q5
1
Conn_01x07
J2
1
Antenna
AE1
1
Buzzer
BZ1
1
SW_Push_SPDT
SW1
2
SW_Push
SW4, SW5
5
D_Small
D1, D2, D3, D5, D6
1
LED_Small
D4
Show 14 more
QtyPartRefs
1
WS2812B
D7
8
100nF
C1, C3, C5, C11, C13, C14, C15, C16
4
10uF
C2, C7, C9, C10
2
10nF
C4, C8
1
1uF
C6
1
0.1uF
C12
19
10K
R1, R5, R7, R9, R11, R12, R16, R17 +11
2
20K
R2, R3
1
0R
R4
1
2K
R6
1
1K
R8
2
5.1K
R10, R13
2
100K
R14, R15
1
10R
R20

XSense design files

The KiCad project lives in the lithiumice/XTerminal repository on GitHub; these links point at the commit this page was built from.

XSense: common questions

What microcontroller does the XSense use?

The XSense is built around the ESP32-PICO-D4, from the RP2040/RP2350 family.

How big is the XSense PCB?

The XSense measures 30.8 × 46.9 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the XSense?

74 components, from 34 distinct parts. The full bill of materials is listed on this page.

Where can I download the XSense design files?

From the lithiumice/XTerminal repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the XSense design in my own project?

The repository has no license, so all rights stay with lithiumice. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the XSense without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
