Ethernet W5500 mini Click
About the Ethernet W5500 mini Click PCB
Ethernet W5500 mini Click is an open source PCB design by michpro, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 25.4 × 42.9 mm, with 3 components from 3 distinct parts.
By type, the board carries 1 module, 1 diode and 1 resistor.
From the project
Collection of add-on boards in mikroBUS™ standard
- Ethernet W5500 mini Click - Overview - Features - Hardware Description - Schematic diagram - Module visualisation - Assembly - Production files - Reporting bugs - License - Support

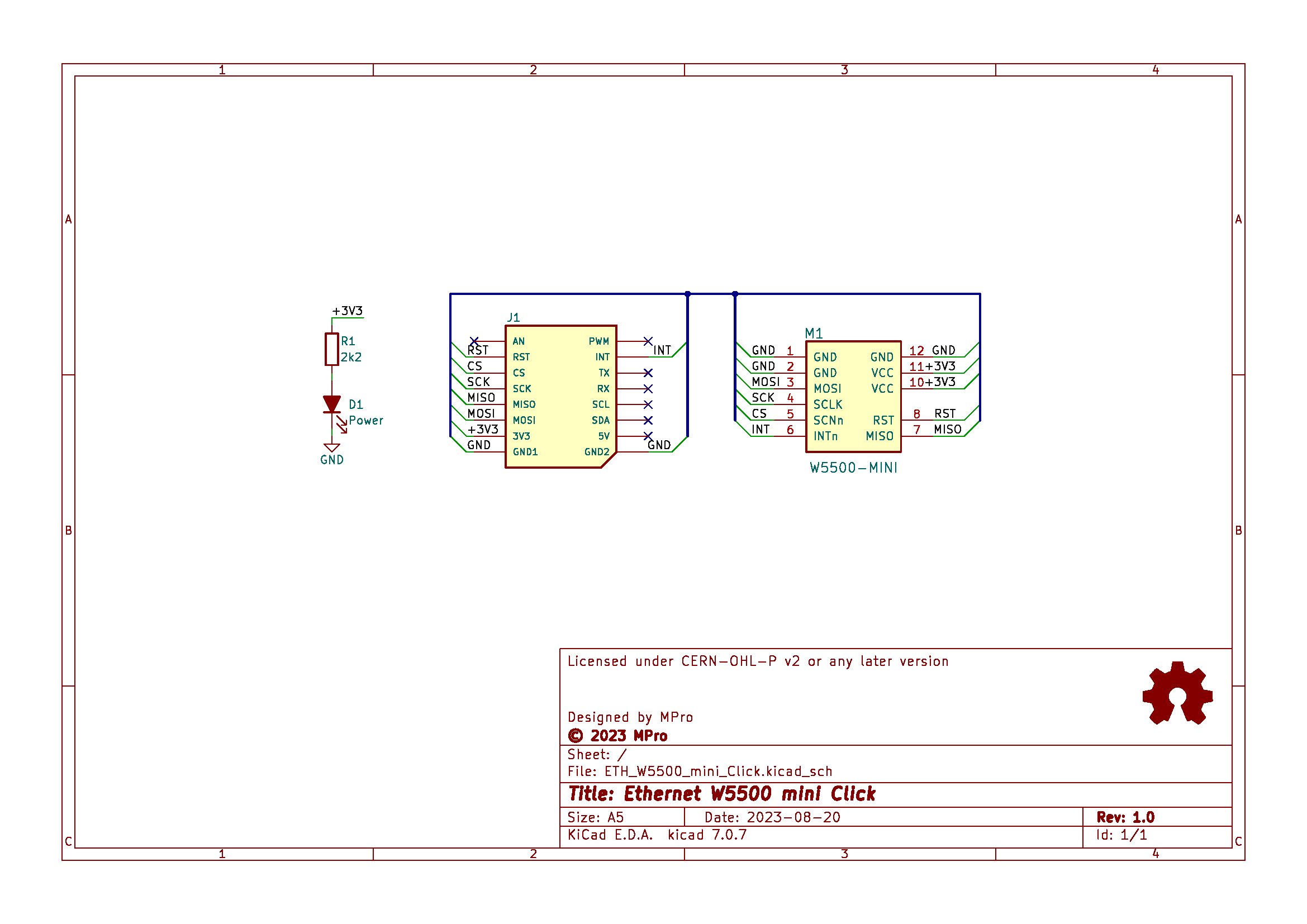

The W5500-MINI module is connected to the mikroBUS™ connector via SPI lines (MOSI, MISO, SCK, CS) and additional control lines (RST, INT). Power (+3.3V) and ground connections are also made through the mikroBUS™ connector.
Ethernet W5500 mini Click bill of materials (BOM)
3 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | W5500-MINI | W5500-MINI | M1 |
| 1 | C2296 Power | LED_0805_2012Metric | D1 |
| 1 | 2K2 2k2 | R_0805_2012Metric | R1 |
Ethernet W5500 mini Click design files
The KiCad project lives in the michpro/mikroBUS repository on GitHub; these links point at the commit this page was built from.
Ethernet W5500 mini Click: common questions
How big is the Ethernet W5500 mini Click PCB?
The Ethernet W5500 mini Click measures 25.4 × 42.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ethernet W5500 mini Click?
3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Ethernet W5500 mini Click design files?
From the michpro/mikroBUS repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Ethernet W5500 mini Click design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which michpro chose for the repository.
