Arduino UNO Click shield
About the Arduino UNO Click shield
Arduino UNO Click shield is an open source PCB design by michpro, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 68.6 × 53.3 mm, with 12 components from 9 distinct parts.
Other key parts include the PY32F030F18P6TU. By type, the board carries 4 resistors, 3 connectors, 2 jumpers, 2 capacitors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Collection of add-on boards in mikroBUS™ standard

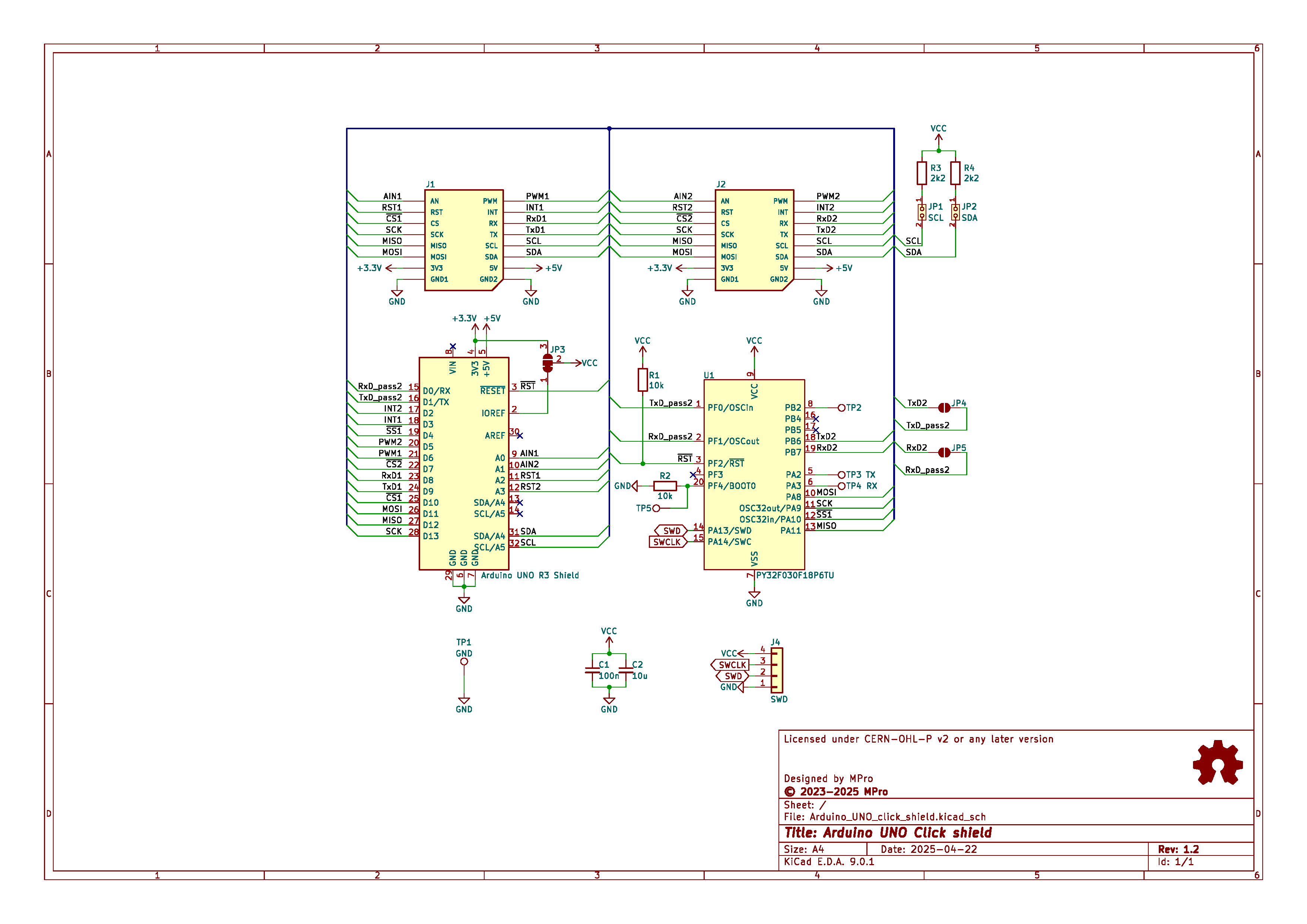

- Arduino UNO Click Shield - Overview - Supported boards - Features - Configuration Jumpers - JP3: VCC Selection - JP1 and JP2: I²C Configuration - JP4 and JP5: UART Configuration - Schematic diagram - Module visualisation - Assembly - Production files - Reporting bugs - License - Hardware - Software - Support
Main components on the Arduino UNO Click shield
Arduino UNO Click shield bill of materials (BOM)
12 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PY32F030F18P6TU | TSSOP-20_4.4x6.5mm_P0.65mm | U1 |
| 2 | C429957 mikroBUS host connector | mikroBUS_host_connector | J1, J2 |
| 1 | C19190478 SWD | PinHeader_1x04_P2.54mm_Horizontal | J4 |
| 1 | C27985187 SCL | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 1 | C27985187 SDA | PinHeader_1x02_P2.54mm_Vertical | JP2 |
| 1 | 100N 100n | C_0805_2012Metric | C1 |
| 1 | 10U 10u | C_0805_2012Metric | C2 |
| 2 | 10K 10k | R_0805_2012Metric | R1, R2 |
| 2 | 2K2 2k2 | R_0805_2012Metric | R3, R4 |
Arduino UNO Click shield design files
The KiCad project lives in the michpro/mikroBUS repository on GitHub; these links point at the commit this page was built from.
Arduino UNO Click shield: common questions
How big is the Arduino UNO Click shield?
The Arduino UNO Click shield measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Arduino UNO Click shield?
12 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Arduino UNO Click shield design files?
From the michpro/mikroBUS repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Arduino UNO Click shield design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which michpro chose for the repository.
