LoRa Click
About the LoRa Click PCB
LoRa Click is an open source PCB design by michpro, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 25.4 × 57.2 mm, with 19 components from 15 distinct parts.
Other key parts include the CA-IS3763HB. By type, the board carries 6 capacitors, 5 resistors, 2 connectors, 2 diodes, 1 IC and 1 module.
It belongs with the rf & radio designs in this gallery.
From the project
Collection of add-on boards in mikroBUS™ standard

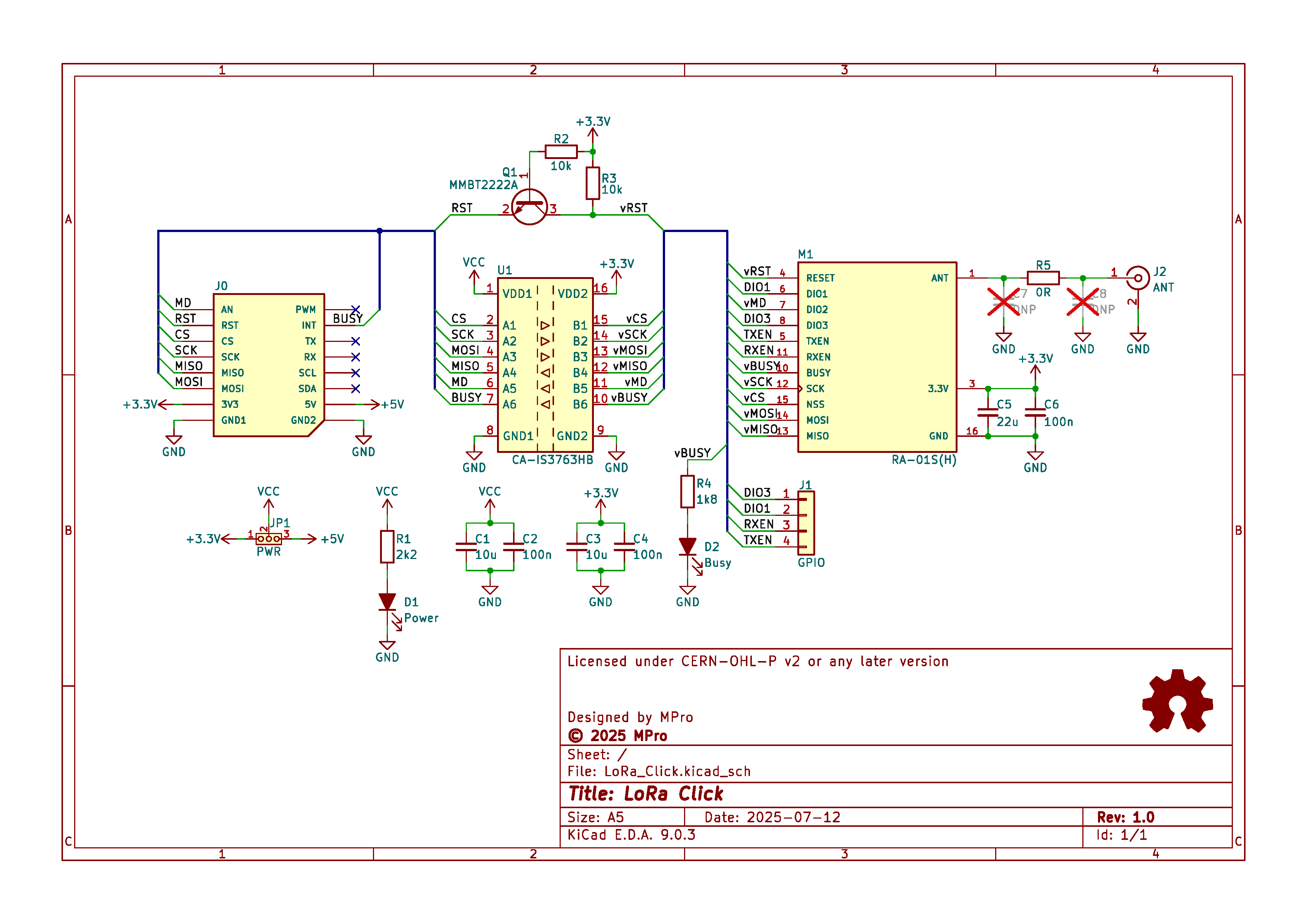

- LoRa Click - Overview - Features - Transceivers: - Software - Schematic diagram - Module visualisation - Assembly - Production files - Reporting bugs - License - Support
This project is released under CERN Open Hardware Licence Version 2 - Permissive.
Main components on the LoRa Click
LoRa Click bill of materials (BOM)
19 components, 15 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CA-IS3763HB | SSOP-16_3.9x4.9mm_P0.635mm | U1 |
| 1 | C724871 RA-01S(H) | RA-01x | M1 |
| 1 | MMBT2222A | SOT-23 | Q1 |
| 1 | C5383113 GPIO | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | C496550 ANT | SMA_Samtec_SMA-J-P-H-ST-EM1_EdgeMount | J2 |
| 1 | C5383112 PWR | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | C89811 Power | LED_0603_1608Metric | D1 |
| 1 | C2286 Busy | LED_0603_1608Metric | D2 |
| 2 | 10U 10u | C_0603_1608Metric | C1, C3 |
| 3 | 100N 100n | C_0603_1608Metric | C2, C4, C6 |
| 1 | 22U 22u | C_0603_1608Metric | C5 |
| 1 | 2K2 2k2 | R_0603_1608Metric | R1 |
| 2 | 10K 10k | R_0603_1608Metric | R2, R3 |
| 1 | 1K8 1k8 | R_0603_1608Metric | R4 |
| 1 | C21189 0R | R_0603_1608Metric | R5 |
LoRa Click design files
The KiCad project lives in the michpro/mikroBUS repository on GitHub; these links point at the commit this page was built from.
LoRa Click: common questions
How big is the LoRa Click PCB?
The LoRa Click measures 25.4 × 57.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LoRa Click?
19 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LoRa Click design files?
From the michpro/mikroBUS repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the LoRa Click design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which michpro chose for the repository.
