I^{2}C EEPROM Click
About the I^{2}C EEPROM Click PCB
I^{2}C EEPROM Click is an open source PCB design by michpro, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 25.4 × 28.6 mm, with 12 components from 10 distinct parts.
Other key parts include the AT24C256. By type, the board carries 5 jumpers, 3 resistors, 2 capacitors, 1 IC and 1 diode.
From the project
Collection of add-on boards in mikroBUS™ standard

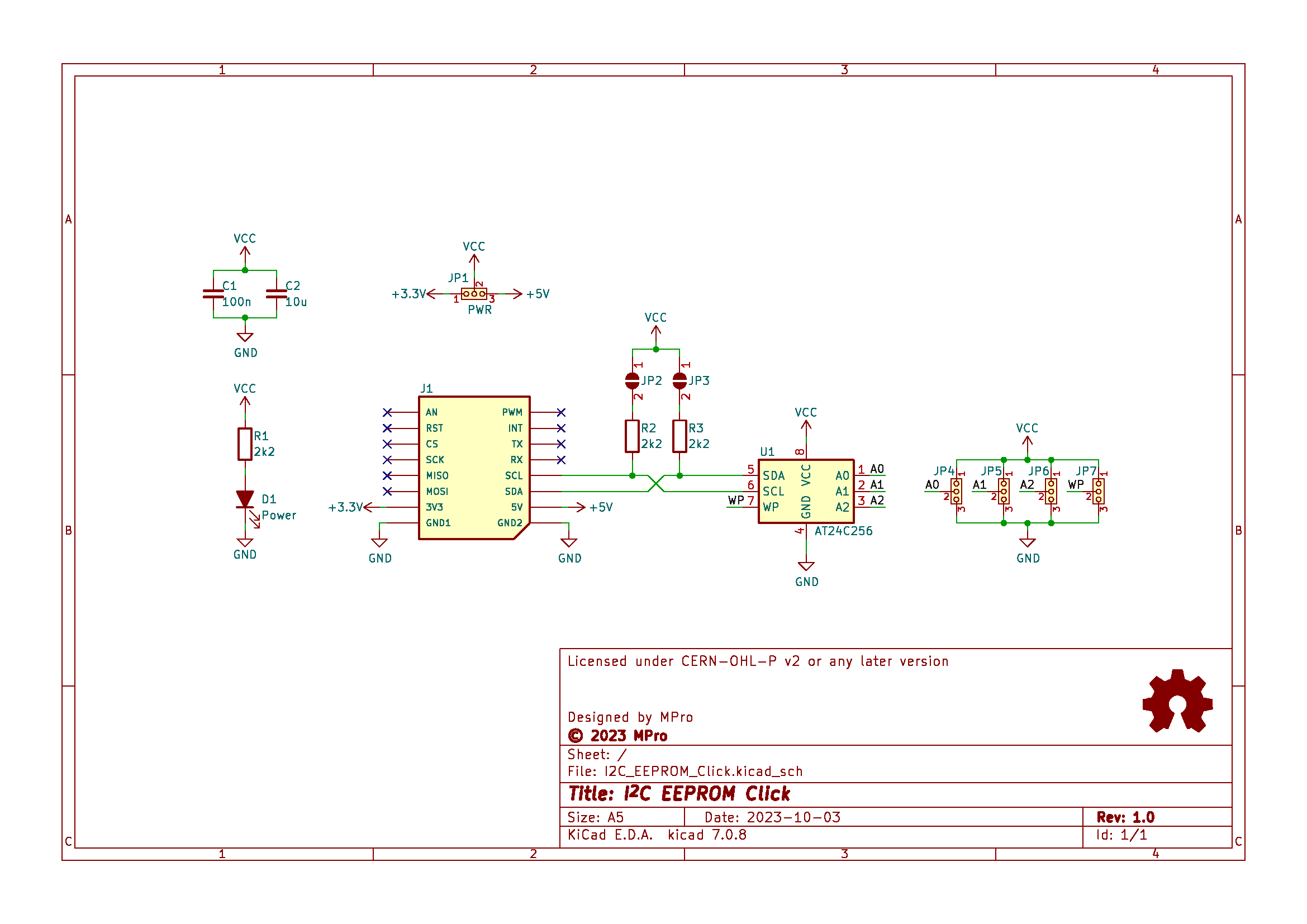

- I²C EEPROM/FRAM Click - Overview - Features - Note - Schematic diagram - Module visualisation - Assembly - Production files - Configuration - Note - Reporting bugs - License - Support
This project is released under CERN Open Hardware Licence Version 2 - Permissive.
Main components on the I^{2}C EEPROM Click
I^{2}C EEPROM Click bill of materials (BOM)
12 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AT24C256 | SO-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | PWR | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | A0 | PinHeader_1x03_P2.54mm_Vertical | JP4 |
| 1 | A1 | PinHeader_1x03_P2.54mm_Vertical | JP5 |
| 1 | A2 | PinHeader_1x03_P2.54mm_Vertical | JP6 |
| 1 | WP | PinHeader_1x03_P2.54mm_Vertical | JP7 |
| 1 | C2296 Power | LED_0805_2012Metric | D1 |
| 1 | 100N 100n | C_0805_2012Metric | C1 |
| 1 | 10U 10u | C_0805_2012Metric | C2 |
| 3 | 2K2 2k2 | R_0805_2012Metric | R1, R2, R3 |
I^{2}C EEPROM Click design files
The KiCad project lives in the michpro/mikroBUS repository on GitHub; these links point at the commit this page was built from.
I^{2}C EEPROM Click: common questions
How big is the I^{2}C EEPROM Click PCB?
The I^{2}C EEPROM Click measures 25.4 × 28.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the I^{2}C EEPROM Click?
12 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the I^{2}C EEPROM Click design files?
From the michpro/mikroBUS repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the I^{2}C EEPROM Click design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which michpro chose for the repository.
