LIN Click
About the LIN Click PCB
LIN Click is an open source PCB design by michpro, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 25.4 × 42.9 mm, with 29 components from 22 distinct parts.
Other key parts include the SIT1021QT/1. By type, the board carries 8 resistors, 7 diodes, 7 capacitors, 3 jumpers, 1 IC and 1 module.
From the project
Collection of add-on boards in mikroBUS™ standard

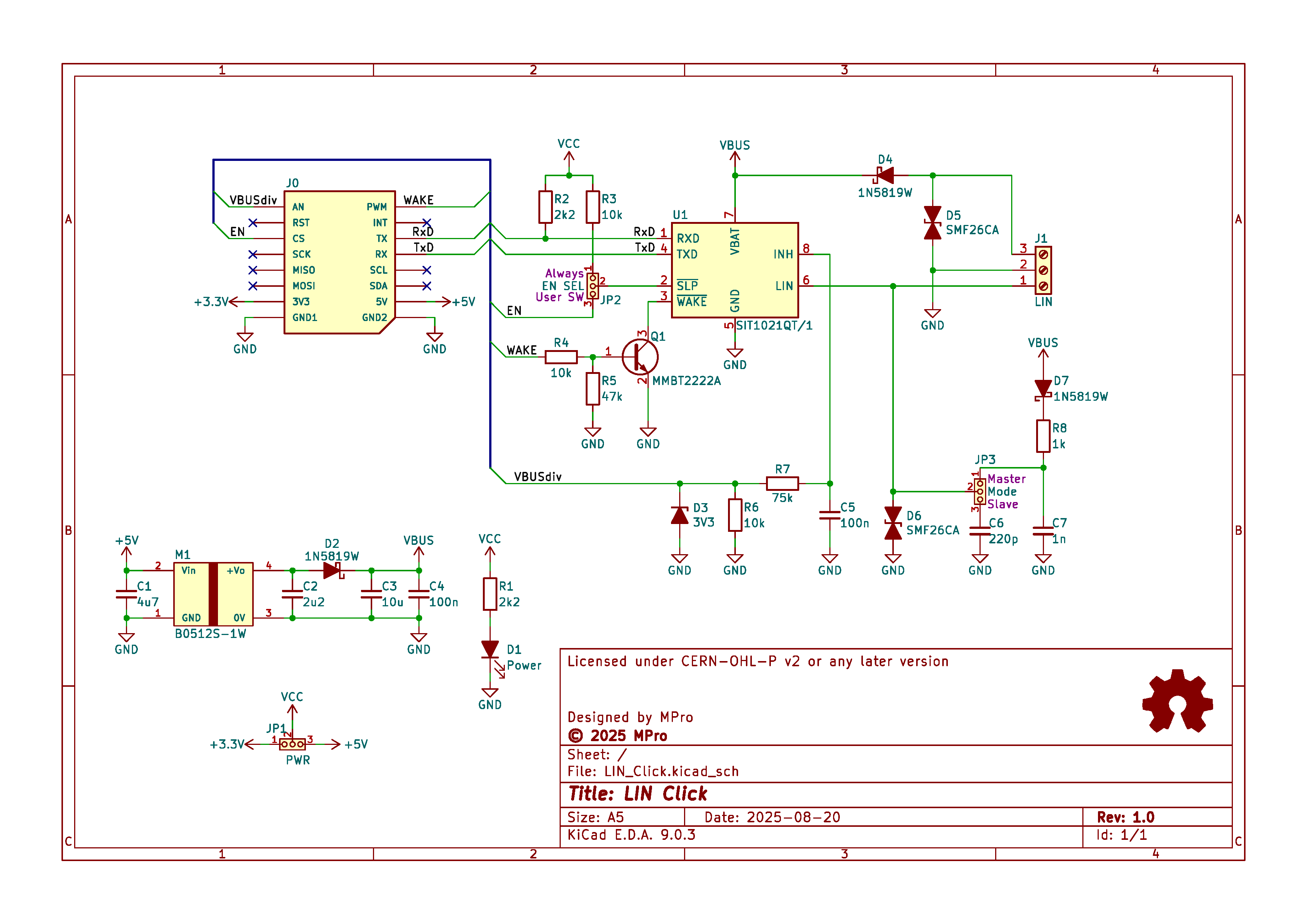

- LIN Click - Overview - Features - Schematic diagram - Module visualisation - Assembly - Production files - Reporting bugs - License - Support
This project is released under CERN Open Hardware Licence Version 2 - Permissive.
Main components on the LIN Click
LIN Click bill of materials (BOM)
29 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SIT1021QT/1 | SO-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | B0512S-1W | BxxyyS-1W | M1 |
| 1 | MMBT2222A | SOT-23 | Q1 |
| 1 | ----- LIN | DG250-3.5-03P-11-00AH | J1 |
| 1 | C5383112 PWR | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | C5383112 EN SEL | PinHeader_1x03_P2.54mm_Vertical | JP2 |
| 1 | C5383112 Mode | PinHeader_1x03_P2.54mm_Vertical | JP3 |
| 1 | C2296 Power | LED_0805_2012Metric | D1 |
| 3 | 1N5819W | D_SOD-123 | D2, D4, D7 |
| 1 | 3V3 | D_SOD-123 | D3 |
| 2 | SMF26CA | D_SOD-123FL | D5, D6 |
| 1 | 4U7 4u7 | C_0805_2012Metric | C1 |
| 1 | 2U2 2u2 | C_0805_2012Metric | C2 |
| 1 | 10U 10u | C_0805_2012Metric | C3 |
| 2 | 100N 100n | C_0805_2012Metric | C4, C5 |
| 1 | 220P 220p | C_0805_2012Metric | C6 |
| 1 | 1n | C_0805_2012Metric | C7 |
| 2 | 2K2 2k2 | R_0805_2012Metric | R1, R2 |
| 3 | 10K 10k | R_0805_2012Metric | R3, R4, R6 |
| 1 | 47K 47k | R_0805_2012Metric | R5 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 75K 75k | R_0805_2012Metric | R7 |
| 1 | 1k | R_0805_2012Metric | R8 |
LIN Click design files
The KiCad project lives in the michpro/mikroBUS repository on GitHub; these links point at the commit this page was built from.
LIN Click: common questions
How big is the LIN Click PCB?
The LIN Click measures 25.4 × 42.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LIN Click?
29 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LIN Click design files?
From the michpro/mikroBUS repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the LIN Click design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which michpro chose for the repository.
