SCT-013 & UI Click
About the SCT-013 & UI Click PCB
SCT-013 & UI Click is an open source PCB design by michpro, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 25.4 × 57.2 mm, with 20 components from 12 distinct parts.
By type, the board carries 11 resistors, 4 capacitors, 1 module, 1 connector, 1 jumper and 1 switch.
It belongs with the displays & leds designs in this gallery.
From the project
Collection of add-on boards in mikroBUS™ standard

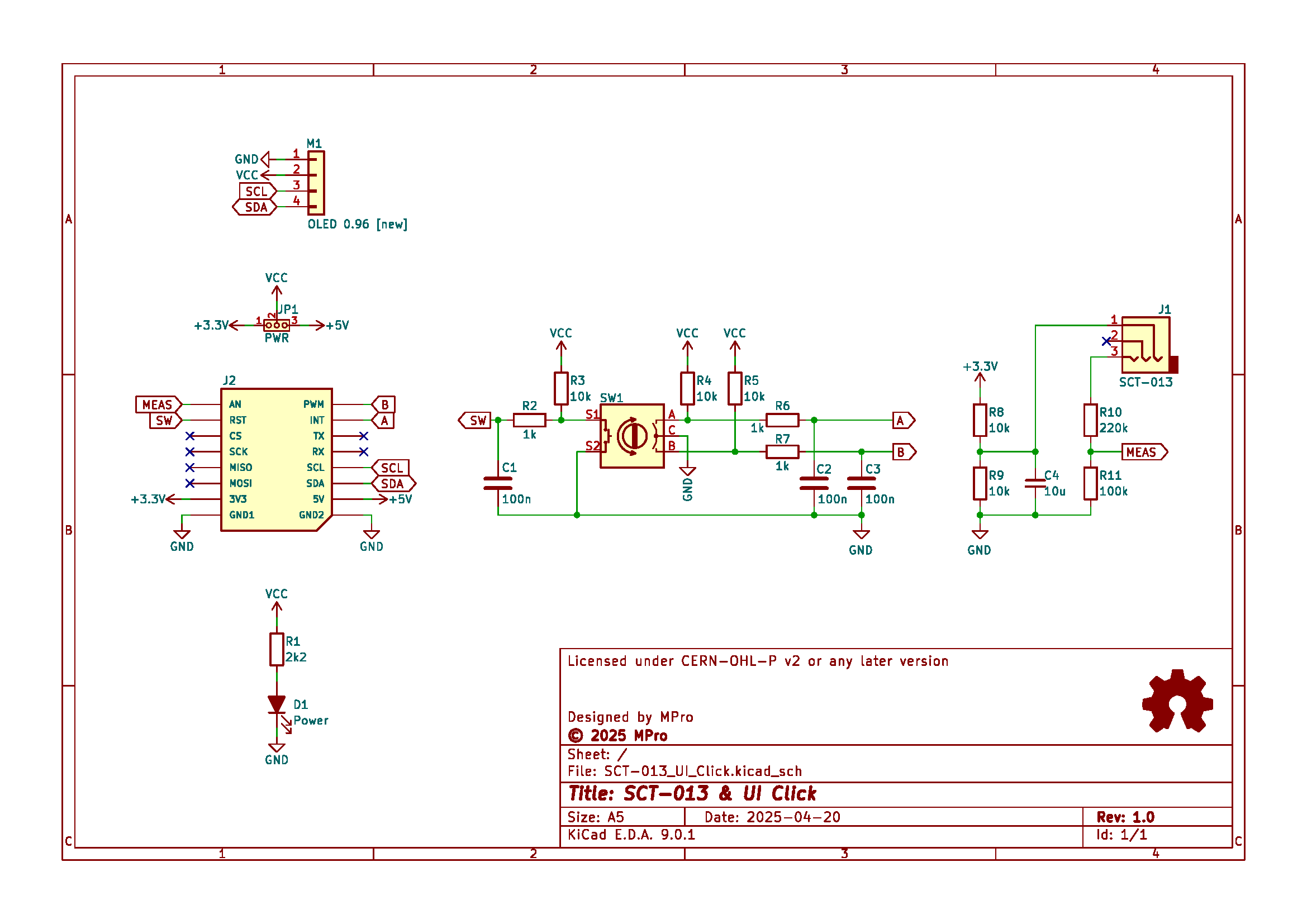

- UI Click with SCT-013 interface - Overview - Features - SCT-013 interface - Note - Visual simulation - Schematic diagram - Module visualisation - Assembly - Production files - Reporting bugs - License - Support
This project is released under CERN Open Hardware Licence Version 2 - Permissive.
SCT-013 & UI Click bill of materials (BOM)
20 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | OLED 0.96 [new] | 128X64_OLED_I2C_0-96inch (EstarDyn) | M1 |
| 1 | SCT-013 | PJ-320B | J1 |
| 1 | PWR | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | EC11 Encoder | EC11_SMD | SW1 |
| 1 | C2296 Power | LED_0805_2012Metric | D1 |
| 3 | 100N 100n | C_0805_2012Metric | C1, C2, C3 |
| 1 | 10U 10u | C_0805_2012Metric | C4 |
| 1 | 2K2 2k2 | R_0805_2012Metric | R1 |
| 3 | 1k | R_0805_2012Metric | R2, R6, R7 |
| 5 | 10K 10k | R_0805_2012Metric | R3, R4, R5, R8, R9 |
| 1 | 220K 220k | R_0805_2012Metric | R10 |
| 1 | 100K 100k | R_0805_2012Metric | R11 |
SCT-013 & UI Click design files
The KiCad project lives in the michpro/mikroBUS repository on GitHub; these links point at the commit this page was built from.
SCT-013 & UI Click: common questions
How big is the SCT-013 & UI Click PCB?
The SCT-013 & UI Click measures 25.4 × 57.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SCT-013 & UI Click?
20 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SCT-013 & UI Click design files?
From the michpro/mikroBUS repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SCT-013 & UI Click design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which michpro chose for the repository.
