WiFi-Gate-Control-Board
About the WiFi-Gate-Control-Board
WiFi-Gate-Control-Board is an open source Microchip SAM PCB design by mikelawrence, published on GitHub. It is a 4-layer board measuring 139.7 × 158.8 mm, with 252 components from 63 distinct parts.
Its main chip is the ATSAMD21G18A-MUT, from the Microchip SAM family. Other key parts include the LMZ21700SILR, TMP100AQDBVRQ1, ATWINC1500-MR210UB1140, SN74LVC2G07DBVR and SN74LVC2G06DBVR. By type, the board carries 85 resistors, 82 capacitors, 29 diodes, 26 ICs, 12 connectors and 5 inductors.
It belongs with the iot & wireless and power & battery designs in this gallery.
From the project

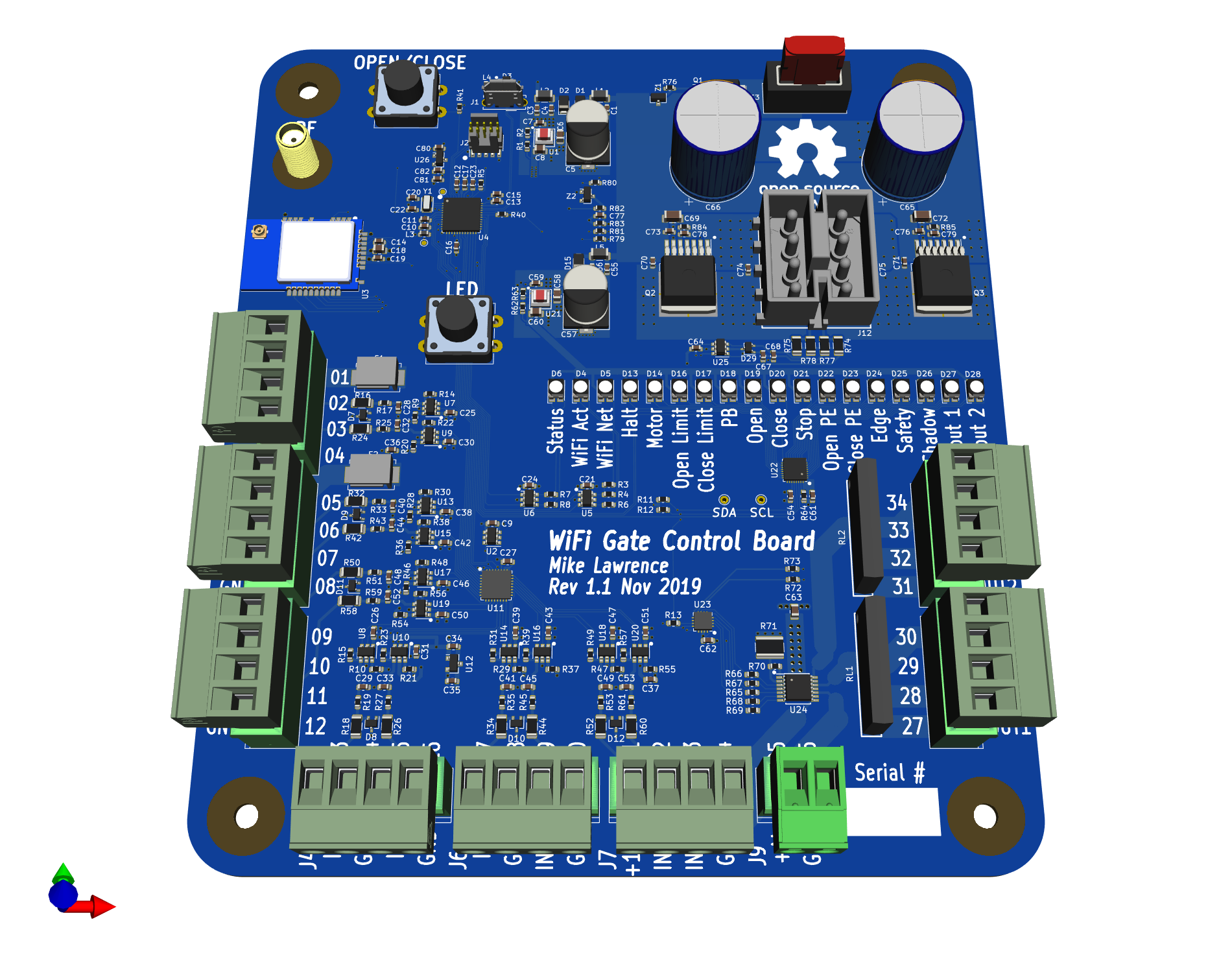

WiFi Enabled Gate Control Board
This board performs the same functions as my WiFi Gate Controller, which was designed to add WiFi and Home Assistant control to an existing US Automation Gate Opener board, while providing motor control and standard gate inputs. This board will replace a US Automation Gate Opener board. All inputs are now generalized and also support 10k resistor monitoring for safety devices like edge or photoelectric inputs.
Main components on the WiFi-Gate-Control-Board
WiFi-Gate-Control-Board bill of materials (BOM)
252 components, 63 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | LMZ21700SILR LMZ21700 Texas Instruments | Converter_DCDC_Texas-SIL0008E | U1, U21 |
| 1 | TMP100AQDBVRQ1 TMP100 Texas Instruments | SOT-23-6 | U2 |
| 1 | ATWINC1500-MR210UB1140 ATWINC1500-MR210UB Microchip | Microchip_ATWINC1500-MR210UB | U3 |
| 1 | ATSAMD21G18A-MUT SAMD21G18-M Microchip | QFN-48-1EP_7x7mm_P0.5mm_EP5.15x5.15mm | U4 |
| 1 | SN74LVC2G07DBVR 74LVC2G07 Texas Instruments | SOT-23-6 | U5 |
| 1 | SN74LVC2G06DBVR 74LVC2G06 Texas Instruments | SOT-23-6 | U6 |
| 12 | TPS3779BDBVR TPS3779 Texas Instruments | SOT-23-6 | U7, U8, U9, U10, U13, U14, U15, U16 +4 |
| 1 | TCA6424ARGJR TCA6424A Texas Instruments | VQFN-32-1EP_5x5mm_P0.5mm_EP3.1x3.1mm_ThermalVias | U11 |
| 1 | REF3330AIDBZR REF3330 Texas Instruments | SOT-23 | U12 |
| 1 | LP5024RSMR LP5024 Texas Instruments | QFN-32-1EP_4x4mm_P0.4mm_EP2.9x2.9mm_ThermalVias | U22 |
| 1 | TCA6408ARGTR TCA6408A Texas Instruments | VQFN-16-1EP_3x3mm_P0.5mm_EP1.45x1.45mm_ThermalVias | U23 |
| 1 | ITS4075Q-EP-DXUMA1 ITS4075Q Infineon | Infineon_PG-TSDSO-14-22 | U24 |
| 1 | SN74LVC2G17DBVR 74LVC2G17 Texas Instruments | SOT-23-6 | U25 |
| 1 | REF3325AIDBZR REF3325 Texas Instruments | SOT-23 | U26 |
| 1 | IPD90P03P4L-04 Infineon | TO-252-2 | Q1 |
| 2 | IFX007TAUMA1 IFX007T Infineon | TO-263-7_TabPin8 | Q2, Q3 |
| 1 | ABS07-32.768KHZ-9-T 32.768kHz Abracon | Crystal_SMD_Abracon_ABS07-2Pin_3.2x1.5mm | Y1 |
| 1 | 614105150721 USB_B_Micro Wurth Electronics | USB_Micro-B_Wuerth_614105150721_Vertical_CircularHoles | J1 |
| 1 | FTSH-105-01-L-DV-K Cortex Debug Samtec | PinHeader_2x05_P1.27mm_Vertical_SMD | J2 |
| 8 | 1755752 Screw Header 4 Pos Phoenix Contact | PhoenixContact_MSTBVA_2,5_4-G-5,08_1x04_P5.08mm_Vertical | J3, J4, J5, J6, J7, J8, J10, J11 |
Show 43 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1755736 Screw Header 2 Pos Phoenix Contact | PhoenixContact_MSTBVA_2,5_2-G-5,08_1x02_P5.08mm_Vertical | J9 |
| 1 | 350212-1 Motor TE Connectivity | TE_MATE-N-LOK_350212-1_2X04_P4.95_Vertical | J12 |
| 2 | MFSM075-2 0.75A Bourns | Fuse_Bourns_MF-SM_7.98x5.44mm | F1, F2 |
| 1 | 3568 15A Keystone | Fuseholder_Blade_Mini_Keystone_3568 | F3 |
| 2 | CPC1511Y IXYS | Relay_IXYS_PowerSIP | RL1, RL2 |
| 2 | 430476085716 ~ Wurth Electronics | SW_PUSH-12mm_Wuerth-430476085716 | SW1, SW2 |
| 1 | SZBZX84C10LT1G 10V On Semiconductor | D_SOT-23_ANK | Z1 |
| 1 | SZBZX84C2V7LT1G 2.7V On Semiconductor | D_SOT-23_ANK | Z2 |
| 3 | DFLS130LQ DFLS130 Diodes Inc | D_PowerDI-123 | D1, D2, D15 |
| 1 | 771-PRTR5V0U2X PRTR5V0U2X Nexperia | SOT-143 | D3 |
| 18 | HSMF-A203-A00J1 Red/Green Avago | LED_Avago_PLCC4_3.2x2.8mm_CW | D4, D5, D6, D13, D14, D16, D17, D18 +10 |
| 7 | TPD2E2U06QDCKRQ1 TPD2E2U06 Texas Instruments | SOT-323_SC-70 | D7, D8, D9, D10, D11, D12, D29 |
| 3 | BLM31KN102SH1L 1k@100MHz Murata | L_1206_3216Metric | L1, L2, L5 |
| 2 | BLM18PG471SN1D 470@100MHz Murata | L_0603_1608Metric | L3, L4 |
| 6 | VJ0603Y102KXAAC31 1nF Vishay | C_0603_1608Metric | C1, C2, C3, C4, C55, C56 |
| 2 | EMVH350ADA101MHA0G 100uF United Chemi-Con | CP_Elec_8x10 | C5, C57 |
| 6 | TMK212BBJ226MG-TT 22uF Taiyo Yuden | C_0805_2012Metric | C6, C8, C18, C58, C60, C63 |
| 2 | VJ0603Y332JXQPW1BC 3.3nF Vishay | C_0603_1608Metric | C7, C59 |
| 33 | CC603JRX7R9BB104 0.1uF Yageo | C_0603_1608Metric | C9, C11, C12, C13, C14, C16, C21, C23 +25 |
| 3 | JMK107BB7475KA-T 4.7uF Taiyo Yuden | C_0603_1608Metric | C10, C15, C81 |
| 17 | UMK107BJ105KA-T 1uF Taiyo Yuden | C_0603_1608Metric | C17, C19, C28, C29, C32, C33, C35, C40 +9 |
| 2 | 06035A150JAT2A 15pF AVX | C_0603_1608Metric | C20, C22 |
| 2 | UPM1V471MHD6 470uF Nichicon | CP_Radial_D16.0mm_P7.50mm | C65, C66 |
| 2 | DNI | C_0603_1608Metric | C67, C68 |
| 2 | CGA5L1X7R1H106K160AC 10uF TDK | C_1206_3216Metric | C69, C72 |
| 4 | UMK107B7224KA 0.22uF Taiyo Yuden | C_0603_1608Metric | C70, C71, C74, C75 |
| 1 | VJ0603Y103JXACW1BC 10nF Vishay | C_0603_1608Metric | C77 |
| 2 | RC0603FR-071M21L 1.21M Yageo | R_0603_1608Metric | R1, R62 |
| 2 | ERJ-3EKF3833V 383k Panasonic | R_0603_1608Metric | R2, R63 |
| 5 | ERJ-3EKF44R2V 44.2R Panasonic | R_0603_1608Metric | R3, R4, R6, R7, R8 |
| 1 | ERJ-3EKF39R0V 39R Panasonic | R_0603_1608Metric | R5 |
| 12 | RR0816P-3322D51C 33.2k Susumu | R_0603_1608Metric | R9, R10, R20, R21, R28, R29, R36, R37 +4 |
| 3 | ERJ-3EKF4701V 4.7k Panasonic | R_0603_1608Metric | R11, R12, R13 |
| 12 | RR0816P-6811D81H 6.81k Susumu | R_0603_1608Metric | R14, R15, R22, R23, R30, R31, R38, R39 +4 |
| 14 | AC1206DR-071KL 1k Yageo | R_1206_3216Metric | R16, R18, R24, R26, R32, R34, R42, R44 +6 |
| 22 | RR0816P-103-D 10k Susumu | R_0603_1608Metric | R17, R19, R25, R27, R33, R35, R43, R45 +14 |
| 3 | ERJ-3EKF1003V 100k Panasonic | R_0603_1608Metric | R40, R41, R65 |
| 1 | ERJ-3EKF2941V 2.94k Panasonic | R_0603_1608Metric | R64 |
| 1 | ERJ-3EKF2201V 2.2k Panasonic | R_0603_1608Metric | R70 |
| 1 | CRCW1218150RFKEK 150R Vishay / Dale | R_1218_3246Metric | R71 |
| 2 | ERJ-3EKF4220V 422R Panasonic | R_0603_1608Metric | R72, R73 |
| 2 | ERJ-P08J334V 330k Panasonic | R_1206_3216Metric | R74, R75 |
| 2 | ERJ-3EKF1001V 1k Panasonic | R_0603_1608Metric | R82, R83 |
WiFi-Gate-Control-Board design files
The KiCad project lives in the mikelawrence/WiFi-Gate-Control-Board repository on GitHub; these links point at the commit this page was built from.
WiFi-Gate-Control-Board: common questions
What microcontroller does the WiFi-Gate-Control-Board use?
The WiFi-Gate-Control-Board is built around the ATSAMD21G18A-MUT, from the Microchip SAM family.
How big is the WiFi-Gate-Control-Board?
The WiFi-Gate-Control-Board measures 139.7 × 158.8 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the WiFi-Gate-Control-Board?
252 components, from 63 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the WiFi-Gate-Control-Board design files?
From the mikelawrence/WiFi-Gate-Control-Board repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the WiFi-Gate-Control-Board design in my own project?
The repository has no license, so all rights stay with mikelawrence. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the WiFi-Gate-Control-Board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Microchip SAM firmware against it before you order a PCB.
