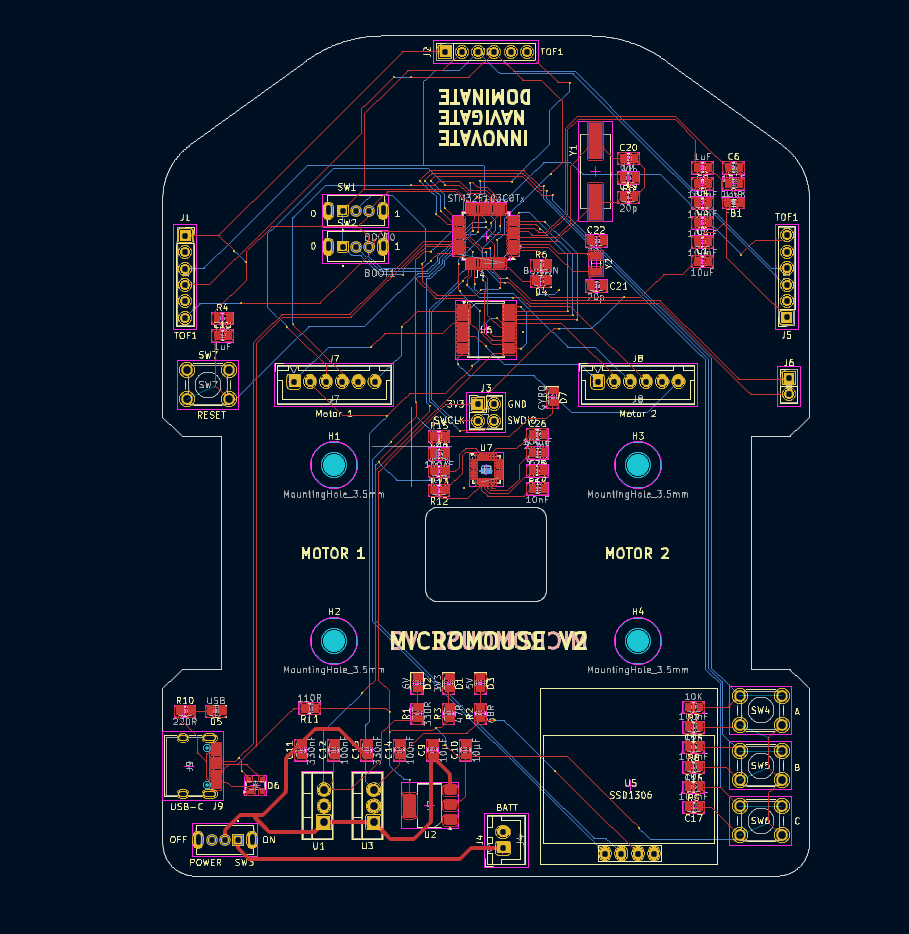

About the Micromouse v2 PCB
Micromouse v2 is an open source STM32 PCB design by minindupasan, published on GitHub. It is a 2-layer board measuring 100 × 130 mm, with 74 components from 47 distinct parts.
Its main chip is the STM32F103C8Tx, from the STM32 family. Other key parts include the L7806, AMS1117-3.3, L7805, SSD1306 and TB6612FNG. By type, the board carries 26 capacitors, 15 resistors, 9 connectors, 7 ICs, 7 switches and 7 diodes.
It belongs with the displays & leds, sensors and robotics & motion designs in this gallery.
From the project
This repository contains the design files, firmware, and documentation for a maze-solving car built using the STM32F103C8T6 microcontroller. The car is equipped with sensors, motors, and communication interfaces to autonomously navigate and solve mazes.
This repository contains the design files, firmware, and documentation for a maze-solving car built using the STM32F103C8T6 microcontroller. The car is equipped with sensors, motors, and communication interfaces to autonomously navigate and solve mazes.
The maze-solving car is an autonomous robot designed to navigate through a maze using sensor data and decision-making algorithms. The car is built around the STM32F103C8T6 microcontroller and features the following key functionalities: - Maze Navigation: Uses the MPU6050 (IMU) and VL53L0X (Time-of-Flight sensor) for orientation and distance…

Main components on the Micromouse v2
Micromouse v2 bill of materials (BOM)
74 components, 47 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | L7806 | TO-220-3_Vertical | U1 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U2 |
| 1 | L7805 | TO-220-3_Vertical | U3 |
| 1 | STM32F103C8Tx | LQFP-48_7x7mm_P0.5mm | U4 |
| 1 | SSD1306 | 128x64OLED | U5 |
| 1 | TB6612FNG | SSOP-24_5.3x8.2mm_P0.65mm | U6 |
| 1 | MPU-6050 | InvenSense_QFN-24_4x4mm_P0.5mm | U7 |
| 1 | 8MHz | Crystal_ABLS2-8.000MHZ-D4Y-T | Y1 |
| 1 | 32.768K | XTAL_ABS07-32.768KHZ-T | Y2 |
| 3 | TOF1 | PinSocket_1x06_P2.54mm_Vertical | J1, J2, J5 |
| 1 | Conn_02x02_Counter_Clockwise | PinHeader_2x02_P2.54mm_Vertical | J3 |
| 1 | BATT | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J4 |
| 1 | Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J6 |
| 1 | Motor 1 | JST_XH_B6B-XH-A_1x06_P2.50mm_Vertical | J7 |
| 1 | Motor 2 | JST_XH_B6B-XH-A_1x06_P2.50mm_Vertical | J8 |
| 1 | USB-C | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J9 |
| 1 | BOOT0 | SW_SS12D07VG4 | SW1 |
| 1 | BOOT1 | SW_SS12D07VG4 | SW2 |
| 1 | POWER | SW_SS12D07VG4 | SW3 |
| 1 | A | SW_PUSH_6mm_H13mm | SW4 |
Show 27 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | B | SW_PUSH_6mm_H13mm | SW5 |
| 1 | C | SW_PUSH_6mm_H13mm | SW6 |
| 1 | RESET | SW_PUSH_6mm_H13mm | SW7 |
| 1 | 3V3 | LED_0805_2012Metric | D1 |
| 1 | 6V | LED_0805_2012Metric | D2 |
| 1 | 5V | LED_0805_2012Metric | D3 |
| 1 | BUILTIN | LED_0805_2012Metric | D4 |
| 1 | USB | LED_0805_2012Metric | D5 |
| 1 | SP0503BAHT | SOT-143 | D6 |
| 1 | GYRO | LED_0805_2012Metric | D7 |
| 1 | 120R | L_0805_2012Metric | FB1 |
| 1 | 10uF | C_0805_2012Metric | C1 |
| 11 | 100nF | C_0805_2012Metric | C2, C3, C4, C5, C12, C14, C15, C16 +3 |
| 2 | 10nF | C_0805_2012Metric | C6, C23 |
| 3 | 1uF | C_0805_2012Metric | C7, C8, C18 |
| 2 | 10µF | C_0805_2012Metric | C9, C10 |
| 2 | 330nF | C_0805_2012Metric | C11, C13 |
| 4 | 20p | C_0805_2012Metric | C19, C20, C21, C22 |
| 1 | 2.2nF | C_0805_2012Metric | C26 |
| 1 | 330R | R_0805_2012Metric | R1 |
| 1 | 68R | R_0805_2012Metric | R2 |
| 3 | 47R | R_0805_2012Metric | R3, R6, R15 |
| 4 | 10K | R_0805_2012Metric | R4, R7, R8, R9 |
| 1 | 1M | R_0805_2012Metric | R5 |
| 1 | 220R | R_0805_2012Metric | R10 |
| 1 | 110R | R_0805_2012Metric | R11 |
| 3 | 4.7K | R_0805_2012Metric | R12, R13, R14 |
Micromouse v2 design files
The KiCad project lives in the minindupasan/micromouse-v2 repository on GitHub; these links point at the commit this page was built from.
Micromouse v2: common questions
What microcontroller does the Micromouse v2 use?
The Micromouse v2 is built around the STM32F103C8Tx, from the STM32 family.
How big is the Micromouse v2 PCB?
The Micromouse v2 measures 100 × 130 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Micromouse v2?
74 components, from 47 distinct parts. The full bill of materials is listed on this page.
Where can I download the Micromouse v2 design files?
From the minindupasan/micromouse-v2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Micromouse v2 design in my own project?
The repository has no license, so all rights stay with minindupasan. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Micromouse v2 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
