About the GalernaDsp PCB
GalernaDsp is an open source STM32 PCB design by mirrorganger, published on GitHub. It is a 4-layer board measuring 121 × 121 mm, with 125 components from 51 distinct parts.
Its main chip is the STM32F405RGTX, from the STM32 family. Other key parts include the ES8388, TPA6110A2DGN, USBLC6-2SC6, TLV62569DBV and SPX3819M5-L-3-3. By type, the board carries 52 capacitors, 34 resistors, 7 ICs, 6 connectors, 6 diodes and 4 inductors.
It belongs with the displays & leds designs in this gallery.
From the project

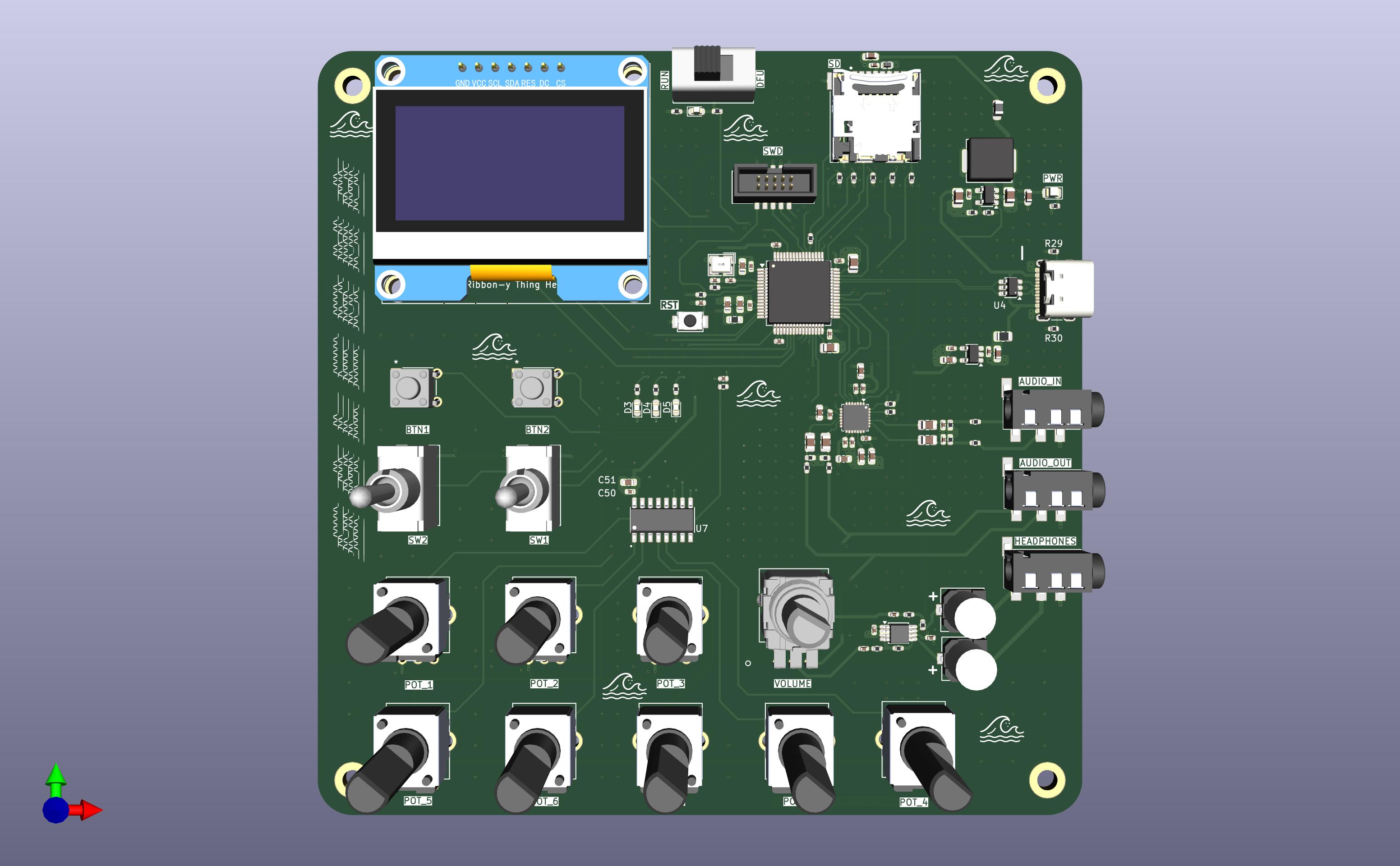

Galerna DSP is a KiCad hardware project for an STM32-based audio effects board: two audio channels in/out, 8 potentiometers, footswitches/buttons, an OLED display, and a microSD slot, all built around an STM32F405.
Galerna DSP is a KiCad hardware project for an STM32-based audio effects board: two audio channels in/out, 8 potentiometers, footswitches/buttons, an OLED display, and a microSD slot, all built around an STM32F405.
Full design write-up — requirements, as-built BOM, power budget, codec/amp circuit notes — lives in docs/Design.md.
Open GalernaDsp.kicadpro in KiCad (7.x). The root schematic pulls in the four sub-sheets listed above; the PCB is a single GalernaDsp.kicadpcb.
Main components on the GalernaDsp
GalernaDsp bill of materials (BOM)
125 components, 51 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F405RGTX STM32F405RGTx STMicroelectronics | LQFP-64_10x10mm_P0.5mm | U1 |
| 1 | ES8388 Everest-semi(Everest Semiconductor) | ES8388 | U2 |
| 1 | TPA6110A2DGN Texas Instruments | HVSSOP-8-1EP_3x3mm_P0.65mm_EP1.57x1.89mm | U3 |
| 1 | USBLC6-2SC6 STMicroelectronics | SOT-23-6 | U4 |
| 1 | TLV62569DBV Texas Instruments | SOT-23-5 | U5 |
| 1 | SPX3819M5-L-3-3 TECH PUBLIC | SOT-23-5 | U6 |
| 1 | CD4051BM Texas Instruments | SOIC127P600X175-16N | U7 |
| 1 | X1E000210127000G Seiko Epson | CRYSTAL-SMD_4P-L3.2-W2.5-BL | X1 |
| 1 | C42372555 HX JN1.27-2X5 TP H4.9 HANXIA | IDC-SMD_10P-P1.27-3220-10-0300-00 | CN1 |
| 1 | DM3CS-SF Hirose | HRS_DM3CS-SF | J1 |
| 1 | C431535 HEADPHONES | AUDIO-SMD_PJ-320D-1 | J2 |
| 1 | C431535 AUDIO_IN | AUDIO-SMD_PJ-320D-1 | J3 |
| 1 | C431535 AUDIO_OUT | AUDIO-SMD_PJ-320D-1 | J4 |
| 1 | USB_C_RECEPTACLE_USB2.0_16P USB_C_Receptacle_USB2.0_16P SHOU HAN | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J5 |
| 2 | 1825910-6 TE CONNECTIVITY | SW4_1825910-B_TEC | BTN1, BTN2 |
| 8 | PTV09A-4225F-B104 BOURNS | PTV09 | POT_1, POT_2, POT_3, POT_4, POT_5, POT_6, POT_7, POT_8 |
| 2 | 100SP1T1B4M2QE E-Switch | SW_100SP1T1B4M2QE | SW1, SW2 |
| 1 | BOOT_MODE SHOU HAN | SW-TH_SHOU-HAN_SS12D10G4 | SW_1 |
| 1 | SW_RESET XUNPU | SW-SMD_L3.9-W3.0-P4.45 | SW_2 |
| 1 | ~ | ER-OLEDM015-2 | ER-OLEDM015-2W1 |
Show 31 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C2286 RED | LED_0603_1608Metric | D1 |
| 1 | RCLAMP0521P-N Born | X1-DFN1006-2_L1.0-W0.6-P0.65-BI | D2 |
| 3 | C2290 YELLOW_LED | LED_0603_1608Metric | D3, D4, D5 |
| 1 | C2297 GREEN LED | LED_0805_2012Metric | D6 |
| 1 | C1015 100@100MHz | L_0805_2012Metric | FB1 |
| 1 | C1017 600Ω@100MHz Sunlord | R_0805_2012Metric | FB2 |
| 1 | C14709 120@100Mhz | R_0603_1608Metric | FB3 |
| 1 | 10U 10u SUNLORD | L_Sunlord_MWSA0618S | L2 |
| 2 | 12P 12p | C_0402_1005Metric | C1, C2 |
| 20 | 100N 100n | C_0402_1005Metric | C3, C5, C6, C7, C9, C11, C12, C18 +12 |
| 12 | 10U 10u | C_0603_1608Metric | C4, C14, C16, C19, C20, C22, C23, C24 +4 |
| 6 | 2.2U 2.2u | C_0805_2012Metric | C8, C10, C37, C38, C39, C40 |
| 2 | 10N 10n | C_0402_1005Metric | C13, C47 |
| 2 | 1u | C_0603_1608Metric | C15, C17 |
| 2 | 1u | C_0402_1005Metric | C29, C30 |
| 2 | 100U 100u | CHEMI-F80 | C35, C36 |
| 2 | 220P 220p | C_0402_1005Metric | C41, C42 |
| 2 | 22U 22u | C_0805_2012Metric | C45, C49 |
| 7 | 1k | R_0402_1005Metric | R1, R11, R12, R13, R27, R28, R34 |
| 7 | 10K 10k | R_0402_1005Metric | R2, R3, R6, R7, R8, R9, R10 |
| 3 | 47K 47k | R_0402_1005Metric | R4, R23, R24 |
| 1 | 22 | R_0402_1005Metric | R5 |
| 2 | 4K7 4k7 | R_0402_1005Metric | R14, R15 |
| 1 | RK09L12D0A1W ALPSALPINE | RK09L12D0A1W_AAL | R16 |
| 3 | 22K 22k | R_0402_1005Metric | R17, R18, R32 |
| 2 | 33K 33k | R_0402_1005Metric | R19, R20 |
| 2 | 200K 200k | R_0402_1005Metric | R21, R22 |
| 2 | 100 | R_0402_1005Metric | R25, R26 |
| 2 | 5K1 5k1 | R_0402_1005Metric | R29, R30 |
| 1 | 100K 100k | R_0402_1005Metric | R31 |
| 1 | 1K5 1k5 | R_0402_1005Metric | R33 |
GalernaDsp design files
The KiCad project lives in the mirrorganger/GalernaDsp repository on GitHub; these links point at the commit this page was built from.
GalernaDsp: common questions
What microcontroller does the GalernaDsp use?
The GalernaDsp is built around the STM32F405RGTX, from the STM32 family.
How big is the GalernaDsp PCB?
The GalernaDsp measures 121 × 121 mm, has 4 copper layers and is 1.726 mm thick.
How many components are on the GalernaDsp?
125 components, from 51 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the GalernaDsp design files?
From the mirrorganger/GalernaDsp repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the GalernaDsp design in my own project?
The repository has no license, so all rights stay with mirrorganger. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the GalernaDsp without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
