SlimDash rev1

mizma·SlimDash·hardware-rev1/design_data/SlimDash-rev1-kicad/SlimDash-rev1-kicad.kicad_pcb

SlimDash rev1 PCB layout, top view — open source RP2040/RP2350 board by mizma

About the SlimDash rev1 PCB

SlimDash rev1 is an open source RP2040/RP2350 PCB design by mizma, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 157.1 × 131.5 mm, with 137 components from 18 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the TLV73333PDBV, W25Q128JVS, SMF05CT1G and SN74LVC1T45DRL. By type, the board carries 35 switches, 35 LEDs, 35 diodes, 18 capacitors, 7 resistors and 5 ICs.

It belongs with the keyboards designs in this gallery.

From the project

ErgoDash inspired low-profile key switch keyboard with embedded RP2040

IMPORTANT. Read through the entire instruction first before starting the Assembly so you have a good idea on what to expect!

PCB Order with PCBA using ./hardware-rev1/PCB/slimdashv1.0.0.zip and BOM/CPL files in the same directory. You will need 2 PCBs for one set of keyboard Ordering Instructions below. Acrylic: Order cuts for following (number required for one keyboard) backplate1left3mm-157.1x131.2.zip x 1 backplate1right3mm-155.2x131.2.zip x 1 backplate2both2mm-157.1x131.2.zip x 1 backplate2left2mm-157.1x131.2.zip x 1 backplate3both2mm-157.1x39.02.zip x 2 baseplateleft2mm-155.2x131.2.zip…

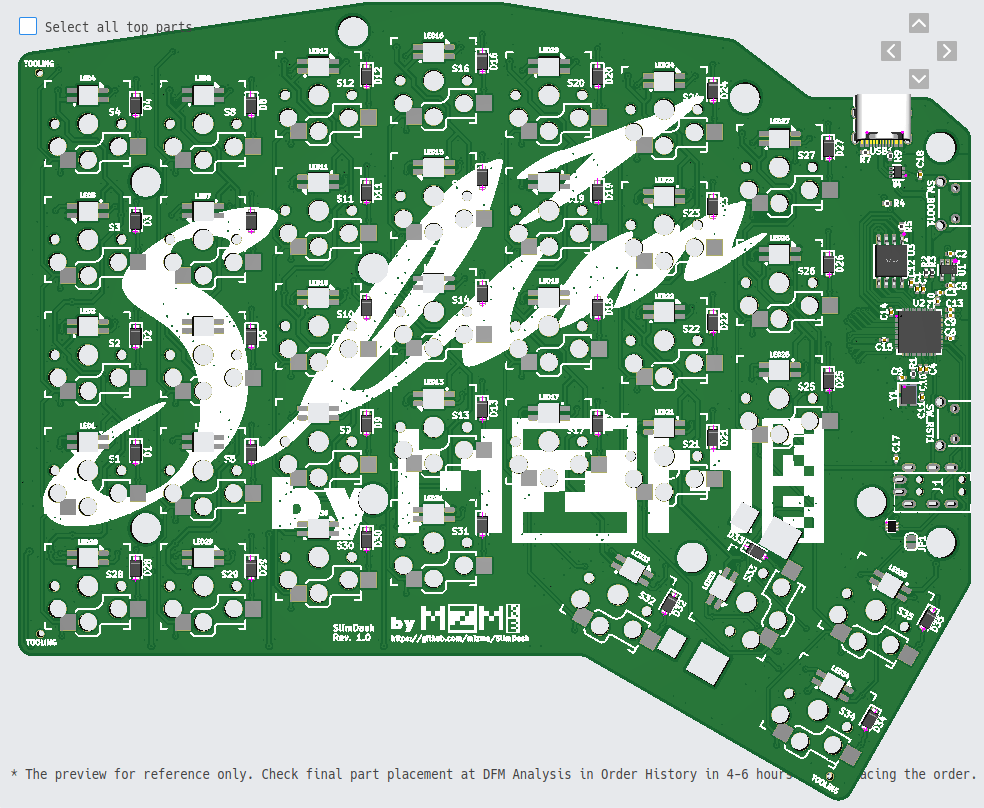

SlimDash rev1, from the project README
From the project README

Main components on the SlimDash rev1

TLV73333PDBVRP2040W25Q128JVSSMF05CT1GSN74LVC1T45DRL

SlimDash rev1 bill of materials (BOM)

137 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TLV73333PDBV
U1
1
RP2040
U2
1
W25Q128JVS
U3
1
SMF05CT1G
U4
1
SN74LVC1T45DRL
U5
1
CRYSTAL_GND24
Crystal_GND24
Y1
35
SW_Push
S1, S2, S3, S4, S5, S6, S7, S8 +27
1
HRO-TYPE-C-31-M-12
USB1
35
SK6812MINI-E
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +27
35
C2908120
D
D1, D2, D3, D4, D5, D6, D7, D8 +27
10
100N
100n
C1, C4, C6, C7, C9, C12, C13, C14 +2
4
1u
C2, C3, C5, C10
2
30P
30p
C8, C11
2
10U
10u
C17, C18
2
1k
R1, R4
2
27
R2, R3
1
10K
10k
R5
2
5.1K
5.1k
R7, R9

SlimDash rev1 design files

The KiCad project lives in the mizma/SlimDash repository on GitHub; these links point at the commit this page was built from.

SlimDash rev1: common questions

What microcontroller does the SlimDash rev1 use?

The SlimDash rev1 is built around the RP2040, from the RP2040/RP2350 family.

How big is the SlimDash rev1 PCB?

The SlimDash rev1 measures 157.1 × 131.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SlimDash rev1?

137 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SlimDash rev1 design files?

From the mizma/SlimDash repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SlimDash rev1 design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which mizma chose for the repository.

Can I test firmware for the SlimDash rev1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
