LED Driver Board
About the LED Driver Board

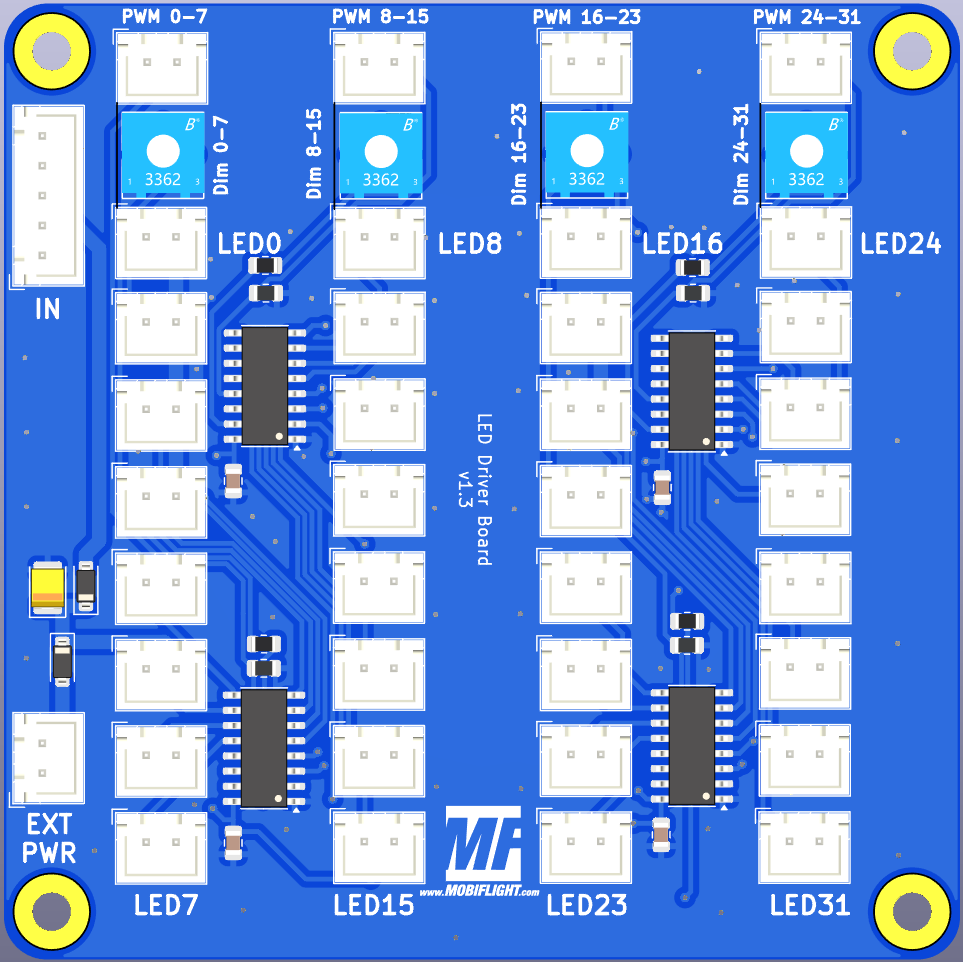

LED Driver Board is an open source PCB design by MobiFlight, published on GitHub. It is a 2-layer board measuring 80 × 80 mm, with 61 components from 42 distinct parts.
Other key parts include the STP08DP05MTR. By type, the board carries 38 connectors, 8 resistors, 5 capacitors, 4 ICs and 2 diodes.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
PCBs and breakout boards, designed by the MobiFlight community
The board uses XH JST connectors for the individual LED's and for connecting to the Prototyping Board. Four 8 bit output shift register with integrated LED driver are daisy chained. Each group of 8 LED's can be dimmed via PWM input and the max. brightness can be adjusted via a potentiometer.
For more information on how to configure the board with MobiFlight, check out the MobiFlight Connector documentation.
Main components on the LED Driver Board
LED Driver Board bill of materials (BOM)
61 components, 42 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | STP08DP05MTR | SO-16_3.9x9.9mm_P1.27mm | U1, U2, U3, U4 |
| 1 | LED1 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J1 |
| 1 | LED2 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J2 |
| 1 | LED3 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J3 |
| 1 | LED4 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J4 |
| 1 | LED5 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J5 |
| 1 | LED6 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J6 |
| 1 | LED7 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J7 |
| 1 | LED8 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J8 |
| 1 | LED9 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J9 |
| 1 | LED10 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J10 |
| 1 | LED11 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J11 |
| 1 | LED12 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J12 |
| 1 | LED13 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J13 |
| 1 | LED14 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J14 |
| 1 | LED15 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J15 |
| 1 | LED16 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J16 |
| 1 | LED17 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J17 |
| 1 | LED18 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J18 |
| 1 | LED19 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J19 |
Show 22 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LED20 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J20 |
| 1 | LED21 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J21 |
| 1 | LED22 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J22 |
| 1 | LED23 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J23 |
| 1 | LED24 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J24 |
| 1 | LED25 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J25 |
| 1 | LED26 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J26 |
| 1 | LED27 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J27 |
| 1 | LED28 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J28 |
| 1 | LED29 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J29 |
| 1 | LED30 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J30 |
| 1 | LED31 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J31 |
| 1 | LED32 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J32 |
| 4 | JST-XH_02_Pin_vertical | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J33, J34, J35, J36 |
| 1 | PWR | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J102 |
| 1 | Dim | JST_XH_B5B-XH-A_1x05_P2.50mm_Vertical | J103 |
| 4 | 5k | Potentiometer_Bochen_3362P_Vertical | RV1, RV2, RV3, RV4 |
| 2 | D_Schottky_B5819W-SL | D_SOD-123 | D1, D2 |
| 4 | 100n | C_0805_2012Metric | C1, C2, C3, C4 |
| 1 | 47u | CP_EIA-3528-21_Kemet-B | C5 |
| 4 | 470 | R_0805_2012Metric | R1, R2, R3, R4 |
| 4 | 1k | R_0805_2012Metric | R5, R6, R7, R8 |
LED Driver Board design files
The KiCad project lives in the MobiFlight/mobiflight-pcbs repository on GitHub; these links point at the commit this page was built from.
LED Driver Board: common questions
How big is the LED Driver Board?
The LED Driver Board measures 80 × 80 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LED Driver Board?
61 components, from 42 distinct parts. The full bill of materials is listed on this page.
Where can I download the LED Driver Board design files?
From the MobiFlight/mobiflight-pcbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the LED Driver Board design in my own project?
The repository has no license, so all rights stay with MobiFlight. Use it as a reference, and ask the author before reusing the design.
