MobiFlight Prototyping Board
About the MobiFlight Prototyping Board
MobiFlight Prototyping Board is an open source PCB design by MobiFlight, published on GitHub. It is a 2-layer board measuring 80 × 80 mm, with 41 components from 7 distinct parts.
By type, the board carries 39 connectors, 1 switch and 1 diode.
It belongs with the robotics & motion, displays & leds and dev boards & breakouts designs in this gallery.
From the project
PCBs and breakout boards, designed by the MobiFlight community

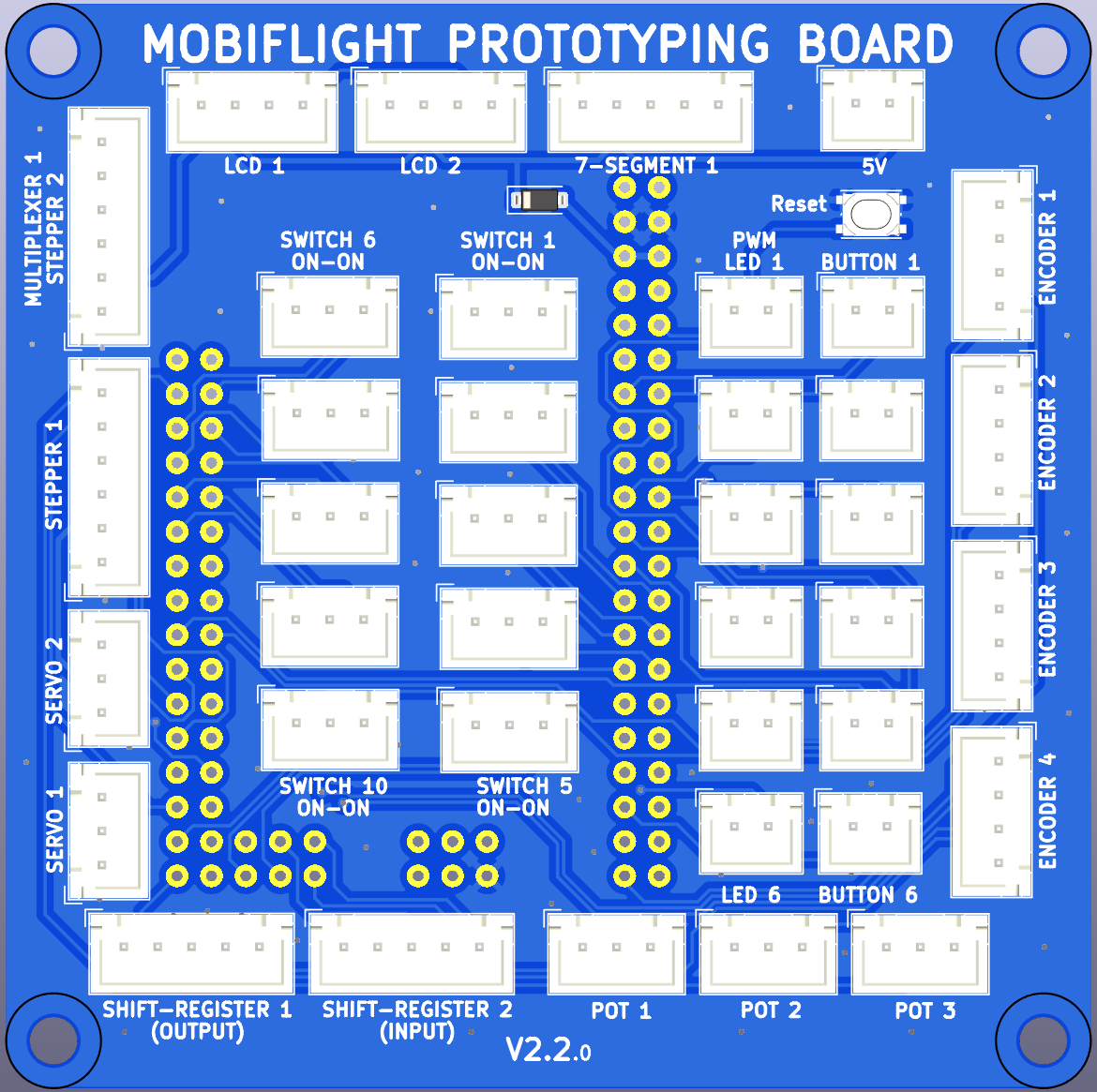

The MobiFlight Prototyping Board is compatible with Arduino Mega 2560 Pro Mini that is attached to the back of the board.
There are two configurations available (latest v2.1): * Standard - prototyping-board.mfmc
All buttons from Button 01 to Button-06 are available, and Stepper 1 and Stepper 2 can be both used for steppers * Multiplexer - prototyping-board.multiplexer.mfmc
MobiFlight Prototyping Board bill of materials (BOM)
41 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 13 | Conn_01x02 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J1, J2, J3, J4, J5, J6, J7, J8 +5 |
| 15 | Conn_01x03 | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J11, J12, J13, J14, J15, J16, J17, J18 +7 |
| 2 | Conn_01x06 | JST_XH_B6B-XH-A_1x06_P2.50mm_Vertical | J23, J24 |
| 6 | Conn_01x04 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J25, J26, J30, J31, J32, J39 |
| 3 | Conn_01x05 | JST_XH_B5B-XH-A_1x05_P2.50mm_Vertical | J27, J28, J29 |
| 1 | Switch_SMD_5x5_Wuerth | SW_Push_1P1T_NO_Vertical_Wuerth_434133025816 | SW1 |
| 1 | D_Schottky_B5819W-SL | D_SOD-123 | D1 |
MobiFlight Prototyping Board design files
The KiCad project lives in the MobiFlight/mobiflight-pcbs repository on GitHub; these links point at the commit this page was built from.
MobiFlight Prototyping Board: common questions
How big is the MobiFlight Prototyping Board?
The MobiFlight Prototyping Board measures 80 × 80 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MobiFlight Prototyping Board?
41 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the MobiFlight Prototyping Board design files?
From the MobiFlight/mobiflight-pcbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MobiFlight Prototyping Board design in my own project?
The repository has no license, so all rights stay with MobiFlight. Use it as a reference, and ask the author before reusing the design.
