Mf breakout-74hc4067-smd
About the Mf breakout-74hc4067-smd
Mf breakout-74hc4067-smd is an open source PCB design by MobiFlight, published on GitHub. It is a 2-layer board measuring 80 × 80 mm, with 43 components from 8 distinct parts.
By type, the board carries 35 connectors, 3 capacitors, 2 resistors and 1 diode.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
PCBs and breakout boards, designed by the MobiFlight community

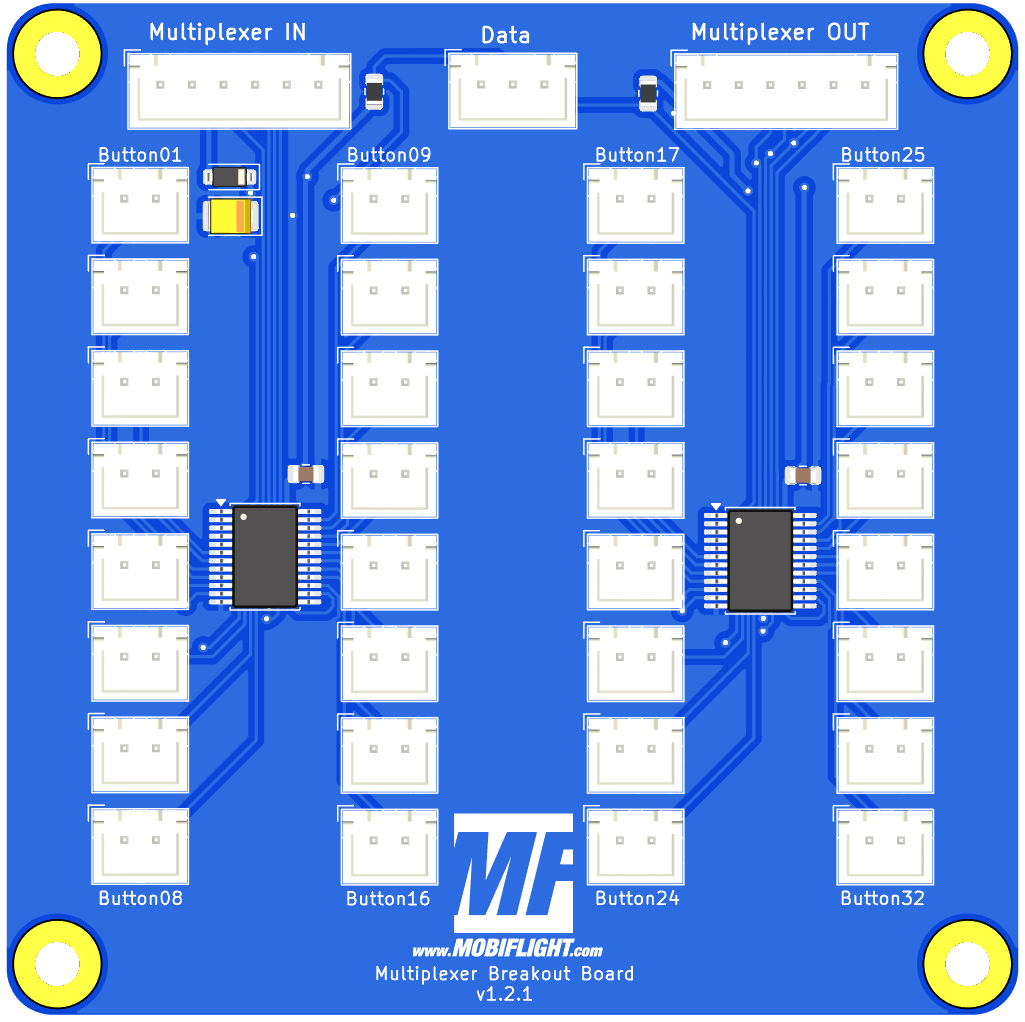

On the top side, The board uses XH JST connectors for the individual inputs.
From Version 1.2 now shows information about the orientation and all important pins are labeled. You can daisy chain the boards.
For more information on how to configure the board with MobiFlight, check out the MobiFlight Connector documentation.
Pin1 - GND Pin2 - VCC Pin3 - Channel 1 Pin4 - Channel 2 Pin5 - Channel 3 Pin6 - Channel 4
Mf breakout-74hc4067-smd bill of materials (BOM)
43 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | C5663 JST-XH_06_Pin_vertical | JST_XH_B6B-XH-A_1x06_P2.50mm_Vertical | J1, J2 |
| 1 | JST-XH_03_Pin_vertical | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J3 |
| 32 | C20079 JST-XH_02_Pin_vertical | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J5, J6, J7, J8, J9, J10, J11, J12 +24 |
| 2 | C98457 CD74HC4067SM | SSOP-24_5.3x8.2mm_P0.65mm | MUX1, MUX2 |
| 1 | D_Schottky_B5819W-SL | D_SOD-123 | D1 |
| 2 | C28233 100nF | C_0805_2012Metric | C1, C2 |
| 1 | C_Polarized_Tantal_47u | CP_EIA-3528-21_Kemet-B | C3 |
| 2 | C17673 4.7k | R_0805_2012Metric | R1, R2 |
Mf breakout-74hc4067-smd design files
The KiCad project lives in the MobiFlight/mobiflight-pcbs repository on GitHub; these links point at the commit this page was built from.
Mf breakout-74hc4067-smd: common questions
How big is the Mf breakout-74hc4067-smd?
The Mf breakout-74hc4067-smd measures 80 × 80 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Mf breakout-74hc4067-smd?
43 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the Mf breakout-74hc4067-smd design files?
From the MobiFlight/mobiflight-pcbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Mf breakout-74hc4067-smd design in my own project?
The repository has no license, so all rights stay with MobiFlight. Use it as a reference, and ask the author before reusing the design.
