Rotary switch board
About the Rotary switch board
Rotary switch board is an open source PCB design by MobiFlight, published on GitHub. It is a 2-layer board measuring 27.3 × 29.3 mm, with 11 components from 5 distinct parts.
By type, the board carries 8 resistors, 1 connector, 1 switch and 1 capacitor.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
PCBs and breakout boards, designed by the MobiFlight community

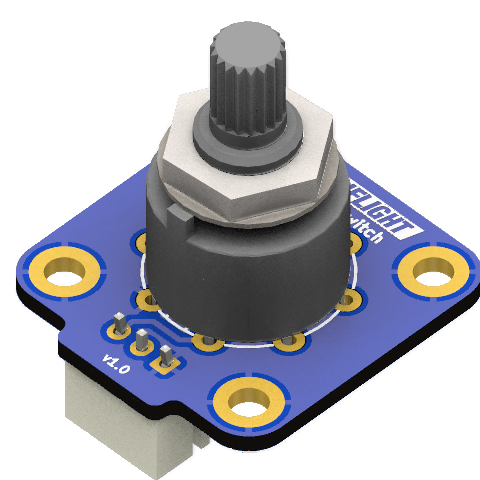

This module uses the "SR16" rotary switch that can be found in 2 to 8 position variants, with 45 degree rotation between positions.
The board has a resistor ladder and should be wired to an analog input like it was in the potentiometer. Each switch position will have a fixed analog value.
The switch has a panel mount thread and a nut, so the 20x20 is just an alternative way to mount it the same way as the other 20x20mm mounted boards.
Rotary switch board bill of materials (BOM)
11 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x03 | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J1 |
| 1 | SW_Rotary_1x8_MP | SWITCH_SR16 | SW1 |
| 1 | 2.2uF Samsung Electro-Mechanics | C_0603 | C1 |
| 7 | 1kΩ UNI-ROYAL(Uniroyal Elec) | R_0603 | R1, R2, R3, R4, R5, R6, R7 |
| 1 | 100Ω UNI-ROYAL(Uniroyal Elec) | R_0603 | R8 |
Rotary switch board design files
The KiCad project lives in the MobiFlight/mobiflight-pcbs repository on GitHub; these links point at the commit this page was built from.
Rotary switch board: common questions
How big is the Rotary switch board?
The Rotary switch board measures 27.3 × 29.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rotary switch board?
11 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rotary switch board design files?
From the MobiFlight/mobiflight-pcbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Rotary switch board design in my own project?
The repository has no license, so all rights stay with MobiFlight. Use it as a reference, and ask the author before reusing the design.
