Input shifter board

MobiFlight·mobiflight-pcbs·input-shifter-board/input-shifter-board.kicad_pcb

Input shifter board layout, top view — open source board by MobiFlight

About the Input shifter board

Input shifter board is an open source PCB design by MobiFlight, published on GitHub. It is a 2-layer board measuring 80 × 80 mm, with 138 components from 66 distinct parts.

Other key parts include the 74HC165. By type, the board carries 64 resistors, 33 connectors, 32 diodes, 5 capacitors and 4 ICs.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

PCBs and breakout boards, designed by the MobiFlight community

The board uses XH JST connectors for the individual buttons and for connecting to the Prototyping Board. Four 8 bit input shift register are daisy chained. Each input has a LED beside the connector which indicates if the button is pressed.

For more information on how to configure the board with MobiFlight, check out the MobiFlight Connector documentation.

Pin1 - GND Pin2 - VCC Pin3 - Latch Pin4 - Clock * Pin5 - Data

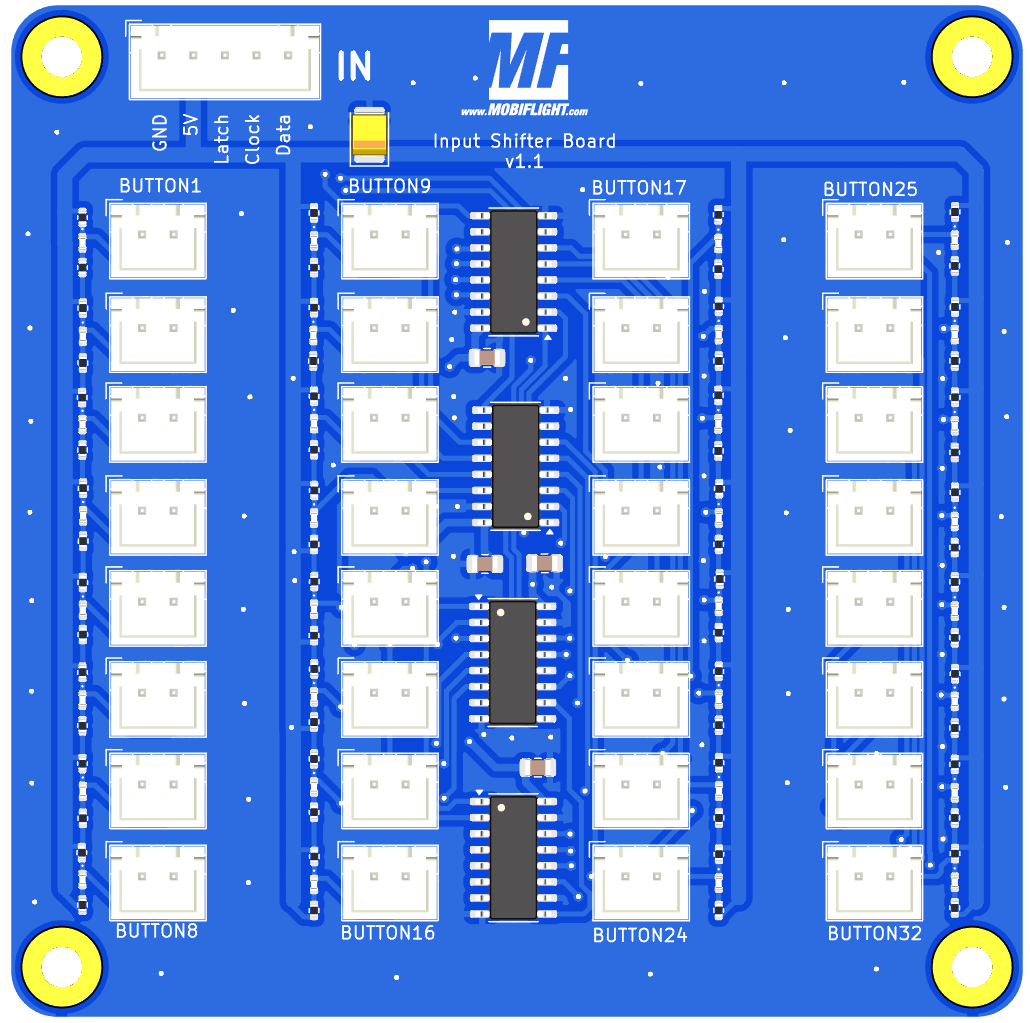

Input shifter board, from the project README
From the project README

Main components on the Input shifter board

Input shifter board bill of materials (BOM)

138 components, 66 distinct parts.

QtyPartRefs
4
74HC165
U1, U2, U3, U4
1
BUTTON0
J1
1
BUTTON2
J2
1
BUTTON3
J3
1
BUTTON4
J4
1
BUTTON5
J5
1
BUTTON6
J6
2
BUTTON7
J7, J8
1
BUTTON8
J9
1
BUTTON10
J10
1
BUTTON11
J11
1
BUTTON12
J12
1
BUTTON13
J13
1
BUTTON14
J14
2
BUTTON15
J15, J16
1
BUTTON16
J17
1
BUTTON18
J18
1
BUTTON19
J19
1
BUTTON20
J20
1
BUTTON21
J21
Show 46 more
QtyPartRefs
1
BUTTON22
J22
2
BUTTON23
J23, J24
1
BUTTON24
J25
1
BUTTON26
J26
1
BUTTON27
J27
1
BUTTON28
J28
1
BUTTON29
J29
1
BUTTON30
J30
2
BUTTON31
J31, J32
1
Data
J33
1
LED1
D1
1
LED2
D2
1
LED3
D3
1
LED4
D4
1
LE5
D5
1
LED6
D6
1
LED7
D7
1
LED8
D8
1
LED9
D9
1
LED10
D10
1
LED11
D11
1
LED12
D12
1
LED13
D13
1
LED14
D14
1
LED15
D15
1
LED16
D16
1
LED17
D17
1
LED18
D18
1
LED19
D19
1
LED20
D20
1
LED21
D21
1
LED22
D22
1
LED23
D23
1
LED24
D24
1
LED25
D25
1
LED26
D26
1
LED27
D27
1
LED28
D28
1
LED29
D29
1
LED30
D30
1
LED31
D31
1
LED32
D32
4
100n
C1, C2, C3, C4
1
47u
C5
32
470
R1, R2, R3, R4, R5, R6, R7, R8 +24
32
10k
R101, R102, R103, R104, R105, R106, R107, R108 +24

Input shifter board design files

The KiCad project lives in the MobiFlight/mobiflight-pcbs repository on GitHub; these links point at the commit this page was built from.

Input shifter board: common questions

How big is the Input shifter board?

The Input shifter board measures 80 × 80 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Input shifter board?

138 components, from 66 distinct parts. The full bill of materials is listed on this page.

Where can I download the Input shifter board design files?

From the MobiFlight/mobiflight-pcbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Input shifter board design in my own project?

The repository has no license, so all rights stay with MobiFlight. Use it as a reference, and ask the author before reusing the design.
