nickbits1024·WaterRowerLinkPlus·hardware/pcb/PCB.kicad_pcb

WaterRowerLinkPlus PCB layout, top view — open source ESP32 board by nickbits1024
Simulate this board

About the WaterRowerLinkPlus PCB

WaterRowerLinkPlus is an open source ESP32 PCB design by nickbits1024, published on GitHub under the MIT license. It is a 2-layer board measuring 55 × 95 mm, with 47 components from 27 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the AP7361C-33E, CP2102N-Axx-xQFN24, LM3525M-H, D52Q and SP0506BAATG. By type, the board carries 16 capacitors, 12 resistors, 6 ICs, 4 switches, 3 transistors and 3 connectors.

It belongs with the iot & wireless, wearables and displays & leds designs in this gallery.

From the project

Bluetooth module for WaterRowers

[^1]: The LM3525M must be soldered to the SOIC-8 TO DIP first [^2]: This part is EOL at Digi-Key. I do not know if there is a compatible replacement.

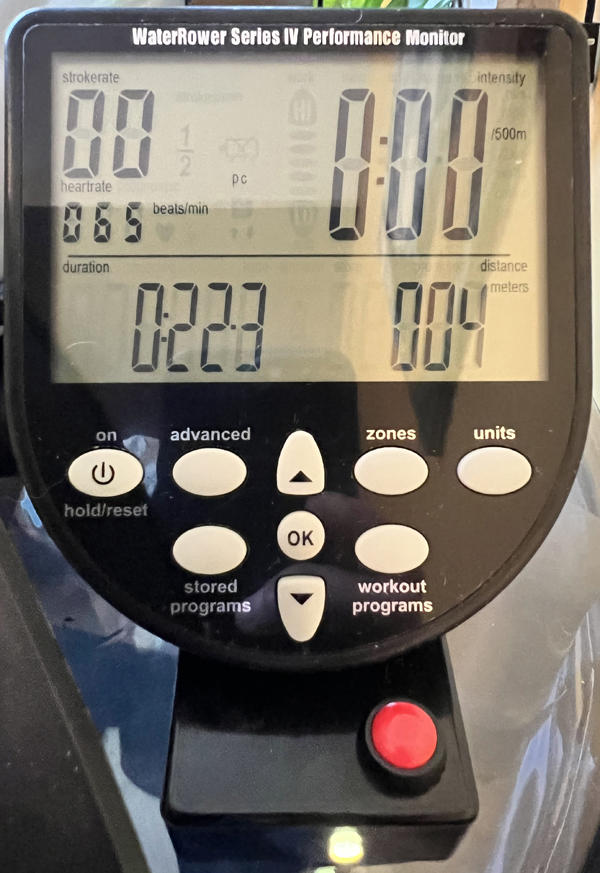

WaterRowerLinkPlus, from the project README
From the project README

Main components on the WaterRowerLinkPlus

ESP32-S3-WROOM-1AP7361C-33ECP2102N-Axx-xQFN24LM3525M-HD52QSP0506BAATG

WaterRowerLinkPlus bill of materials (BOM)

47 components, 27 distinct parts.

QtyPartRefs
1
ESP32-S3-WROOM-1
U1
1
AP7361C-33E
U2
1
CP2102N-Axx-xQFN24
U3
1
LM3525M-H
U4
1
D52Q
U5
1
SP0506BAATG
U6
1
BSS138
Q1
2
MMBT3904
Q2, Q3
1
AudioJack3
J1
1
USB_A
J2
1
USB_B_Micro
J3
1
RESET
SW1
1
BOOT
SW2
1
RESET
SW3
1
S4
SW4
1
SK6812
D1
1
1N5819
D2
1
RED LED
D3
8
0.1uF
C1, C3, C4, C5, C7, C10, C12, C14
2
1uF
C2, C16
Show 7 more
QtyPartRefs
2
10uF
C6, C15
4
4.7uF
C8, C9, C11, C13
7
10K
R1, R3, R4, R5, R8, R9, R11
2
1K
R2, R6
1
47K
R7
1
22K
R10
1
5.1K
R12

WaterRowerLinkPlus design files

The KiCad project lives in the nickbits1024/WaterRowerLinkPlus repository on GitHub; these links point at the commit this page was built from.

WaterRowerLinkPlus: common questions

What microcontroller does the WaterRowerLinkPlus use?

The WaterRowerLinkPlus is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the WaterRowerLinkPlus PCB?

The WaterRowerLinkPlus measures 55 × 95 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WaterRowerLinkPlus?

47 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the WaterRowerLinkPlus design files?

From the nickbits1024/WaterRowerLinkPlus repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the WaterRowerLinkPlus design in my own project?

Yes, under the terms of its MIT license, which nickbits1024 chose for the repository.

Can I test firmware for the WaterRowerLinkPlus without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
