About the Whitefox PCB

Whitefox is an open source RP2040/RP2350 PCB design by nxrmqlly, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 41 × 61.6 mm, with 73 components from 26 distinct parts.

Its main chip is the RP2350B-QFN80, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS, AMS1117-3.3, TP4056-42-ESOP8 and USBLC6-2P6. By type, the board carries 34 capacitors, 11 diodes, 11 resistors, 6 ICs, 6 connectors and 2 switches.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

rp2350b chonky devboard

whitefox is a Raspberry Pi RP2350B based devboard with 47 exposed GPIO, a 3x3 neopixel grid, a charging circuit and a MicroSD card reader onboard! Some may even say that it is batteries included but sorry we don't include batteries :(

I wanted to have a go at making a devboard so I initially thought of using the RP2040 Chip but that thing is old now and very overused so here we are with the RP2040's successor, the RP2350! Most RP2350 boards (like the Raspberry Pi Pico 2) use the QFN-60 layout on the RP2350A chip and I haven't really seen devboards use the RP2350B, which is a QFN-80 chip…

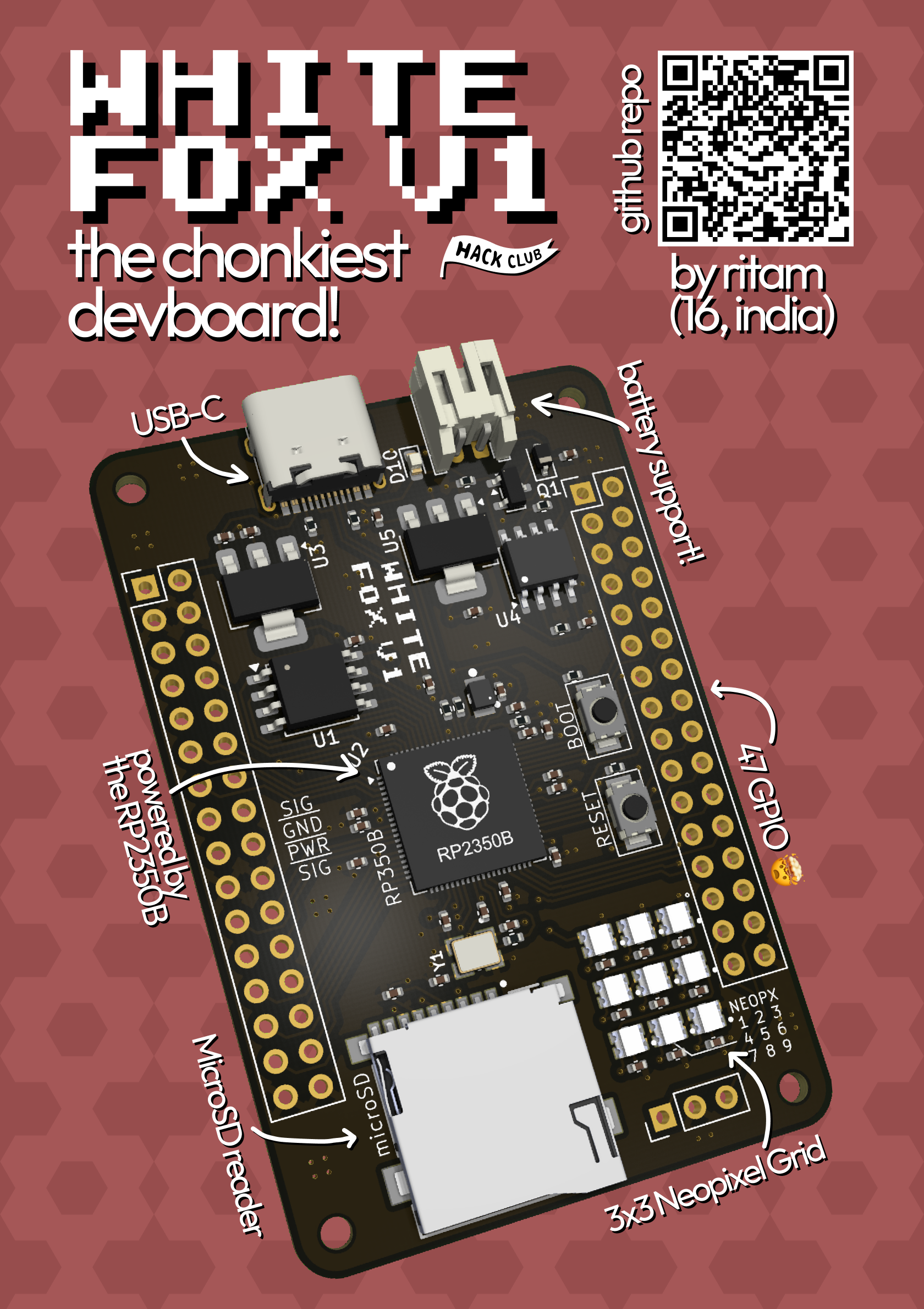

Whitefox, from the project README — From the project README

Main components on the Whitefox

W25Q128JVS RP2350B-QFN80 AMS1117-3.3 TP4056-42-ESOP8 USBLC6-2P6

Whitefox bill of materials (BOM)

73 components, 26 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	W25Q128JVS	SOIC-8_5.3x5.3mm_P1.27mm	U1
1	RP2350B-QFN80	QFN-80-1EP_10x10mm_P0.4mm_EP3.4x3.4mm	U2
2	AMS1117-3.3	SOT-223-3_TabPin2	U3, U5
1	TP4056-42-ESOP8	SOIC-8-1EP_3.9x4.9mm_P1.27mm_EP2.41x3.3mm_ThermalVias	U4
1	USBLC6-2P6	SOT-666	U6
1	AO3401A	SOT-23	Q1
1	Crystal_GND24	XTAL_ABM8-272-T3	Y1
1	Micro_SD_Card	TF-01A	J1
2	Conn_02x16_Odd_Even	PinHeader_2x16_P2.54mm_Vertical	J2, J3
1	Conn_01x03_MountingPin	PinHeader_1x03_P2.54mm_Vertical	J4
1	USB_C_Receptacle_USB2.0_16P	TYPE-C-31-M-12	J5
1	Conn_01x02	JST_PH_S2B-PH-K_1x02_P2.00mm_Horizontal	J6
2	SW_Push	TS-1088-ARXXX	SW1, SW2
9	WS2812B-2020	LED_WS2812C-2020	D1, D2, D3, D4, D5, D6, D7, D8 +1
1	LED	LED_0603_1608Metric	D10
1	1N5819WS	D_SOD-323	D11
1	3.3u	IND-SMD_L2.0-W1.6_AOTA-B201610S3R3-101-T	L1
22	100n	C_0402_1005Metric	C1, C3, C4, C5, C6, C7, C8, C9 +14
4	4.7u	C_0402_1005Metric	C2, C14, C15, C16
2	33p	C_0402_1005Metric	C17, C19

Show 6 more

Qty	Part	Footprint	Refs
6	10u	C_0402_1005Metric	C29, C30, C31, C32, C33, C34
4	1k	R_0402_1005Metric	R1, R4, R6, R7
1	33	R_0402_1005Metric	R2
2	27	R_0402_1005Metric	R3, R5
3	5.1k	R_0402_1005Metric	R8, R10, R11
1	10k	R_0402_1005Metric	R9

Whitefox design files

The KiCad project lives in the nxrmqlly/whitefox repository on GitHub; these links point at the commit this page was built from.

Whitefox: common questions

What microcontroller does the Whitefox use?

The Whitefox is built around the RP2350B-QFN80, from the RP2040/RP2350 family.

How big is the Whitefox PCB?

The Whitefox measures 41 × 61.6 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Whitefox?

73 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Whitefox design files?

From the nxrmqlly/whitefox repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Whitefox design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which nxrmqlly chose for the repository.

Can I test firmware for the Whitefox without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
