TERES PCB1-A64-MAIN Rev.C

OLIMEX·DIY-LAPTOP·HARDWARE/A64-TERES/TERES-PCB1-A64-MAIN/Rev.C/TERES_PCB1-A64-MAIN_Rev.C.kicad_pcb

TERES PCB1-A64-MAIN Rev.C PCB layout, top view — open source board by OLIMEX

About the TERES PCB1-A64-MAIN Rev.C PCB

TERES PCB1-A64-MAIN Rev.C is an open source PCB design by OLIMEX, published on GitHub under the Apache-2.0 license. It is a 6-layer board measuring 117 × 89 mm, with 425 components from 105 distinct parts.

Other key parts include the AllWinner-A64(FBGA396), RCLAMP0524P(SLP2510P8), MTFC4GACAANA-4M_IT(TBGA100), TS5A23159 and SY6280AAC(SOT23-5). By type, the board carries 216 capacitors, 117 resistors, 25 inductors, 21 ICs, 4 transistors and 4 connectors.

It belongs with the audio designs in this gallery.

From the project

Do It Yourself Open Source Hardware and Software Modular Hacker's Friendly Laptop

All hardware schematics and board files are designed using KiCad open-source CAD software.

You may download KiCad and open for reviewing or editing each of the PCB files. The schematics are also available as PDF files for easier viewing and/or printing.

NOTE: Please use the latest KiCad nightly development build, as the latest stable build may not have all required features.

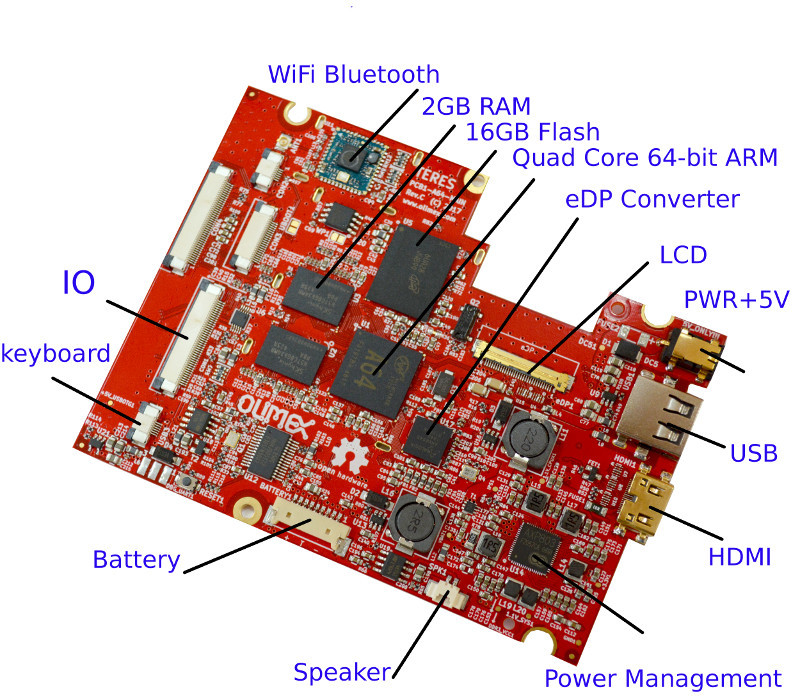

TERES PCB1-A64-MAIN Rev.C, from the project README — From the project README

Main components on the TERES PCB1-A64-MAIN Rev.C

AllWinner-A64(FBGA396)RCLAMP0524P(SLP2510P8)MTFC4GACAANA-4M_IT(TBGA100)TS5A23159SY6280AAC(SOT23-5)RTL8723BS(ComboModule)GL850G-SO28MT3608(SOT23-6)AXP803(QFN68_8x8mm)ANX6345TS4871W25Q128FVSSIG

TERES PCB1-A64-MAIN Rev.C bill of materials (BOM)

425 components, 105 distinct parts.

Qty	Part	Footprint	Refs
1	AllWinner-A64(FBGA396)	FBGA396	U1
2	K4B4G1646Q-HYK0(FBGA-96_256Mx16_DDR3-1600_11-11-11)	FBGA96(HYNIX_SAMSUNG_512MX16_DDR3)	U2, U3
5	RCLAMP0524P(SLP2510P8)	SLP2510P8	U4, U7, U8, U10, U15
1	MTFC4GACAANA-4M_IT(TBGA100)	TBGA100	U5
1	TS5A23159	VSSOP-10	U6
2	SY6280AAC(SOT23-5)	SOT-23-5	U9, U21
1	RTL8723BS(ComboModule)	RL-SM02BD(RTL8723BS)	U11
1	GL850G-SO28	SSOP28	U12
2	MT3608(SOT23-6)	SOT23-6	U13, U16
1	AXP803(QFN68_8x8mm)	QFN68	U14
1	ANX6345	BGA_8x8mm_81p_0.8	U17
2	TS4871	SO-8	U18, U19
1	W25Q128FVSSIG	SO-8_208mil	U20
1	12MHz-20pf	TSX-3.2x2.5mm_GND(3)	Q1
1	MC-306_32.768KHZ/SMD_8038/6pF	MC306-HS	Q2
1	4SB24.000F20E15/5x3.2mm/20ppm/20pF	Q5x3.25	Q3
1	27.000MHz/20ppm	TSX-3.2x2.5mm_GND(3)	Q4
2	CONN_01X40	FPV-WZA21-40-LF	CON1, CON4
1	CONN_01X06	FLEXCON-0.5-6	CON2
1	CONN_01X20	FPV-WZA21-20-LF	CON3

Show 85 more

Qty	Part	Footprint	Refs
1	PCB_WIFI_ANT	U.FL-R-SMT-1	ANT1
1	BATTCON	BATCONN-TERES	BATTERY1
1	NA(HN1x3)	HN1x3(SMD)	DBG_UART1
1	PWR-JACK-THERES	DC-055-TERES	DC5
1	BSS138(SOT23-3)	SOT23	FET1
1	FSMD035	FUSE-1206	FUSE1
1	NA(5025)	FUSE-5025	FUSE2
1	TCS40DPR	SOT23	HALLSW1
1	HDMI-SWM-19	HDMI-MINI-TERES	HDMI1
9	TESTPAD	Oval_Drill	HOLE1, HOLE2, HOLE3, HOLE4, HOLE5, HOLE6, HOLE7, HOLE8 +1
1	IT1185AU2	uTACTIL	RESET1
3	RA1206_(4x0603)_4B8_100k	R_MATRIX_4	RM7, RM9, RM12
1	SPK1	CON-SPK-TERES	SPK1
1	WPM1481(DFN2X2-6L)	DFN2x2-6L	T1
1	DTC114YKA(SOT-23)	SOT23	T2
2	Open	SJ	UBOOT1, WP1
1	USB_A_THERES	USB-A-TERES	USB1
1	USB3	FLEXCON-0.5-6	USB3
1	LCD_CONN	eDP-TERES	eDP1
1	LED/RED/0603	LED_0603_KA	CHGLED1
2	GREEN	LED_0603_KA	LED1, LED2
1	LED/Green/0603	LED_0603_KA	PWRLED1
1	SMBJ6.0A	DO214AA	D1
3	1N5822/SS34/SMA	SMA-KA	D2, D3, D4
6	FB0603/600R/200mA	L_0603_5MIL_DWS	FB1, FB2, FB3, FB4, FB5, L4
10	FB0805/600R/2A	L_0805_5MIL_DWS	L1, L2, L3, L5, L6, L8, L9, L10 +2
1	HSMRH103R-220M	HSMRH103R	L11
1	3.3nH	R_0402_5MIL_DWS	L13
3	SWPA3015S1R5NT(1.5uH/2.30A/DCR<0.1R/CD32)	CD32	L14, L19, L20
3	SWPA4018S1R5NT(1.5uH/3.35A/DCR<0.1R/CD43)	CD42(43)	L15, L17, L18
1	HSMRH103R-2R5M	HSMRH103R	L16
82	100nF	C_0402_5MIL_DWS	C1, C2, C3, C4, C6, C7, C8, C9 +74
60	10uF/6.3V/0603	C_0603_5MIL_DWS	C5, C10, C16, C21, C26, C42, C47, C49 +52
24	1uF/6.3V/0603	C_0603_5MIL_DWS	C27, C36, C38, C43, C45, C55, C71, C72 +16
4	4.7uF/6.3V	C_0603_5MIL_DWS	C41, C62, C93, C101
4	100nF/6.3V	C_0402_5MIL_DWS	C48, C63, C96, C104
2	2.2uF/6.3V/0603	C_0603_5MIL_DWS	C56, C61
4	10nF/6.3V	C_0402_5MIL_DWS	C58, C80, C97, C111
10	47uF/6.3V/0805	C_0805_5MIL_DWS	C64, C68, C77, C78, C118, C119, C180, C213 +2
1	10uF	C_0603_5MIL_DWS	C76
5	22uF/6.3V	C_0603_5MIL_DWS	C84, C95, C103, C108, C205
1	10uF	R_0603_5MIL_DWS	C85
1	1uF	C_0603_5MIL_DWS	C87
4	33pF	C_0402_5MIL_DWS	C88, C94, C185, C187
2	22pF	C_0402_5MIL_DWS	C99, C100
3	10pF	C_0402_5MIL_DWS	C105, C183, C184
1	0.8pF	C_0402_5MIL_DWS	C106
1	1.5pF	C_0402_5MIL_DWS	C107
1	NA(10uF/6.3V/0603)	C_0603_5MIL_DWS	C174
2	47uF	C_0805_5MIL_DWS	C193, C198
2	100pF	C_0402_5MIL_DWS	C199, C200
2	22uF/25V	C_1206_5MIL_DWS	C204, C206
6	2k/1%	R_0402_5MIL_DWS	R1, R5, R8, R11, R12, R74
1	100R/1%	R_0402_5MIL_DWS	R2
19	22R	R_0402_5MIL_DWS	R3, R4, R33, R34, R41, R42, R54, R58 +11
11	NA	R_0402_5MIL_DWS	R6, R62, R70, R71, R72, R73, R76, R79 +3
3	240R/1%	R_0402_5MIL_DWS	R7, R9, R10
2	NA(243R/1%)	R_0402_5MIL_DWS	R13, R14
4	47K	R_0402_5MIL_DWS	R15, R44, R46, R67
2	(na)100K	R_0402_5MIL_DWS	R16, R17
2	1M	R_0402_5MIL_DWS	R18, R32
1	22.1K /1%	R_0402_5MIL_DWS	R19
2	1.1k/1%	R_0402_5MIL_DWS	R20, R81
16	10k	R_0402_5MIL_DWS	R21, R23, R31, R39, R40, R43, R48, R52 +8
7	1k	R_0402_5MIL_DWS	R22, R25, R28, R64, R86, R89, R92
2	NA(10K)	R_0402_5MIL_DWS	R24, R61
4	1.5k	R_0402_5MIL_DWS	R26, R29, R55, R56
1	200k/1%	R_0402_5MIL_DWS	R27
3	100k	R_0402_5MIL_DWS	R30, R35, R53
1	0R(Board_Mounted)	0R_0603	R36
2	220R	R_0402_5MIL_DWS	R37, R38
1	680R/1%	R_0603_5MIL_DWS	R45
9	2.2k	R_0402_5MIL_DWS	R47, R50, R82, R87, R88, R90, R94, R99 +1
1	10k/1%	R_0402_5MIL_DWS	R49
4	4.7k	R_0402_5MIL_DWS	R51, R75, R77, R111
2	22.1K/1%	R_0402_5MIL_DWS	R59, R65
2	NA(0R)	R_0402_5MIL_DWS	R60, R91
2	12k/1%	R_0402_5MIL_DWS	R63, R66
1	0.01R/1%/1206	R_1206_5MIL_DWS	R78
1	8.25k/1%	R_0402_5MIL_DWS	R80
1	12K_1%	R_0402_5MIL_DWS	R83
1	na(1k)	R_0402_5MIL_DWS	R84
1	10M	R_0402_5MIL_DWS	R93
1	150K	R_0402_5MIL_DWS	R107
1	13k/1%	R_0402_5MIL_DWS	R114

TERES PCB1-A64-MAIN Rev.C design files

The KiCad project lives in the OLIMEX/DIY-LAPTOP repository on GitHub; these links point at the commit this page was built from.

LayoutHARDWARE/A64-TERES/TERES-PCB1-A64-MAIN/Rev.C/TERES_PCB1-A64-MAIN_Rev.C.kicad_pcb

TERES PCB1-A64-MAIN Rev.C: common questions

How big is the TERES PCB1-A64-MAIN Rev.C PCB?

The TERES PCB1-A64-MAIN Rev.C measures 117 × 89 mm, has 6 copper layers and is 1.2 mm thick.

How many components are on the TERES PCB1-A64-MAIN Rev.C?

425 components, from 105 distinct parts. The full bill of materials is listed on this page.

Where can I download the TERES PCB1-A64-MAIN Rev.C design files?

From the OLIMEX/DIY-LAPTOP repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the TERES PCB1-A64-MAIN Rev.C design in my own project?

Yes, under the terms of its Apache-2.0 license, which OLIMEX chose for the repository.
