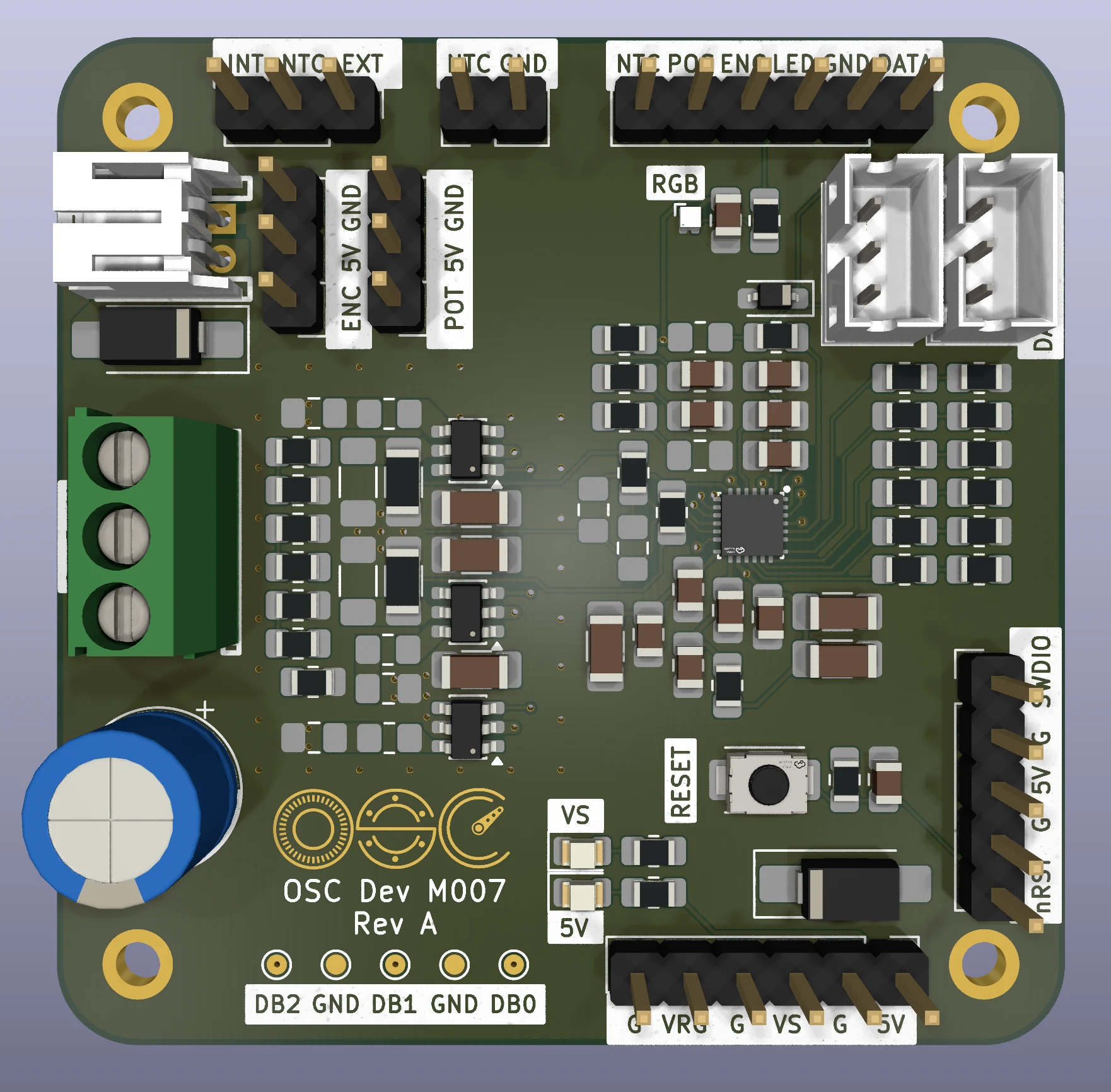

Osc dev m007 PCB layout, top view — open source board by OpenServoCore

About the Osc dev m007 PCB

Osc dev m007 is an open source PCB design by OpenServoCore, published on GitHub under the Apache-2.0 license. It is a 6-layer board measuring 50 × 50 mm, with 78 components from 29 distinct parts.

Other key parts include the CH32M007E8U7. By type, the board carries 33 resistors, 25 capacitors, 4 connectors, 4 diodes, 3 transistors and 2 LEDs.

It belongs with the robotics & motion, sensors and power & battery designs in this gallery.

From the project

The goal of this project is to create an open servo controller board and firmware.

The development board for OpenServoCore's M007 servo brain. One chip - the CH32M007, 3 × 3 mm - contains the microcontroller, the motor gate driver, the current-sense amplifier, and the 5 V regulator. Add six small MOSFETs and it drives a brushed servo motor (SG90/MG90 class) or a small 3-phase BLDC, measures motor current, reads a position sensor, and talks on a single-wire bus.

Osc dev m007, from the project README
From the project README

Main components on the Osc dev m007

CH32M007E8U7

Osc dev m007 bill of materials (BOM)

78 components, 29 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CH32M007E8U7
U201
3
SIL3724A-TP
Q401, Q601, Q801
1
BLDC/BDC(A+B)
J301
1
JST-PH-H
J901
2
JST-PH-V
J1101, J1102
2
75m
R_SH501, R_SH701
2
150m
R_SH502, R_SH702
1
RESET
SW201
1
10k 3950K
TH1001
1
YELLOW
LED901
1
GREEN
LED902
1
STAT
D201
2
SS54
D901, D902
1
PESD5V0L1BA
D1101
2
2.2uF
C201, C202
6
0.1uF
C203, C206, C209, C210, C1002, C1003
6
10uF
C204, C205, C208, C401, C601, C801
1
1uF
C207
1
470uF 25V
C301
9
1nF
C402, C403, C501, C602, C603, C701, C802, C803 +1
Show 9 more
QtyPartRefs
9
0
R201, R401, R402, R501, R601, R602, R701, R801 +1
7
10k
R202, R406, R606, R806, R902, R1001, R1102
1
100
R203
6
100k
R403, R404, R603, R604, R803, R804
3
20k
R405, R605, R805
3
10
R407, R607, R807
1
22k
R901
2
4.7k
R1002, R1003
1
33
R1101

Osc dev m007 design files

The KiCad project lives in the OpenServoCore/open-servo-core repository on GitHub; these links point at the commit this page was built from.

Osc dev m007: common questions

How big is the Osc dev m007 PCB?

The Osc dev m007 measures 50 × 50 mm, has 6 copper layers and is 1.579 mm thick.

How many components are on the Osc dev m007?

78 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Osc dev m007 design files?

From the OpenServoCore/open-servo-core repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Osc dev m007 design in my own project?

Yes, under the terms of its Apache-2.0 license, which OpenServoCore chose for the repository.
