Radioberry
About the Radioberry PCB
Radioberry is an open source FPGA PCB design by pa3gsb, published on GitHub. It is a 4-layer board measuring 65 × 56 mm, with 143 components from 32 distinct parts.
Its main chip is the FPGA, from the FPGA family. Other key parts include the LD1117S25, LD1117S33, LD1117S12 and AD9866. By type, the board carries 97 capacitors, 16 inductors, 10 resistors, 6 ICs, 3 crystals and 2 connectors.
It belongs with the rf & radio and dev boards & breakouts designs in this gallery.
From the project

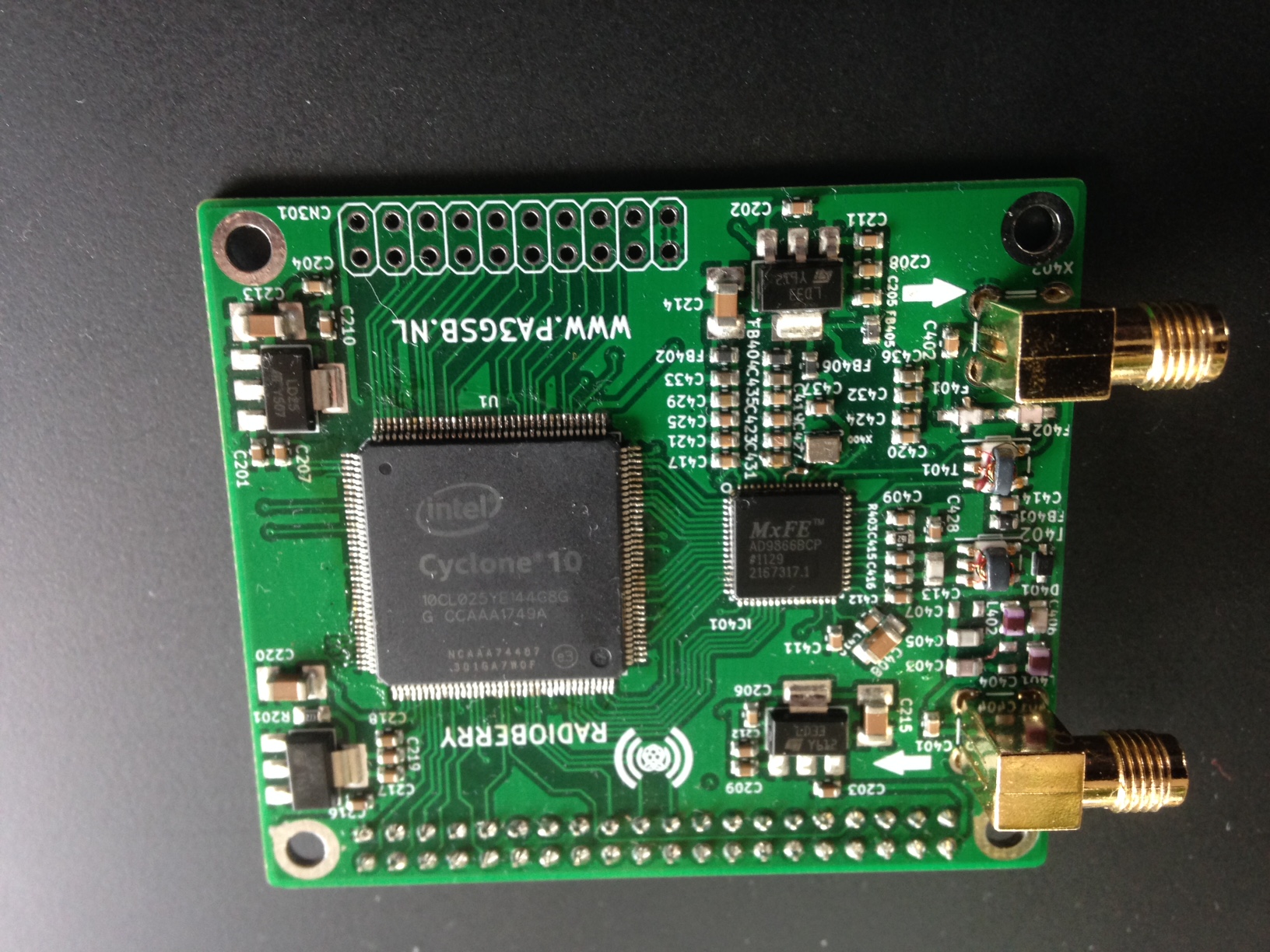

Ham Radio hat for Raspberry PI
RadioBerry V2.0 - Ham radio cape for Raspberry PI ==============================================
- Building a HAM Radio - Learning (from noob to guru)
WIKI FOR MORE DETAILS: https://github.com/pa3gsb/Radioberry-2.x/wiki
- Raspberry PI - Radio extension board (cape) - using AD9866 (12 bit) for RX and TX modes.
Radioberry is designed to run on Raspberry Pi hardware and is licensed to use the official “Powered by Raspberry Pi” logo.
Main components on the Radioberry
Radioberry bill of materials (BOM)
143 components, 32 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LD1117S25 | V-REG_SOT223 | IC201 |
| 2 | LD1117S33 | V-REG_SOT223 | IC202, IC203 |
| 1 | LD1117S12 | V-REG_SOT223 | IC204 |
| 1 | AD9866 | AD9866 | IC401 |
| 1 | FPGA | CYCLONE10LP | U1 |
| 1 | TCXO | TCXO | X400 |
| 2 | SMA | CON-COAX_BU-SMA-H | X401, X402 |
| 1 | DNI | PINHEAD_2X10 | CN301 |
| 1 | PINHEAD_PINHD-2X20 | PINHEAD_2X20_BSILK | CN302 |
| 2 | 50Mhz | MURATA-FILTER_NFM21C | F401, F402 |
| 4 | DNI | m3 | MH1, MH2, MH3, MH4 |
| 1 | 1:1 | TR1-1 | T401 |
| 1 | 8:1 | TR1-1 | T402 |
| 1 | TVS | SOD323 | D401 |
| 14 | FB | VU2UPX_0603_HandSolder | FB201, FB202, FB203, FB204, FB205, FB206, FB207, FB208 +6 |
| 2 | 330nH | VU2UPX_0805__HandSolder | L401, L402 |
| 52 | 100nF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C201, C202, C203, C210, C211, C212, C216, C219 +44 |
| 8 | 1nF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C204, C205, C206, C217, C417, C418, C419, C420 |
| 11 | 10nF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C207, C208, C209, C218, C241, C242, C243, C421 +3 |
| 4 | 100uF | C_1210_3225Metric_Pad1.33x2.70mm_HandSolder | C213, C214, C215, C220 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 11 | 10uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C221, C222, C223, C232, C238, C244, C247, C433 +3 |
| 1 | 100pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C403 |
| 2 | DNI | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C404, C407 |
| 1 | 180pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C405 |
| 1 | 10pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C406 |
| 1 | 10uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C408 |
| 1 | 8p2 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C413 |
| 4 | 1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C429, C430, C431, C432 |
| 1 | 120R | SMD-0805 | R201 |
| 2 | 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R301, R302 |
| 6 | DNI | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R303, R304, R305, R306, R307, R308 |
| 1 | 1K6 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R403 |
Radioberry design files
The KiCad project lives in the pa3gsb/Radioberry-2.x repository on GitHub; these links point at the commit this page was built from.
Radioberry: common questions
What microcontroller does the Radioberry use?
The Radioberry is built around the FPGA, from the FPGA family.
How big is the Radioberry PCB?
The Radioberry measures 65 × 56 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Radioberry?
143 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Radioberry design files?
From the pa3gsb/Radioberry-2.x repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Radioberry design in my own project?
The repository has no license, so all rights stay with pa3gsb. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Radioberry without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
