About the SVI-2017 PCB
SVI-2017 is an open source PCB design by patricklaf, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 40 components from 15 distinct parts.
Other key parts include the 74HCT02, 74HCT32, 74LS138, 74HCT174 and 28C256. By type, the board carries 12 resistors, 10 transformers, 7 ICs, 7 capacitors, 3 connectors and 1 switch.
It belongs with the robotics & motion and retro computing designs in this gallery.
From the project
Interface MSX pour RobotArm SVI 2000

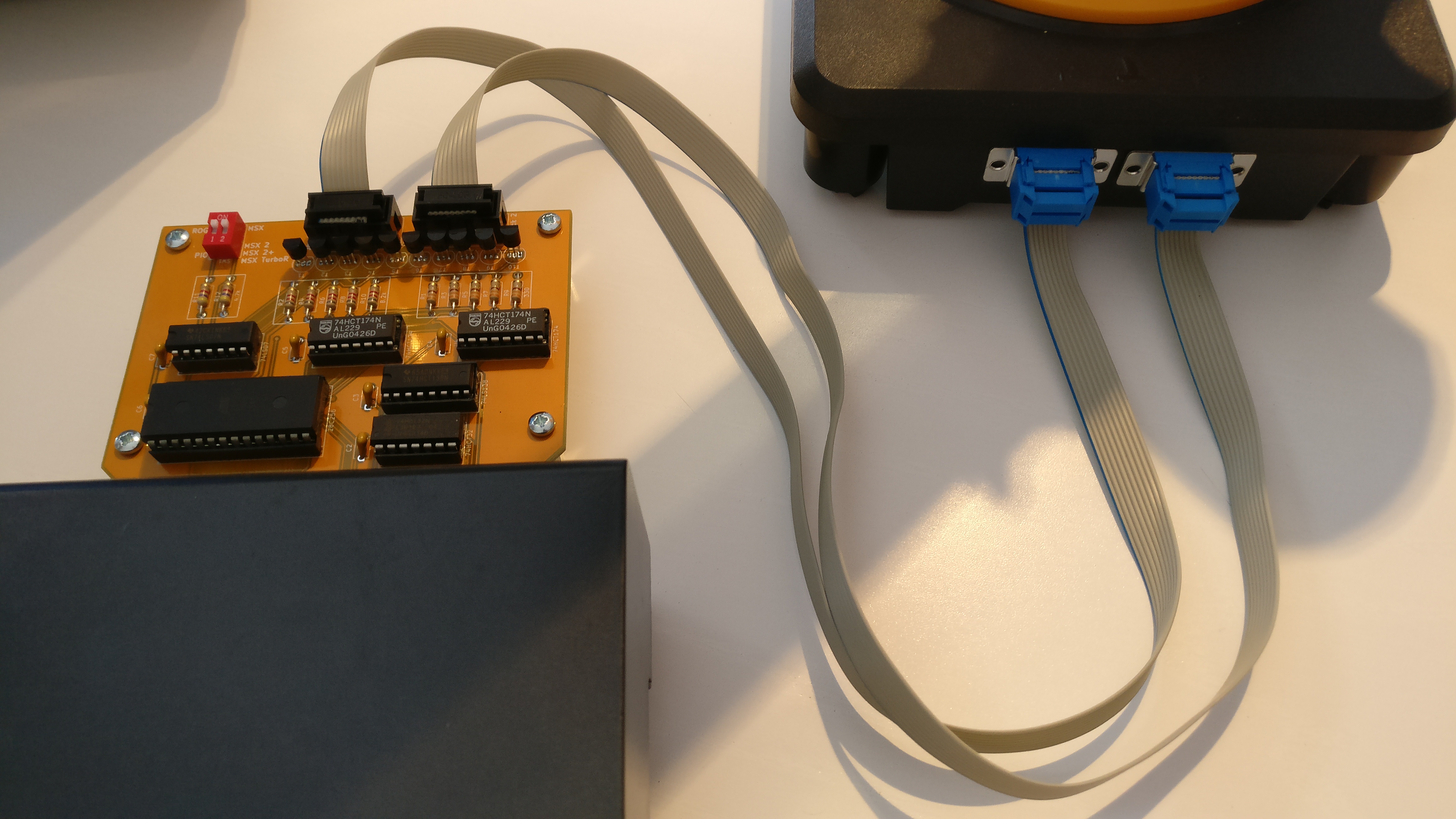

The SVI-2017 board is the recreation of the interface board for the RobotArm SVI 2000.
The functional board in version 1.1 is compatible with MSX computers.
The KiCad folder contains the project migrated to KiCad 8.0.4.
The original archive SVI-2017-201711091030.zip contains the Gerber files needed to produce the PCB. The build has been successfully tested by Seeedstudio.

Main components on the SVI-2017
SVI-2017 bill of materials (BOM)
40 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74HCT02 | DIP-14_W7.62mm_Socket | U1 |
| 1 | 74HCT32 | DIP-14_W7.62mm_Socket | U2 |
| 1 | 74LS138 | DIP-16_W7.62mm_Socket | U3 |
| 2 | 74HCT174 | DIP-16_W7.62mm_Socket | U4, U5 |
| 1 | 28C256 | DIP-28_W15.24mm_Socket | U6 |
| 1 | 74LS07 | DIP-14_W7.62mm_Socket | U7 |
| 1 | MSX_CARTRIDGE | MSX_CARTRIDGE | J1 |
| 1 | Joystick 1 | IDC-Header_2x05_Pitch2.54mm_Straight | J2 |
| 1 | Joystick 2 | IDC-Header_2x05_Pitch2.54mm_Straight | J3 |
| 1 | SW_DIP_x02 | SW_DIP_x2_W7.62mm_Slide | SW1 |
| 10 | S9014 | TO-92_Inline_Narrow_Oval | T1, T2, T3, T4, T5, T6, T7, T8 +2 |
| 7 | 0.1 µF | C_Disc_D5.1mm_W3.2mm_P5.00mm | C1, C2, C3, C4, C5, C6, C7 |
| 5 | 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R3, R5, R7, R9 |
| 5 | 8.2k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2, R4, R6, R8, R10 |
| 2 | 4.7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R11, R12 |
SVI-2017 design files
The KiCad project lives in the patricklaf/SVI-2017 repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCad/SVI-2017.kicad_pcb
- SchematicKiCad/SVI-2017.kicad_sch
SVI-2017: common questions
How big is the SVI-2017 PCB?
The SVI-2017 measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SVI-2017?
40 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the SVI-2017 design files?
From the patricklaf/SVI-2017 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the SVI-2017 design in my own project?
The repository has no license, so all rights stay with patricklaf. Use it as a reference, and ask the author before reusing the design.
