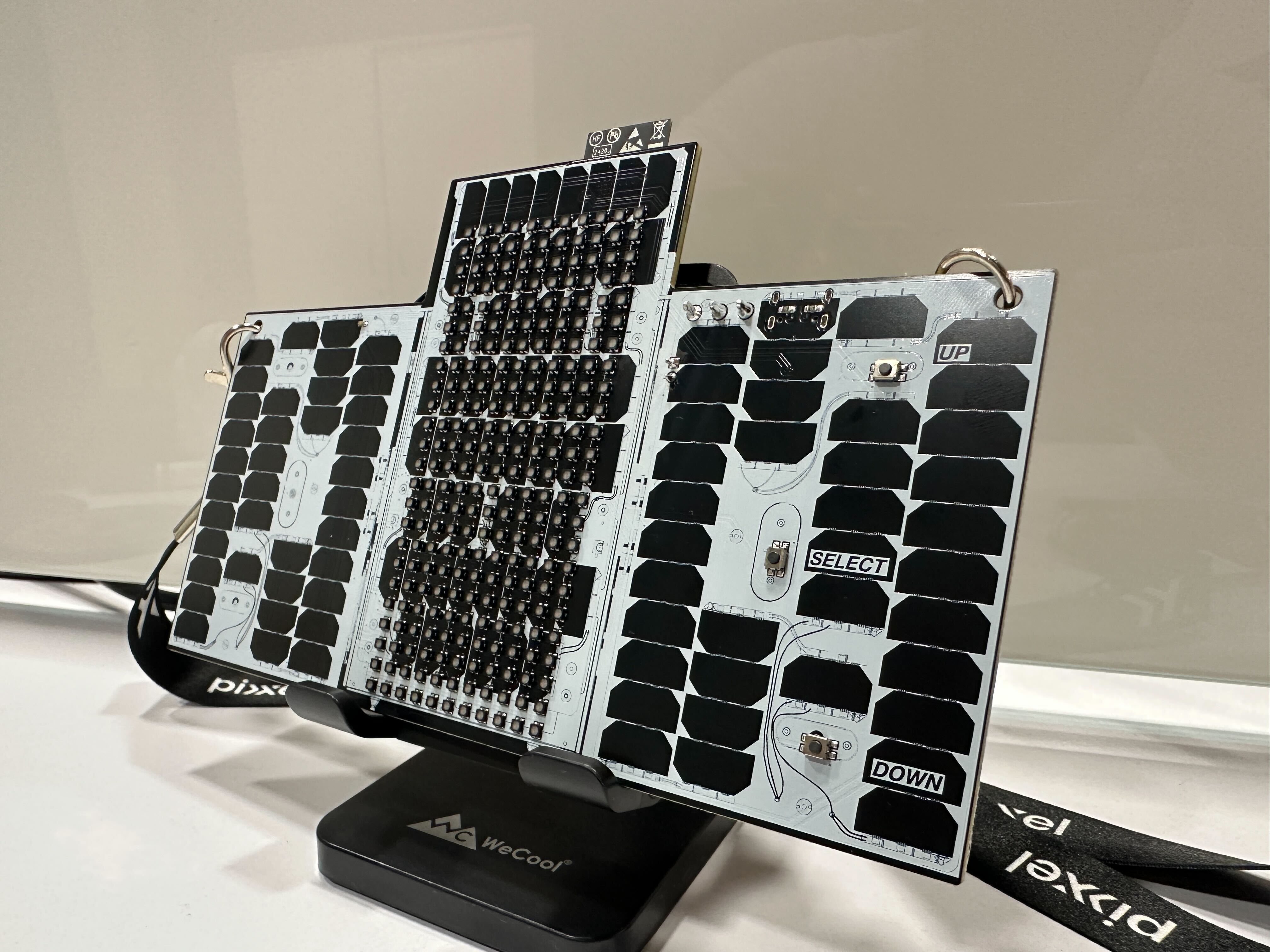

Launch-Party-Badge-Software
About the Launch-Party-Badge-Software PCB
Launch-Party-Badge-Software is an open source ESP32 PCB design by poorawsanhsirk, published on GitHub. It is a 4-layer board measuring 178 × 110 mm, with 404 components from 33 distinct parts.
Its main chip is the ESP32-C3-WROOM-02-N4, from the ESP32 family. Other key parts include the ICM-20602, AMS1117-ADJ, USBLC6-2SC6 and PLP5860RKPR. By type, the board carries 266 diodes, 88 resistors, 32 capacitors, 9 ICs, 5 switches and 2 connectors.
It belongs with the wearables, iot & wireless and displays & leds designs in this gallery.
From the project
Information regarding Firefly Badge
We highly recommend tinkering around with this badge later. It is basically an ESP32-C3 Devkit with an LED Matrix after you leave the party. Feel free to reach out if you need any help getting started. Looking forward to what people end up building with this. Psst...Psst, you can build a Firefly Themed Table Clock as a starter project.
1. Install Arduino IDE on your local machine - 2. Clone this repository on your local machine - If you have Git installed, you can just used git clone - If you dont have Git install, consider installing Git, it will change your life. - If you are still…
Main components on the Launch-Party-Badge-Software
Launch-Party-Badge-Software bill of materials (BOM)
404 components, 33 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-C3-WROOM-02-N4 ESP32-C3-WROOM-02 Espressif Systems | ESP32-C3-WROOM-02 | U1 |
| 1 | ICM-20602 TDK InvenSense | LGA-16_3x3mm_P0.5mm_LayoutBorder3x5y | U2 |
| 2 | AMS1117-ADJ AMS1117 UMW(Youtai Semiconductor Co., Ltd.) | SOT-223-3_TabPin2 | U3, U5 |
| 1 | USBLC6-2SC6 STMicroelectronics | SOT-23-6 | U4 |
| 4 | PLP5860RKPR | QFN40P500X500X100-41N-D | U6, U7, U8, U9 |
| 1 | BM03B-SRSS-TB JST | BM03BSRSSTB | J1 |
| 1 | KH-TYPE-C-16P USB_C_Receptacle_USB2.0_16P Shenzhen Kinghelm Elec | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J2 |
| 1 | Battery | PinHeader_1x02_P2.54mm_Vertical | BT1 |
| 1 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Bridged2Bar_RoundedPad1.0x1.5mm | JP1 |
| 4 | TSA008A18726A07 SW_Push BZCN | Button-TSA008A187 | SW1, SW2, SW3, SW4 |
| 1 | SS-12D10L5 XKB Connectivity | SS12D10L5 | SW5 |
| 1 | MBR1045CS YFW | TO-252-3_TabPin2 | D1 |
| 1 | BZT52C10S High Diode | D_SOD-323_HandSoldering | D2 |
| 264 | NH-B2020RGBA-HF LED_RBAG Foshan NationStar Optoelectronics | NHB2020RGBAHF | D3, D4, D5, D6, D7, D8, D9, D10 +256 |
| 6 | 1UF_16V_0603 10uF_16V_0805 | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C11, C12, C14, C15, C16 |
| 1 | 0.1UF_16V_0603 1uF_16V_0603 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2 |
| 6 | 1UF_16V_0603 1uF_16V_0603 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C3, C18, C20, C22, C24, C26 |
| 5 | 10UF_16V_0805 1uF_16V_0603 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4, C6, C7, C8, C9 |
| 1 | 10UF_16V_0805 1nF_16V_0603 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C5 |
| 1 | 10UF_16V_0805 10uF_16V_0805 | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C10 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1NF_16V_0603 10uF_16V_0805 | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C13 |
| 3 | 1NF_16V_0603 1uF_16V_0603 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C17, C21, C25 |
| 2 | 1UF_16V_0603 1nF_16V_0603 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C19, C23 |
| 2 | 1nF_16V_0603 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C27, C31 |
| 4 | 1uF_16V_0603 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C28, C29, C30, C32 |
| 7 | 5.1K_0.1W_0603 5.1k_0.1W_0603 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2, R3, R4, R5, R6, R9 |
| 2 | 7.5K_0.1W_0603 5.1k_0.1W_0603 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R7, R11 |
| 1 | 5.1K_0.1W_0603 3.3k_0.1W_0603 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R8 |
| 1 | 1K_0.1W_0603 5.1k_0.1W_0603 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R10 |
| 3 | 100R_0.1W_0603 3.3k_0.1W_0603 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R12, R13, R15 |
| 2 | 100R_0.1W_0603 5.1k_0.1W_0603 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R14, R16 |
| 67 | 100R_0.1W_0603 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R17, R18, R19, R20, R21, R22, R23, R24 +59 |
| 5 | 100R_0.1W_0603 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R84, R85, R86, R87, R88 |
Launch-Party-Badge-Software design files
The KiCad project lives in the poorawsanhsirk/Launch-Party-Badge-Software repository on GitHub; these links point at the commit this page was built from.
Launch-Party-Badge-Software: common questions
What microcontroller does the Launch-Party-Badge-Software use?
The Launch-Party-Badge-Software is built around the ESP32-C3-WROOM-02-N4, from the ESP32 family.
How big is the Launch-Party-Badge-Software PCB?
The Launch-Party-Badge-Software measures 178 × 110 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the Launch-Party-Badge-Software?
404 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Launch-Party-Badge-Software design files?
From the poorawsanhsirk/Launch-Party-Badge-Software repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Launch-Party-Badge-Software design in my own project?
The repository has no license, so all rights stay with poorawsanhsirk. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Launch-Party-Badge-Software without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
