BB-AVRISP

qboards·kicad-boards·bb-avrisp/bb-avrisp.kicad_pcb

BB-AVRISP PCB layout, top view — open source board by qboards

About the BB-AVRISP PCB

BB-AVRISP is an open source PCB design by qboards, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 27.2 × 21.9 mm, with 8 components from 3 distinct parts.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

All development boards made in Kicad

Breakout for 10 and 6 pin AVR ISP (In-system Programming) connectors

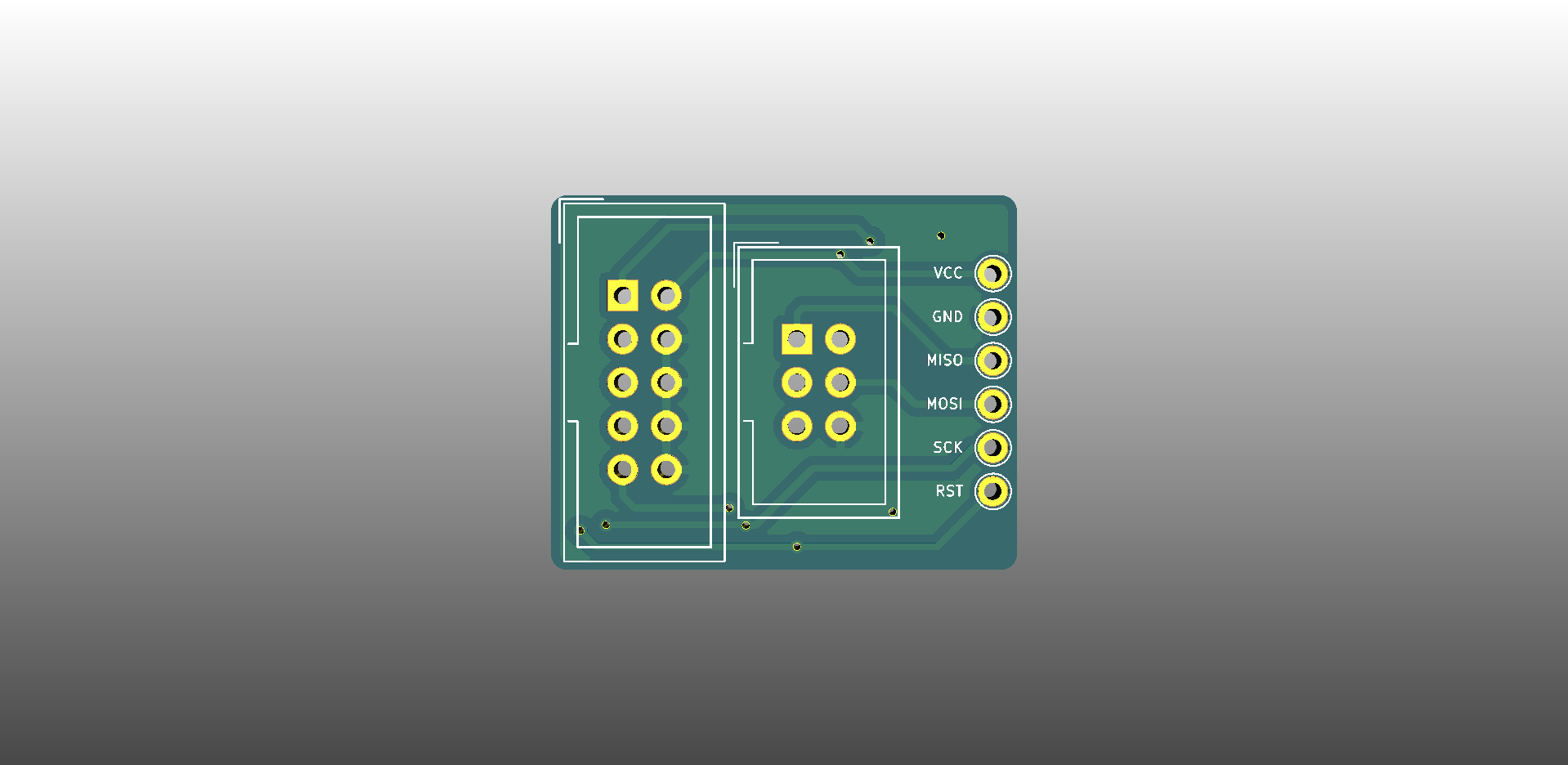

BB-AVRISP, from the project README
From the project README

BB-AVRISP bill of materials (BOM)

8 components, 3 distinct parts.

QtyPartRefs
6
Conn_01x01_Male
J1, J2, J3, J4, J5, J8
1
Conn_02x03_Odd_Even
J6
1
Conn_02x05_Odd_Even
J7

BB-AVRISP design files

The KiCad project lives in the qboards/kicad-boards repository on GitHub; these links point at the commit this page was built from.

BB-AVRISP: common questions

How big is the BB-AVRISP PCB?

The BB-AVRISP measures 27.2 × 21.9 mm, has 2 copper layers and is 1.2 mm thick.

How many components are on the BB-AVRISP?

8 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the BB-AVRISP design files?

From the qboards/kicad-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the BB-AVRISP design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which qboards chose for the repository.
