DEV-UUSB-PSU

qboards·kicad-boards·dev-uusb-psu/dev-uusb-psu.kicad_pcb

DEV-UUSB-PSU PCB layout, top view — open source board by qboards

About the DEV-UUSB-PSU PCB

DEV-UUSB-PSU is an open source PCB design by qboards, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 21.2 × 18.9 mm, with 8 components from 6 distinct parts.

By type, the board carries 2 connectors, 2 capacitors, 1 diode and 1 resistor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

All development boards made in Kicad

Small 3.3V/5V breadboard power supply with microUSB connector

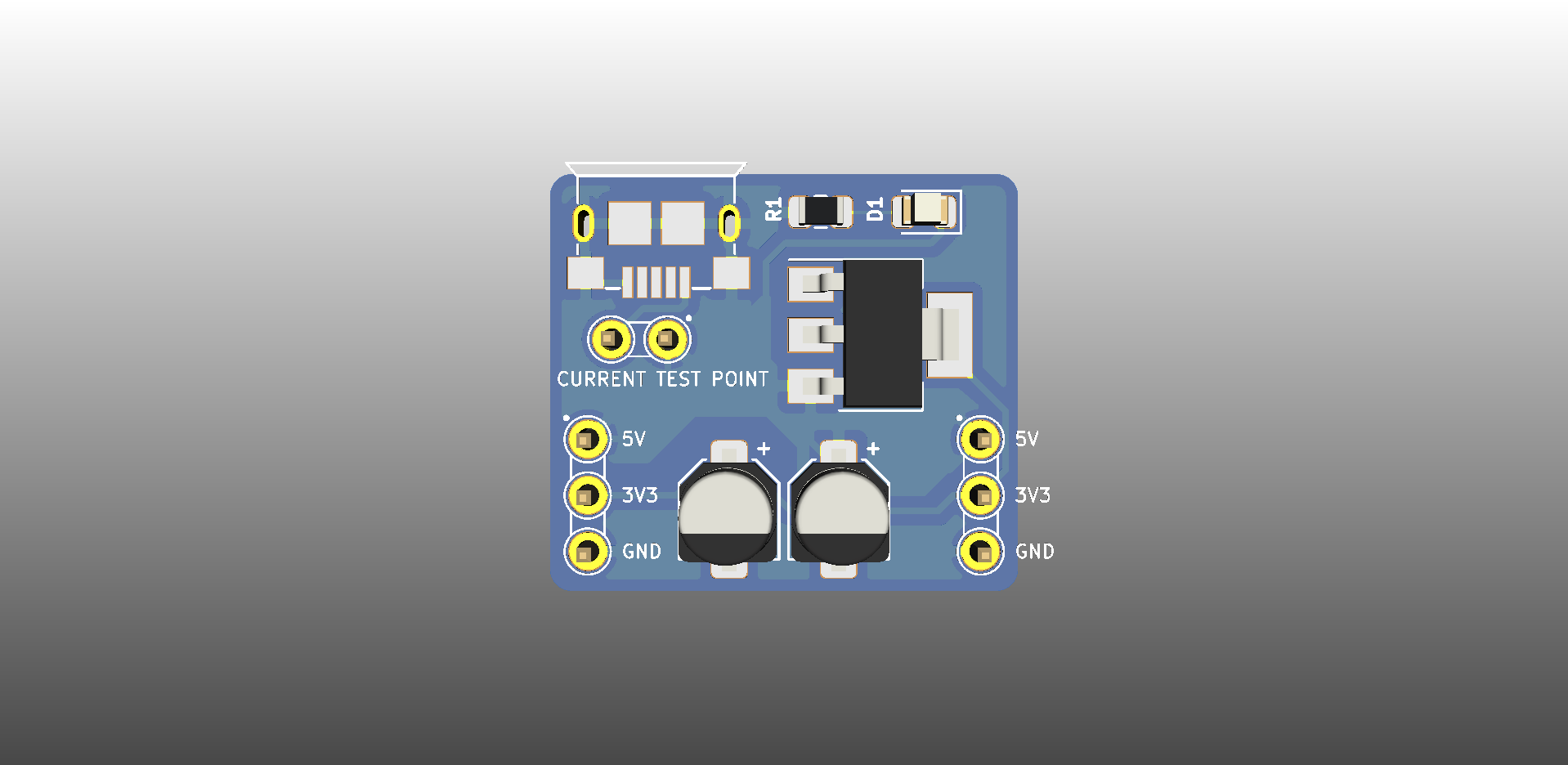

DEV-UUSB-PSU, from the project README
From the project README

DEV-UUSB-PSU bill of materials (BOM)

8 components, 6 distinct parts.

QtyPartRefs
2
Conn_01x03_Male
J1, J2
1
MICRO-USB-SMD-B-_10118193-0001LF_
USB1
1
LM1117-3.3
VREG1
1
SMD-LED-CLEAR-GREEN_0805_
D1
2
10uF
C1, C2
1
150
R1

DEV-UUSB-PSU design files

The KiCad project lives in the qboards/kicad-boards repository on GitHub; these links point at the commit this page was built from.

DEV-UUSB-PSU: common questions

How big is the DEV-UUSB-PSU PCB?

The DEV-UUSB-PSU measures 21.2 × 18.9 mm, has 2 copper layers and is 1.2 mm thick.

How many components are on the DEV-UUSB-PSU?

8 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the DEV-UUSB-PSU design files?

From the qboards/kicad-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the DEV-UUSB-PSU design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which qboards chose for the repository.
