BB-XTAL PCB layout, top view — open source board by qboards

About the BB-XTAL PCB

BB-XTAL is an open source PCB design by qboards, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 14.3 × 21.5 mm, with 7 components from 4 distinct parts.

By type, the board carries 3 connectors, 2 crystals and 2 capacitors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

All development boards made in Kicad

Breakout board for crystals and their accompanying capacitors. Both HC-49 through-hole and HC-49 SMT (Gullwing) are supported.

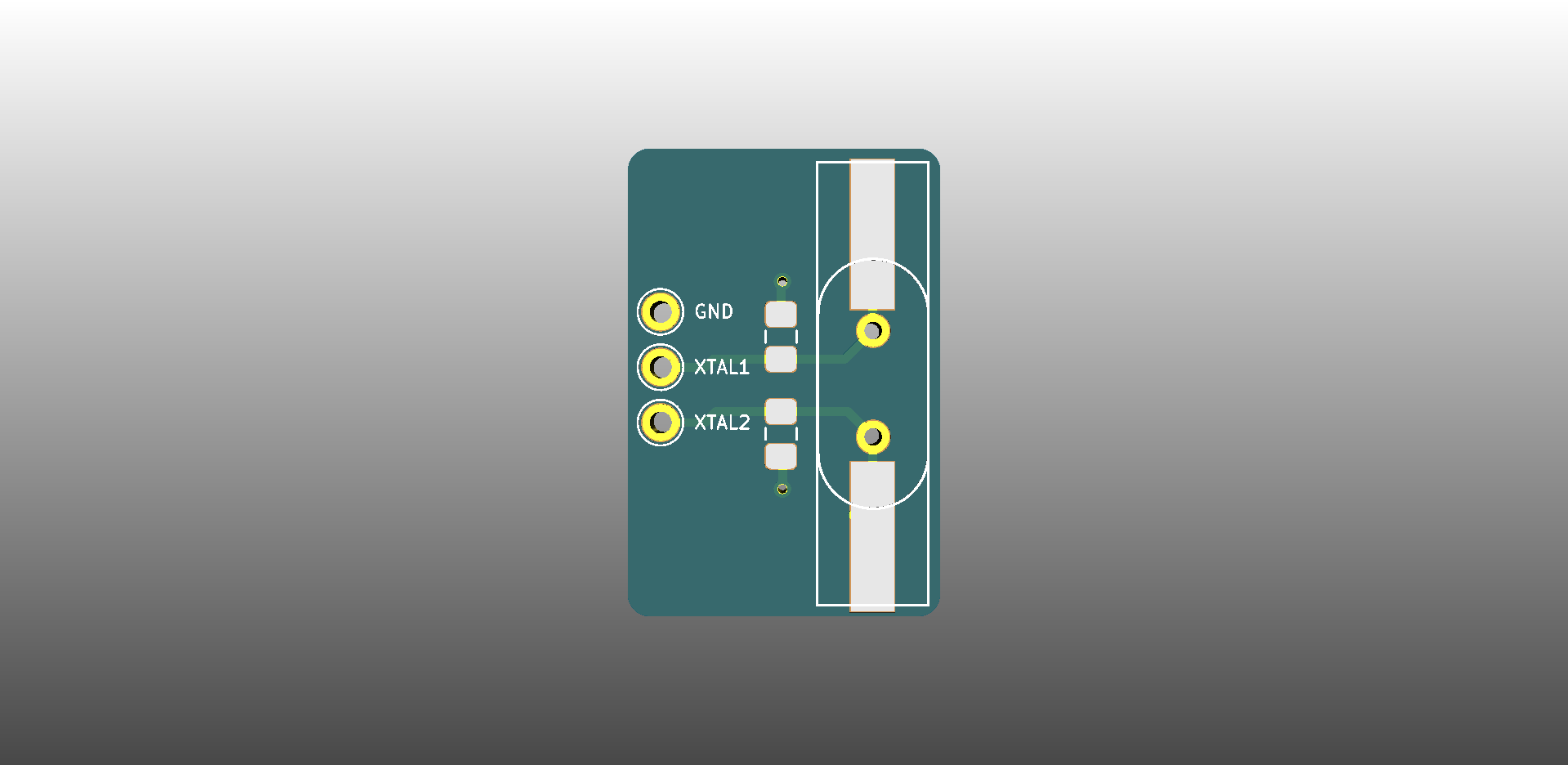

BB-XTAL, from the project README
From the project README

BB-XTAL bill of materials (BOM)

7 components, 4 distinct parts.

QtyPartRefs
1
Crystal
Y1
1
Crystal
Y2
3
Conn_01x01_Male
J1, J2, J3
2
C
C1, C2

BB-XTAL design files

The KiCad project lives in the qboards/kicad-boards repository on GitHub; these links point at the commit this page was built from.

BB-XTAL: common questions

How big is the BB-XTAL PCB?

The BB-XTAL measures 14.3 × 21.5 mm, has 2 copper layers and is 1.2 mm thick.

How many components are on the BB-XTAL?

7 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the BB-XTAL design files?

From the qboards/kicad-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the BB-XTAL design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which qboards chose for the repository.
