Bb ledbar

qboards·kicad-boards·bb-ledbar/bb-ledbar.kicad_pcb

Bb ledbar PCB layout, top view — open source board by qboards

About the Bb ledbar PCB

Bb ledbar is an open source PCB design by qboards, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 15.8 × 21 mm, with 34 components from 4 distinct parts.

By type, the board carries 16 LEDs and 2 connectors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

All development boards made in Kicad

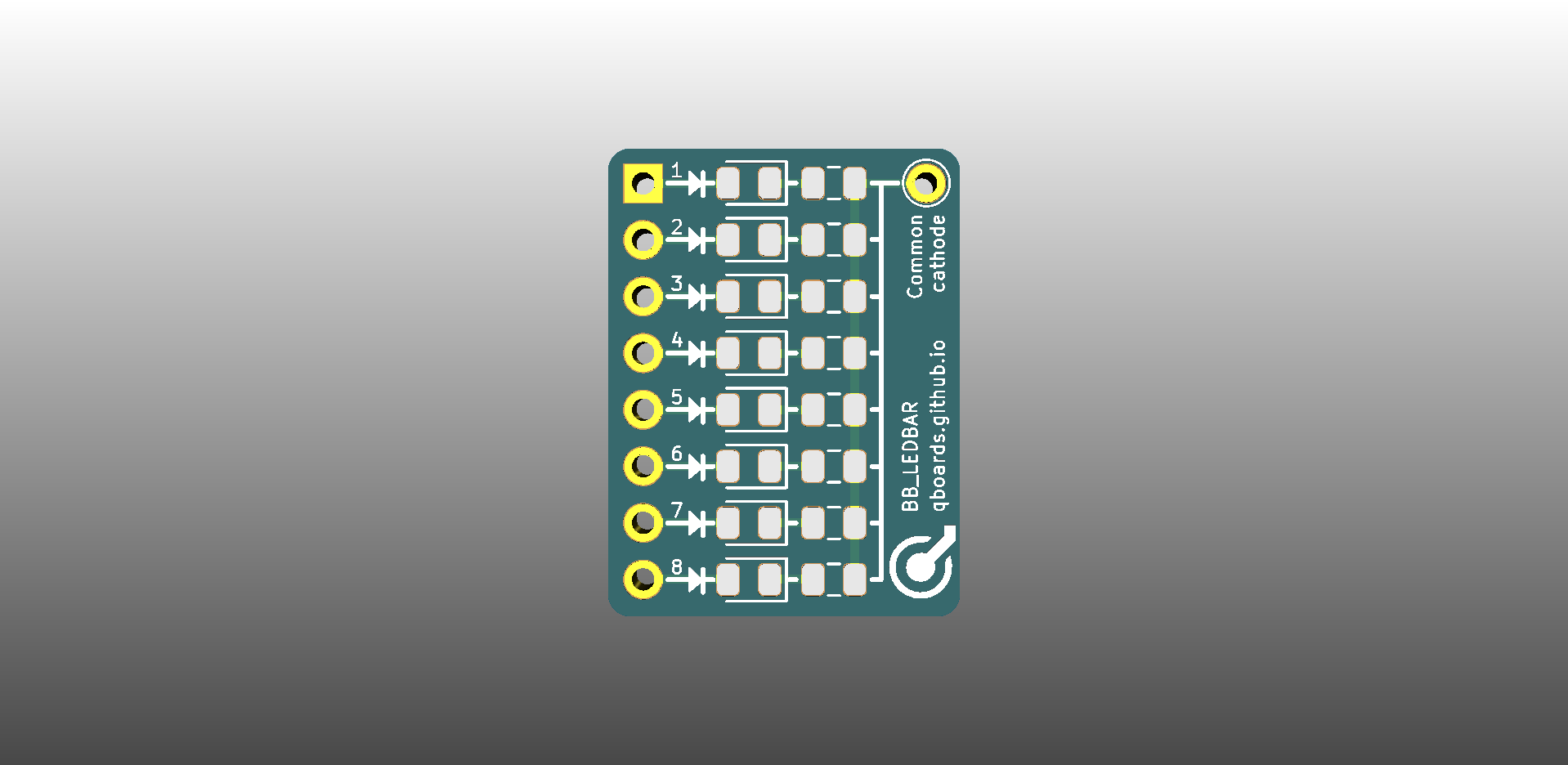

Array of eight SMD leds (0805) on a breakout board that fits between the bus and the main grid of a breadboard. One side is common cathode, other side common anode.

Bb ledbar, from the project README
From the project README

Bb ledbar bill of materials (BOM)

34 components, 4 distinct parts.

QtyPartRefs
1
Conn_01x08_Male
J1
1
Conn_01x01_Male
J2
16
R
RA_1, RA_2, RA_3, RA_4, RA_5, RA_6, RA_7, RA_8 +8
16
LED
DA_1, DA_2, DA_3, DA_4, DA_5, DA_6, DA_7, DA_8 +8

Bb ledbar design files

The KiCad project lives in the qboards/kicad-boards repository on GitHub; these links point at the commit this page was built from.

Bb ledbar: common questions

How big is the Bb ledbar PCB?

The Bb ledbar measures 15.8 × 21 mm, has 2 copper layers and is 1.2 mm thick.

How many components are on the Bb ledbar?

34 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bb ledbar design files?

From the qboards/kicad-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Bb ledbar design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which qboards chose for the repository.
