Bb led PCB layout, top view — open source board by qboards

About the Bb led PCB

Bb led is an open source PCB design by qboards, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 11 × 5 mm, with 4 components from 3 distinct parts.

By type, the board carries 2 connectors, 1 diode and 1 resistor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

All development boards made in Kicad

Single SMD (0805) breakout board that fits between the bus and the main grid of a breadboard

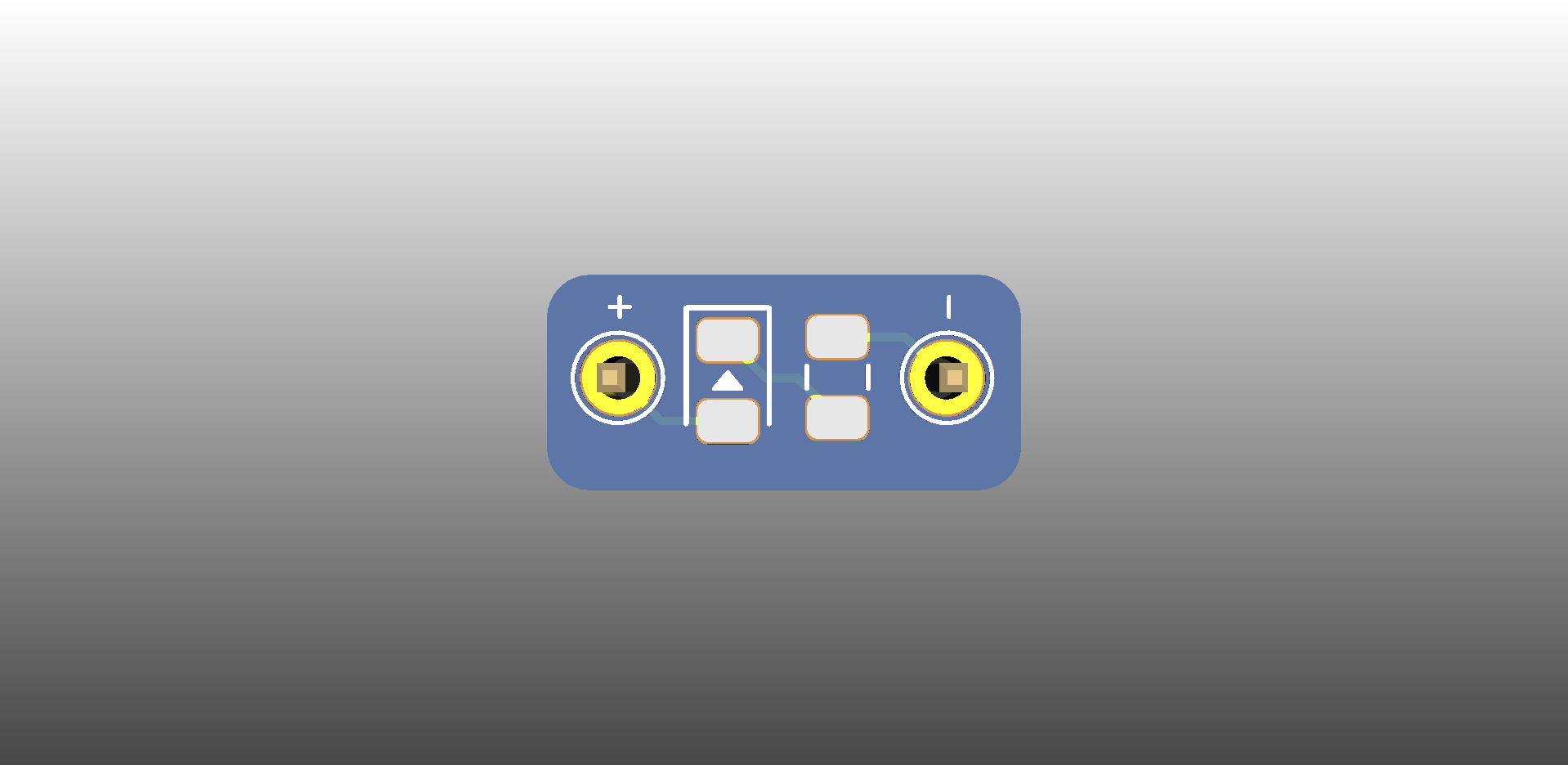

Bb led, from the project README
From the project README

Bb led bill of materials (BOM)

4 components, 3 distinct parts.

QtyPartRefs
2
Conn_01x01_Male
J1, J2
1
LED
D1
1
R
R1

Bb led design files

The KiCad project lives in the qboards/kicad-boards repository on GitHub; these links point at the commit this page was built from.

Bb led: common questions

How big is the Bb led PCB?

The Bb led measures 11 × 5 mm, has 2 copper layers and is 1.2 mm thick.

How many components are on the Bb led?

4 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bb led design files?

From the qboards/kicad-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Bb led design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which qboards chose for the repository.
