Bb soic ssop-24

qboards·kicad-boards·bb-soic-ssop-24/bb-soic-ssop-24.kicad_pcb

Bb soic ssop-24 PCB layout, top view — open source board by qboards

About the Bb soic ssop-24 PCB

Bb soic ssop-24 is an open source PCB design by qboards, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 17.8 × 30.5 mm, with 4 components from 3 distinct parts.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

All development boards made in Kicad

Breakout board for SOIC/SSOP IC packages up to 24 pins. Uses extra long and wide pads so a lot of different packages should fit. To use, just solder your IC on the SOIC or the SSOP side (only ever use one IC, as the header pins are shared) and you can breadboard your IC.

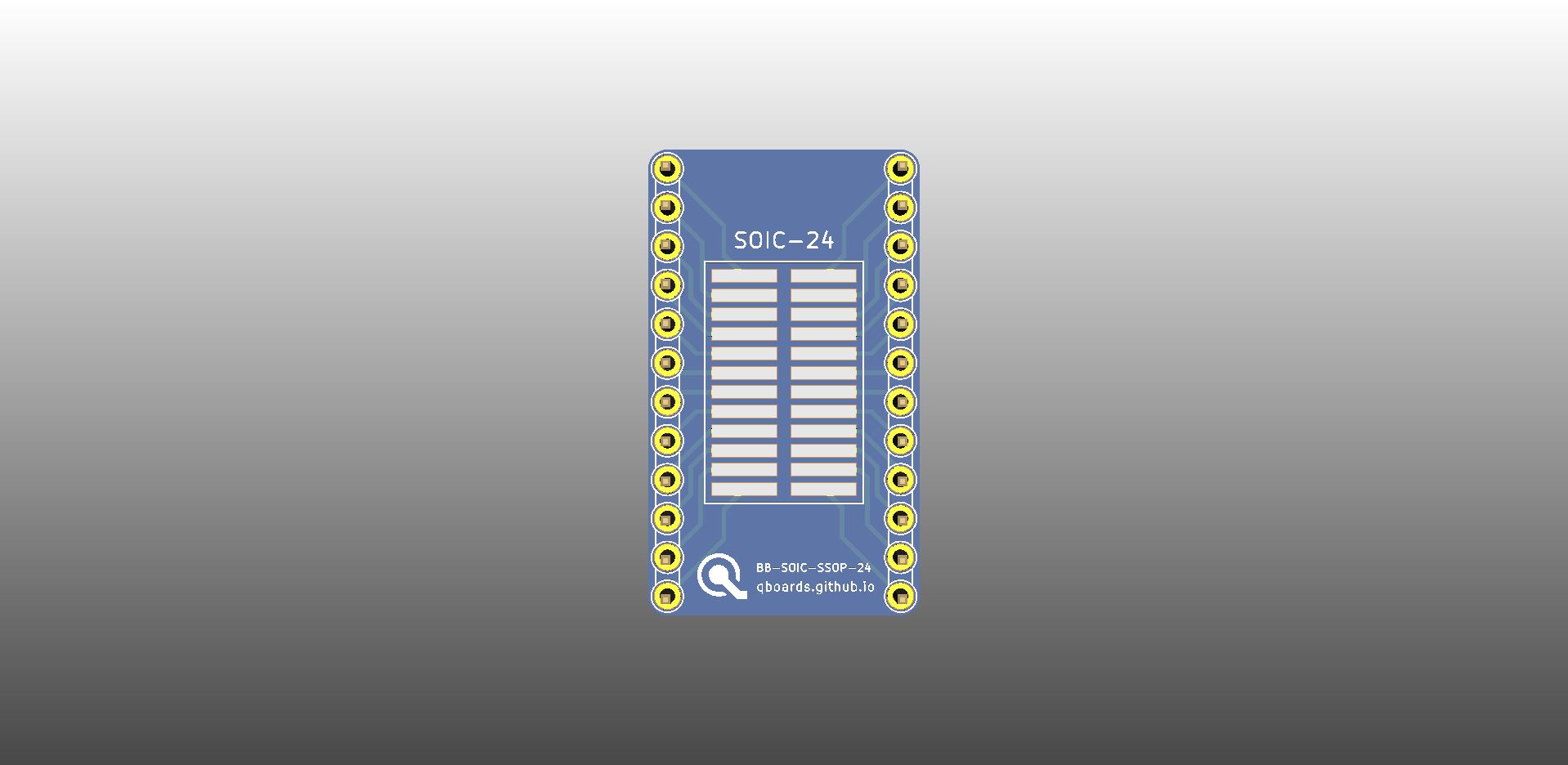

Bb soic ssop-24, from the project README
From the project README

Bb soic ssop-24 bill of materials (BOM)

4 components, 3 distinct parts.

QtyPartRefs
2
Conn_01x12_Male
J1, J2
1
IC-24
SOIC-24
1
IC-24
SSOP-24

Bb soic ssop-24 design files

The KiCad project lives in the qboards/kicad-boards repository on GitHub; these links point at the commit this page was built from.

Bb soic ssop-24: common questions

How big is the Bb soic ssop-24 PCB?

The Bb soic ssop-24 measures 17.8 × 30.5 mm, has 2 copper layers and is 1.2 mm thick.

How many components are on the Bb soic ssop-24?

4 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bb soic ssop-24 design files?

From the qboards/kicad-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Bb soic ssop-24 design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which qboards chose for the repository.
