Project athena PCB layout, top view — open source RP2040/RP2350 board by reading-hackspace

About the Project athena PCB

Project athena is an open source RP2040/RP2350 PCB design by reading-hackspace, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 77 components from 33 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the LP5907MFX-3.3, MPR121QR2, 74LVC1G17, PCM5102 and LM386. By type, the board carries 27 capacitors, 17 connectors, 15 resistors, 6 switches, 5 ICs and 3 diodes.

It belongs with the keyboards, audio and iot & wireless designs in this gallery.

From the project

A simple project to build and learn electronics and embedded design

A simple project to build and learn electronics and embedded design at rLab

The Raspberry Pi Pico module is based on the RP2040 microprocessor. The module includes flash memory, power supply, crystal clock and a USB interface. It is an easy way to to integrate this processor without detail PCB layout and at attractive cost. The Pi Pico Module have different variants which are pin compatible. They offer different USB Connectors(Micro-B, USB-C), Wireless and bluetooth integrated, and a higher performance version in the RP2350. Pi Pico Data sheet

Project athena, from the project README

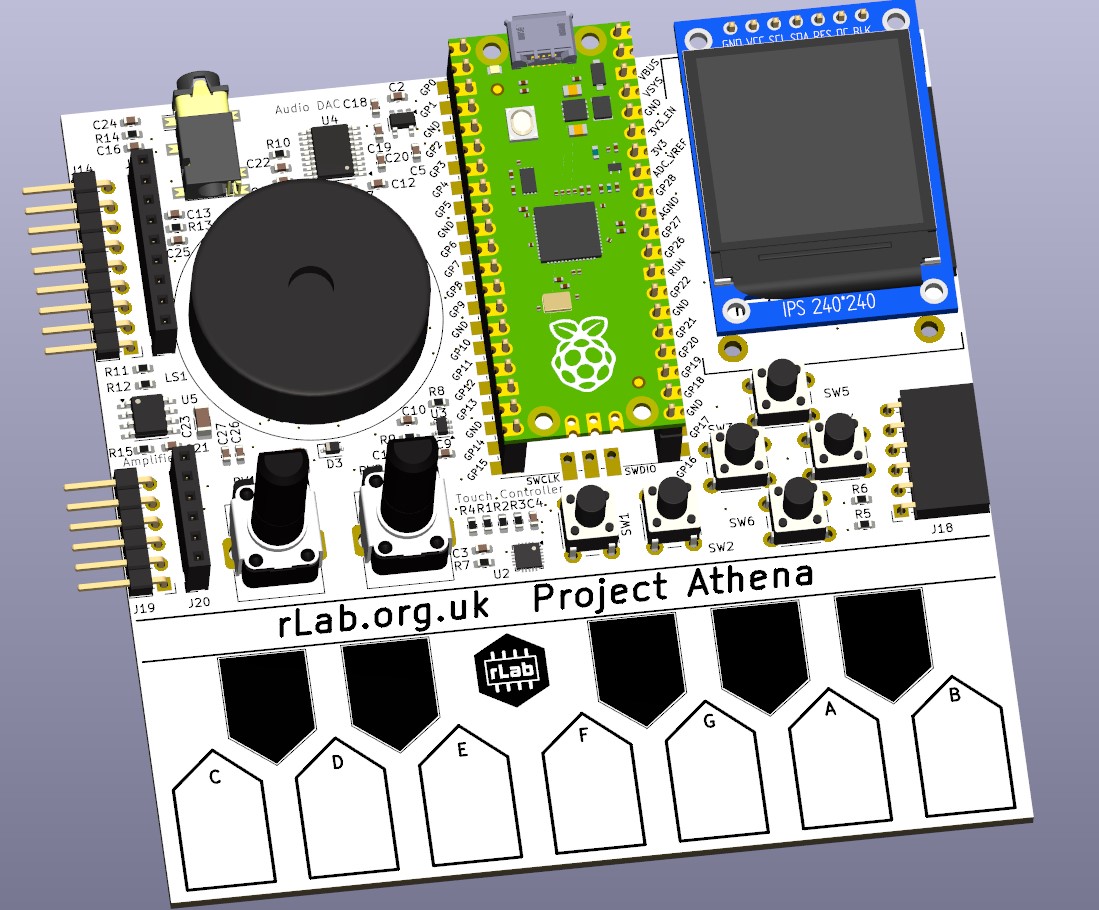

From the project README

Main components on the Project athena

LP5907MFX-3.3MPR121QR274LVC1G17PCM5102LM386RaspberryPi_Pico

Project athena bill of materials (BOM)

77 components, 33 distinct parts.

QtyPartRefs
1
LP5907MFX-3.3
U1
1
MPR121QR2
U2
1
74LVC1G17
U3
1
PCM5102
U4
1
LM386
U5
1
RaspberryPi_Pico
A1
7
Conn_01x01_Pin
J1, J2, J3, J4, J5, J6, J7
5
Conn_01x01_Pin
J8, J9, J10, J11, J12
1
Conn_01x07
J13
1
Conn_01x09
J15
1
Conn_01x09
J16
1
Conn_01x06
J18
1
Conn_01x06
J20
1
Speaker
LS1
2
10k
RV1, RV2
6
SW_MEC_5G
SW1, SW2, SW3, SW4, SW5, SW6
3
1N5819WS
D1, D2, D3
3
1u
C1, C2, C5
12
100n
C3, C4, C6, C9, C10, C12, C13, C14 +4
7
2u2
C7, C8, C15, C17, C19, C20, C27
Show 13 more
QtyPartRefs
1
47u
C11
1
47n
C21
1
220u
C23
2
2n2
C24, C25
3
NF
R1, R2, R3
1
0R
R4
2
4k7
R5, R6
1
75k
R7
1
220R
R8
2
100R
R9, R10
2
1k
R11, R12
2
470R
R13, R14
1
10R
R15

Project athena design files

The KiCad project lives in the reading-hackspace/project-athena repository on GitHub; these links point at the commit this page was built from.

Project athena: common questions

What microcontroller does the Project athena use?

The Project athena is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Project athena PCB?

The Project athena measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Project athena?

77 components, from 33 distinct parts. The full bill of materials is listed on this page.

Where can I download the Project athena design files?

From the reading-hackspace/project-athena repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Project athena design in my own project?

The repository has no license, so all rights stay with reading-hackspace. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Project athena without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
