HUB75E ICE40
About the HUB75E ICE40 PCB
HUB75E ICE40 is an open source FPGA PCB design by riktw, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 50 × 37.3 mm, with 51 components from 23 distinct parts.
Its main chip is the ICE40UP5K-SG48ITR, from the FPGA family. Other key parts include the 93LCxxB, 74HC245, FT232H, AT25SF081-SSHD-X and AZ1117-1.2. By type, the board carries 22 capacitors, 13 resistors, 8 ICs, 3 connectors, 3 diodes and 1 crystal.
From the project
SpinalHDL code to drive a 64*64 pixel HUB75E module with an ICE40

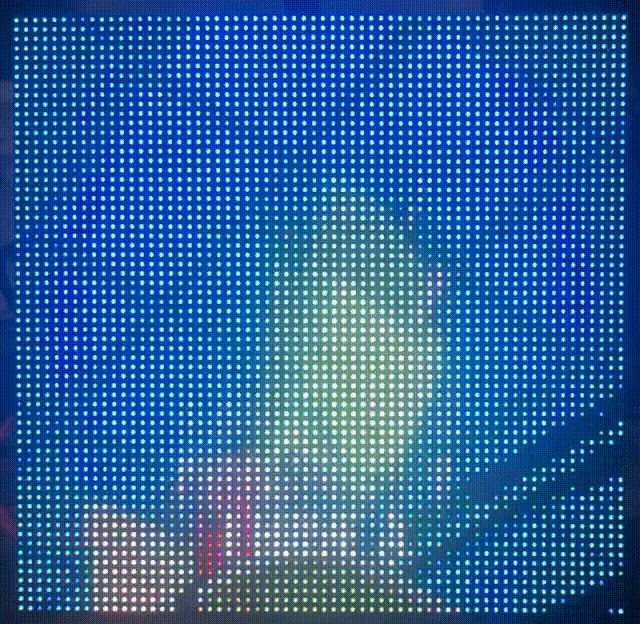

This code is used to drive a HUB75E dislay, fast enough to display animated gifs:
This project uses SpinalHDL, see installation notes here: https://spinalhdl.github.io/SpinalDoc-RTD/SpinalHDL/Getting%20Started/index.html
To build, yosys and nextpnr are used, see installation notes here: http://www.clifford.at/icestorm/
Main components on the HUB75E ICE40
HUB75E ICE40 bill of materials (BOM)
51 components, 23 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ICE40UP5K-SG48ITR | QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm | U1 |
| 1 | 93LCxxB | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 2 | 74HC245 | SSOP-20_5.3x7.2mm_P0.65mm | U3, U5 |
| 1 | FT232H | LQFP-48_7x7mm_P0.5mm | U4 |
| 1 | AT25SF081-SSHD-X | SOIC-8_3.9x4.9mm_P1.27mm | U6 |
| 1 | AZ1117-1.2 | SOT-223-3_TabPin2 | U7 |
| 1 | AP1117-33 | SOT-223-3_TabPin2 | U8 |
| 1 | 12Mhz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | USB_C_Recept_16Pin | USB_C_Recept_16Pin | J1 |
| 1 | Conn_02x08_Odd_Even | PinSocket_2x08_P2.54mm_Vertical | J2 |
| 1 | Conn_ARM_JTAG_SWD_10 | PinHeader_2x05_P1.27mm_Vertical_SMD | J3 |
| 1 | LED | LED_0603_1608Metric_Castellated | D1 |
| 1 | MBR0520 | D_SOD-123 | D2 |
| 1 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D3 |
| 1 | 22R | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L1 |
| 4 | 1u | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C1, C8, C10, C18 |
| 16 | 100n | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C2, C5, C6, C7, C9, C11, C12, C13 +8 |
| 2 | 18p | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C3, C4 |
| 3 | 5.1K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R1, R2, R5 |
| 2 | 2.2K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R3, R12 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 12K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R4 |
| 6 | 10K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R6, R7, R8, R10, R11, R13 |
| 1 | 680R | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R9 |
HUB75E ICE40 design files
The KiCad project lives in the riktw/HUB75E_ICE40 repository on GitHub; these links point at the commit this page was built from.
HUB75E ICE40: common questions
What microcontroller does the HUB75E ICE40 use?
The HUB75E ICE40 is built around the ICE40UP5K-SG48ITR, from the FPGA family.
How big is the HUB75E ICE40 PCB?
The HUB75E ICE40 measures 50 × 37.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the HUB75E ICE40?
51 components, from 23 distinct parts. The full bill of materials is listed on this page.
Where can I download the HUB75E ICE40 design files?
From the riktw/HUB75E_ICE40 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the HUB75E ICE40 design in my own project?
Yes, under the terms of its GPL-3.0 license, which riktw chose for the repository.
Can I test firmware for the HUB75E ICE40 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
