Desktop light

rmingon·desktop-light·hardware/desktop-light.kicad_pcb

Desktop light PCB layout, top view — open source ESP32 board by rmingon

About the Desktop light PCB

Desktop light is an open source ESP32 PCB design by rmingon, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 95 components from 16 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the AMS1117-3.3, CH340C and PCF8523T. By type, the board carries 62 diodes, 9 resistors, 6 capacitors, 5 connectors, 4 ICs and 2 transistors.

It belongs with the displays & leds designs in this gallery.

From the project

Desktop light ws2812b with warm setting and text writing

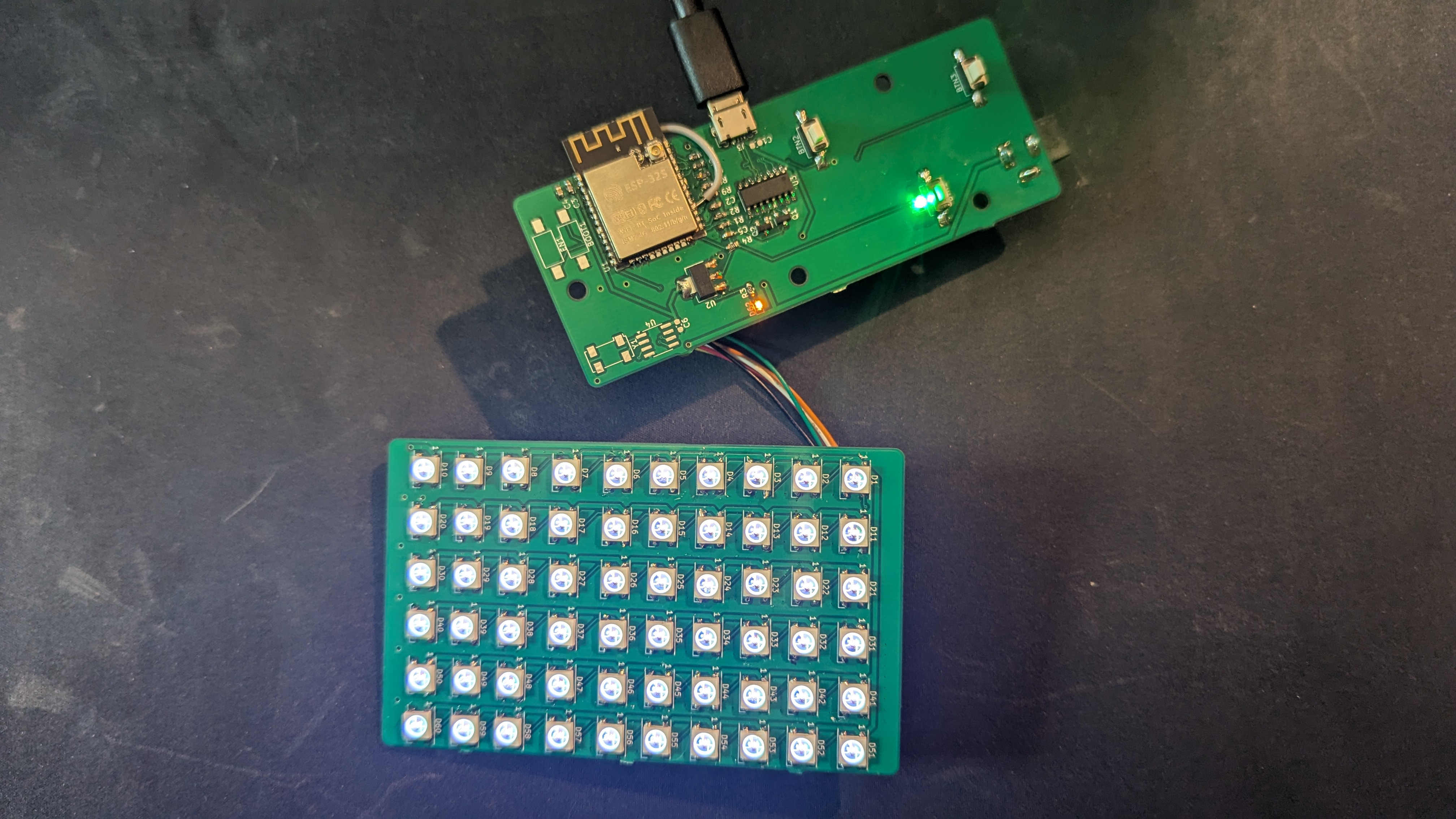

Desktop light, from the project README
From the project README

Main components on the Desktop light

ESP32-WROOM-32AMS1117-3.3CH340CPCF8523T

Desktop light bill of materials (BOM)

95 components, 16 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32
U1
1
AMS1117-3.3
U2
1
CH340C
U3
1
PCF8523T
U4
2
BSS138
Q1, Q2
1
ABS2532768KHZ6T
Y1
3
Conn_01x06
J1, J2, J5
1
USB_B_Micro
J3
1
Barrel_Jack
J4
5
SW_Push
BOOT1, BTN1, BTN2, BTN3, EN1
1
Battery_Cell
BT1
60
WS2812B
D1, D2, D3, D4, D5, D6, D7, D8 +52
2
LED
D61, D62
5
C
C1, C2, C3, C4, C5
1
C_Small
C6
9
R_Small
R1, R2, R3, R4, R5, R6, R7, R8 +1

Desktop light design files

The KiCad project lives in the rmingon/desktop-light repository on GitHub; these links point at the commit this page was built from.

Desktop light: common questions

What microcontroller does the Desktop light use?

The Desktop light is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the Desktop light PCB?

The Desktop light measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Desktop light?

95 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the Desktop light design files?

From the rmingon/desktop-light repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Desktop light design in my own project?

The repository has no license, so all rights stay with rmingon. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Desktop light without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
