ESP32S3PD15W PCB layout, top view — open source ESP32 board by robertxdx

About the ESP32S3PD15W PCB

ESP32S3PD15W is an open source ESP32 PCB design by robertxdx, published on GitHub. It is a 4-layer board measuring 60 × 50 mm, with 42 components from 20 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N4, from the ESP32 family. Other key parts include the USBLC6-2P6, AP63203WU-7 and SN74HC125PWR. By type, the board carries 14 capacitors, 8 resistors, 5 connectors, 5 switches, 5 diodes and 4 ICs.

It belongs with the dev boards & breakouts and power & battery designs in this gallery.

From the project

A 15 W USB-C powered ESP32-S3 LED-strip controller and development board.

A 15 W USB-C powered ESP32-S3 LED-strip controller and development board.

ESP32S3PD15W is a compact ESP32-S3-WROOM-1 board built to drive a 144-LED WS2812B strip while still behaving like a practical development platform. It prioritizes power delivery over the usual low-current dev-board formula: USB-C input, an efficient buck converter, level-shifted 5 V data outputs, and accessible GPIO for experiments.

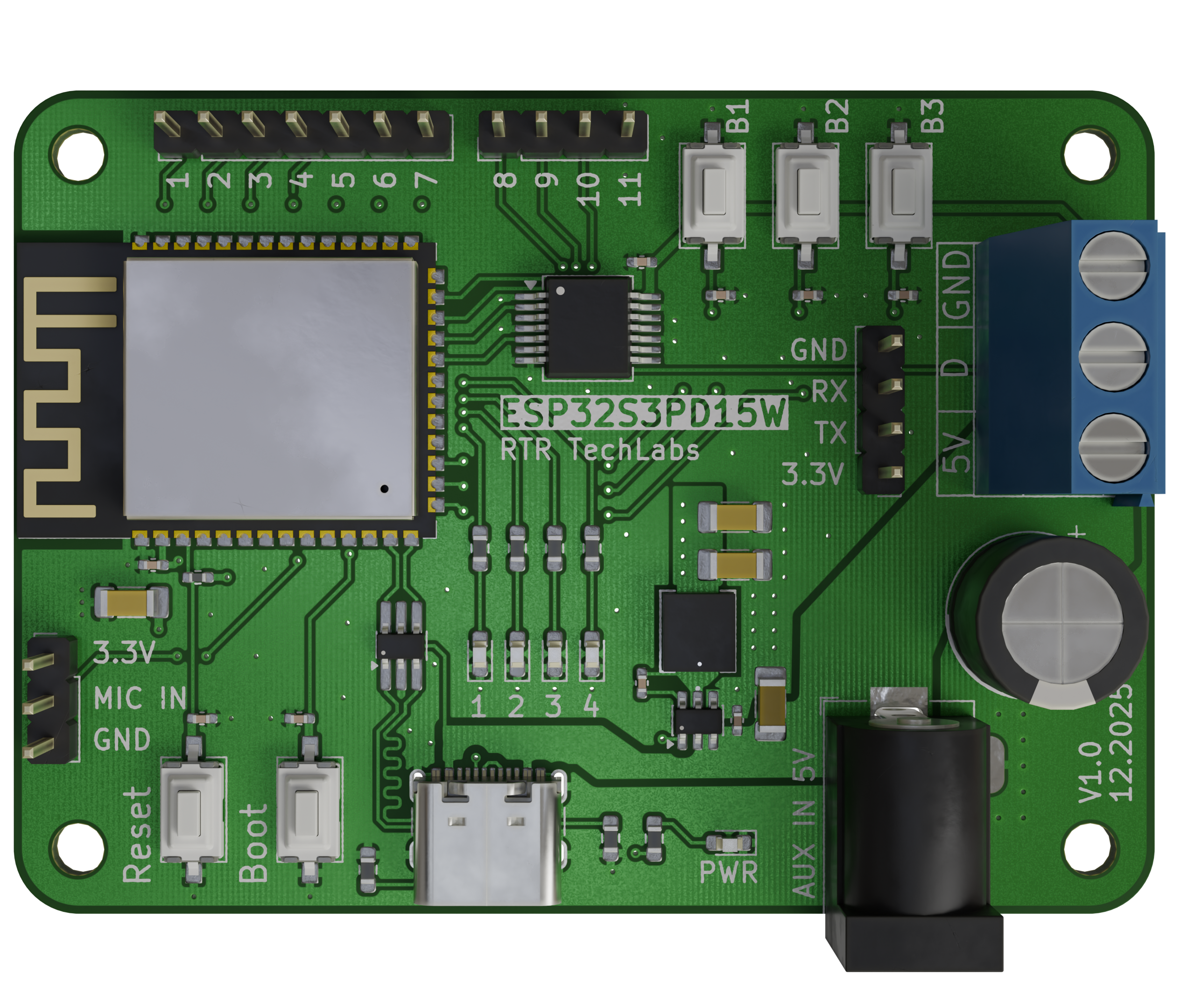

ESP32S3PD15W, from the project README
From the project README

Main components on the ESP32S3PD15W

ESP32-S3-WROOM-1-N4USBLC6-2P6AP63203WU-7SN74HC125PWR

ESP32S3PD15W bill of materials (BOM)

42 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1-N4
ESP32-S3-WROOM-1
U1
1
USBLC6-2P6
U2
1
AP63203WU-7
AP63203WU
U3
1
SN74HC125PWR
74AHCT125
U4
1
USB4105-GF-A
USB_C_Receptacle_USB2.0_16P
J1
2
CONN_01X04
Conn_01x04
J2, J6
1
CONN_01X07
Conn_01x07
J3
1
LED Strip
J5
5
PTS636SK25SMTRLFS
SW_Push
SW1, SW2, SW3, SW4, SW5
2
KT-0603G
GREEN
D1, D2
1
KT-0603Y
YEL
D3
1
KT-0603B
BLUE
D4
1
KT-0603R
RED
D5
1
SRP4020TA-4R7M
4.7uH
L1
4
CL31A226KAHNNNE
22u
C2, C5, C11, C12
9
0402F104M500NT
100n
C3, C6, C7, C8, C9, C10, C13, C14 +1
1
2200U
2200u
C4
1
0402WGJ0103TCE
10k
R1
2
RC0603JR-075K1L
5.1k
R2, R3
5
0603WAF5100T5E
510R
R4, R5, R6, R7, R8

ESP32S3PD15W design files

The KiCad project lives in the robertxdx/ESP32S3PD15W repository on GitHub; these links point at the commit this page was built from.

ESP32S3PD15W: common questions

What microcontroller does the ESP32S3PD15W use?

The ESP32S3PD15W is built around the ESP32-S3-WROOM-1-N4, from the ESP32 family.

How big is the ESP32S3PD15W PCB?

The ESP32S3PD15W measures 60 × 50 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the ESP32S3PD15W?

42 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32S3PD15W design files?

From the robertxdx/ESP32S3PD15W repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32S3PD15W design in my own project?

The repository has no license, so all rights stay with robertxdx. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESP32S3PD15W without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
