Main rounded PCB layout, top view — open source ESP32 board by rompasaurus
Simulate this board

About the Main rounded PCB

Main rounded is an open source ESP32 PCB design by rompasaurus, published on GitHub. It is a 2-layer board measuring 129.5 × 50.8 mm, with 31 components from 29 distinct parts.

Its main chip is the LTC3111EMSEPBF, from the ESP32 family. Other key parts include the CP2102N-A02-GQFN24 and ESP32-S3-WROOM-1. By type, the board carries 12 switches, 6 connectors, 4 resistors, 3 ICs, 3 capacitors and 1 transistor.

It belongs with the wearables designs in this gallery.

From the project

DIY-консоль, яку можна зібрати з дешевих готових модулів.

DIY-консоль, яку можна зібрати з дешевих готових модулів.

Всі посилання та інструкції доступні ось тут!

Повна документація проєкту буде доступна ось тут:

Приєднуйтесь до [нашого сервера в Discord][discord]!

Ми будемо тільки раді! Є декілька варіантів:

- Хочете написати гру, програму, документацію чи щось таке? Звісно! Документація є тут (C++) і тут (Lua). - Хочете допомогти з вдосконаленням коду? Виконайте команду make todo - вона відобразить всі TODO з коду, де потрібна допомога. - Хочете допомогти ідейно? Знайшли баг або маєте ідею щодо покращення архітектури? Створіть новий тікет або…

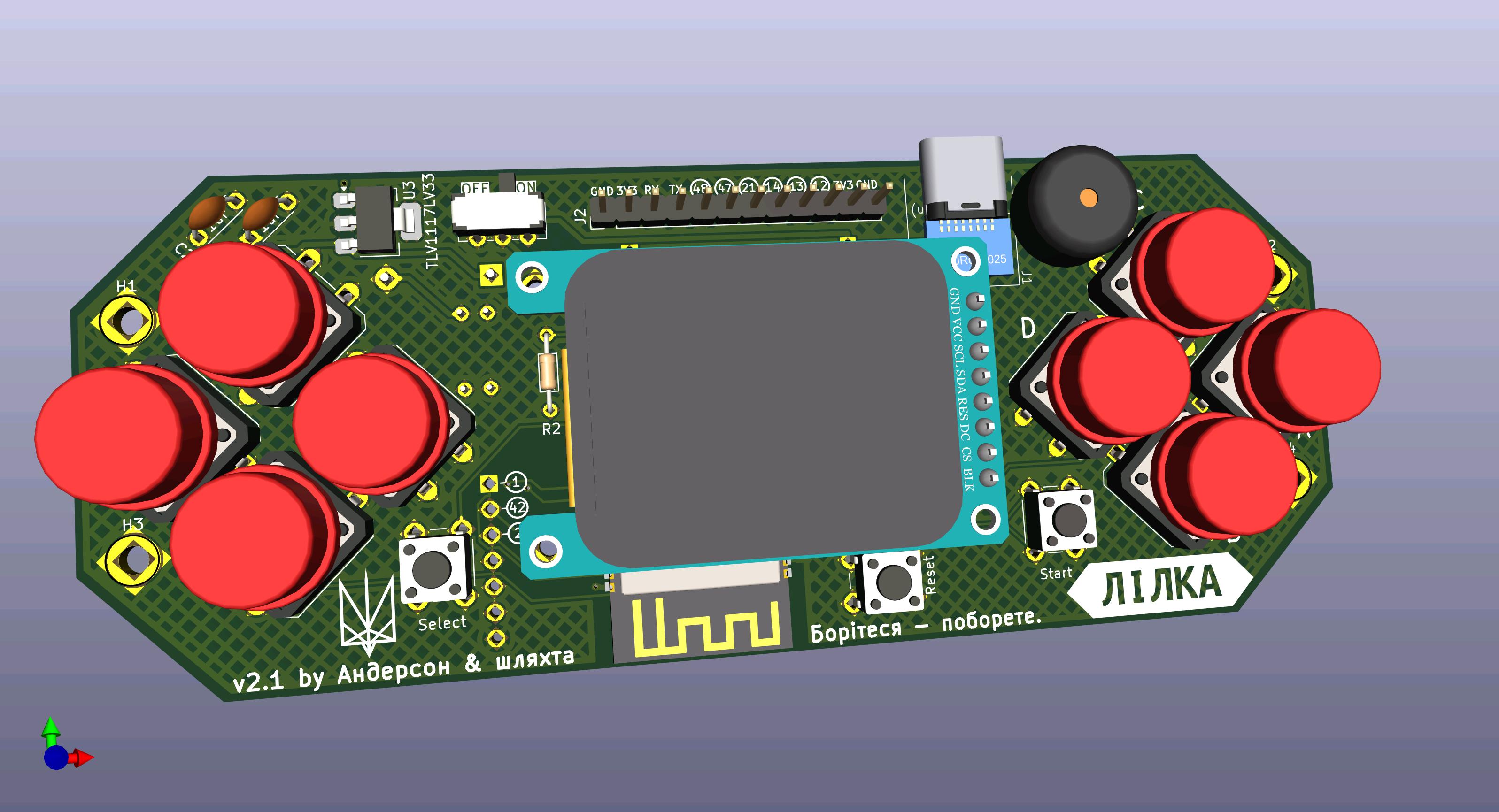

Main rounded, from the project README
From the project README

Main components on the Main rounded

LTC3111EMSEPBFCP2102N-A02-GQFN24ESP32-S3-WROOM-1

Main rounded bill of materials (BOM)

31 components, 29 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LTC3111EMSEPBF
ESP32-S3-WROOM-1
U1
1
CP2102N-A02-GQFN24
~
U2
1
ESP32-S3-WROOM-1
TLV1117LV33
U3
1
SS8050-G
IRLML6401
Q1
1
CONN_02X05_ODD_EVEN
~
J1
1
Ext
J2
1
uSD
J3
1
TP4056
J4
1
~
J5
1
AudioJack
J6
1
Buzzer
BZ1
1
SKRTLAE010
Up
SW1
1
SKRTLAE010
Down
SW2
1
Left
SW3
1
Right
SW4
1
A
SW5
1
B
SW6
1
C
SW7
1
D
SW8
1
Select
SW9
Show 9 more
QtyPartRefs
1
Start
SW10
1
Power
SW11
1
Reset
SW12
1
1N4001
D1
1
1uF
C1
2
10uF
C2, C3
1
1K8
10K
R1
2
100K
R2, R3
1
33K
R4

Main rounded design files

The KiCad project lives in the rompasaurus/dilder repository on GitHub; these links point at the commit this page was built from.

Main rounded: common questions

What microcontroller does the Main rounded use?

The Main rounded is built around the LTC3111EMSEPBF, from the ESP32 family.

How big is the Main rounded PCB?

The Main rounded measures 129.5 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Main rounded?

31 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Main rounded design files?

From the rompasaurus/dilder repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Main rounded design in my own project?

The repository has no license, so all rights stay with rompasaurus. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Main rounded without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
