Iceduino

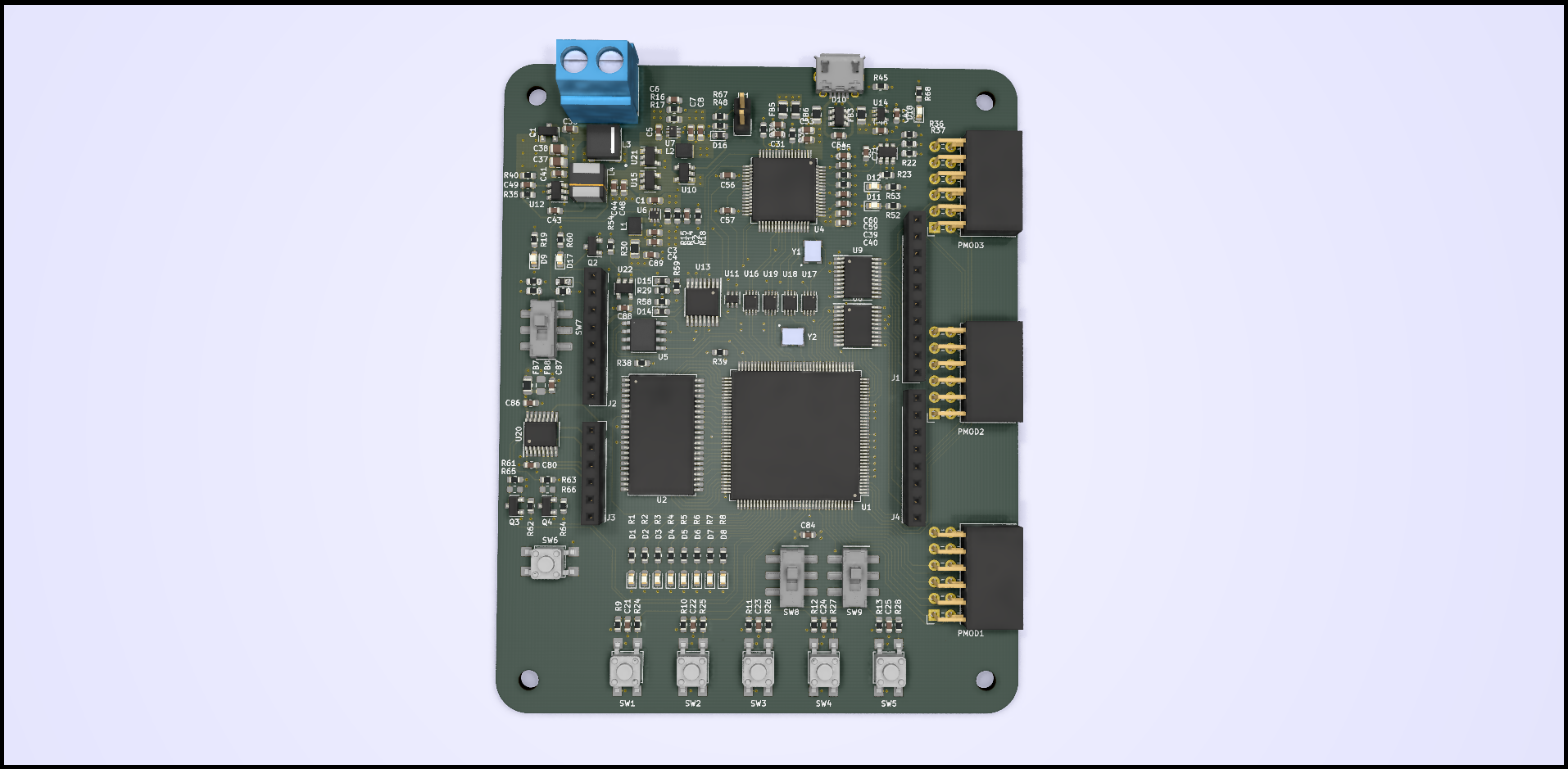

About the Iceduino PCB
Iceduino is an open source FPGA PCB design by RubenVoell, published on GitHub under the CERN-OHL-1.2 license. It is a 4-layer board measuring 80 × 100 mm, with 241 components from 65 distinct parts.
Its main chip is the ICE40HX4K-TQ144, from the FPGA family. Other key parts include the IS61WV5128EDBLL-10TLI, 93LCXXBT-I_OT, FT2232H, IS25LP080D and TLV62568APDRLR. By type, the board carries 92 capacitors, 69 resistors, 23 ICs, 19 diodes, 11 inductors and 9 switches.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
The basic idea behind this project is to create a simple breakout of an ICE40 FPGA with some LEDs and Buttons to interact with the FPGA and enough resources to run a simple softcore, like a small RISC-V core. Therefore a SRAM will be added in case the internal memory blocks are n
The basic idea behind this project is to create a simple breakout of an ICE40 FPGA with some LEDs and Buttons to interact with the FPGA and enough resources to run a simple softcore, like a small RISC-V core. Therefore a SRAM will be added in case the internal memory blocks are not big enough, The configuration SPI flash may be used to store programm data for the softcore. So this board can be used for teaching basic FPGA, microcontroller and CPU architecture topics.
Main components on the Iceduino
Iceduino bill of materials (BOM)
241 components, 65 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ICE40HX4K-TQ144 | TQFP-144_20x20mm_P0.5mm | U1 |
| 1 | IS61WV5128EDBLL-10TLI | TSOP-II-44_10.16x18.41mm_P0.8mm | U2 |
| 1 | 93LCXXBT-I_OT 93LCxxBT-I_OT | SOT-23-6 | U3 |
| 1 | FT2232H | LQFP-64_10x10mm_P0.5mm | U4 |
| 1 | IS25LP080D | SO-8_3.9x4.9mm_P1.27mm | U5 |
| 2 | TLV62568APDRLR | Texas_DRL_SOT-563_1.6x1.6mm_0.5mm-pitch_footprint | U6, U7 |
| 2 | TXS0108EPW | TSSOP-20_4.4x6.5mm_P0.65mm | U8, U9 |
| 5 | MAX40200AUK | SOT-23-5 | U10, U15, U21, U22, U23 |
| 1 | SN74LVC2G07DCKR | SOT-363_SC-70-6 | U11 |
| 1 | TPS562201 | SOT-23-6 | U12 |
| 1 | SN74AXC4T245PWR | TSSOP-16_4.4x5mm_P0.65mm | U13 |
| 1 | MIC5365-3.3YC5 | SOT-353_SC-70-5 | U14 |
| 4 | SN74LVC2T45DCUR | VSSOP-8_2.4x2.1mm_P0.5mm | U16, U17, U18, U19 |
| 1 | MAX11614 | QSOP-16_3.9x4.9mm_P0.635mm | U20 |
| 1 | DMP3099L-7 | SOT-23 | Q1 |
| 3 | DMN65D8L-7DI Q_NMOS_GSD | SOT-23 | Q2, Q3, Q4 |
| 1 | ECS-3225S33-120-FN ECS-3225S33-120-FN-TR | Y_ECS-3225S_3.2x2.5mm_footprint | Y1 |
| 1 | ECS-3225S33-500-FN ECS-3225S33-500-FN-TR | Y_ECS-3225S_3.2x2.5mm_footprint | Y2 |
| 1 | CONN_01X10 Conn_01x10 | PinSocket_1x10_P2.54mm_Vertical | J1 |
| 2 | CONN_01X08 Conn_01x08 | PinSocket_1x08_P2.54mm_Vertical | J2, J4 |
Show 45 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X06 Conn_01x06 | PinSocket_1x06_P2.54mm_Vertical | J3 |
| 1 | 609-4618-1 USB_B_Micro | Amphenol_microUSB_B_footprint | J5 |
| 1 | 102-6203 7-17 V IN | TerminalBlock_bornier-2_P5.08mm | J6 |
| 1 | VBUS_EN | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 3 | CONN_02X06_ODD_EVEN Conn_02x06_Odd_Even | PinSocket_2x06_P2.54mm_Horizontal | PMOD1, PMOD2, PMOD3 |
| 2 | CG0603MLA-18KE | R_0603_1608Metric | RV1, RV2 |
| 6 | SW_Push | SW_SPST_TL3305A | SW1, SW2, SW3, SW4, SW5, SW6 |
| 3 | JS202011SCQN | SW_SLIDE_DPDT_Slide_CK_JS202011SCQN_W3mm_P2.5mm_footprint | SW7, SW8, SW9 |
| 9 | SML-D12U1WT86 LED_ALT | LED_0603_1608Metric | D1, D2, D3, D4, D5, D6, D7, D8 +1 |
| 1 | AOZ8904CIL | SOT-23-6 | D10 |
| 1 | SML-D12U1WT86 RX LED | LED_0603_1608Metric | D11 |
| 1 | SML-D12U1WT86 TX LED | LED_0603_1608Metric | D12 |
| 5 | CDBU5020 | D_0603_1608Metric | D13, D14, D15, D16, D19 |
| 1 | SML-D12U1WT86 DONE | LED_0603_1608Metric | D17 |
| 1 | SML-D12U1WT86 USB ON LED | LED_0603_1608Metric | D18 |
| 7 | 445-1569-1 330 Ohm | R_0805_2012Metric | FB1, FB2, FB3, FB4, FB5, FB6, FB7 |
| 2 | 1u | L_1008_2520Metric_2.5x2mm_footprint | L1, L2 |
| 1 | L_DLW5BTM | L_Murata_DLW5BTM_5.00x5.00mm_footprint | L3 |
| 1 | 587-2373-1 4,7 uH | L_Taiyo-Yuden_NR-50xx | L4 |
| 22 | 1276-1119-1 10 uF 6,3 V | C_0603_1608Metric | C1, C3, C4, C5, C7, C8, C31, C33 +14 |
| 3 | 1276-1027-1 10pF 6,3 V | C_0603_1608Metric | C2, C6, C49 |
| 57 | 1276-1000-1 100nF 6,3 V | C_0603_1608Metric | C9, C10, C11, C12, C13, C14, C15, C16 +49 |
| 3 | 1276-2891-1 10 uF 25 V | C_0805_2012Metric | C34, C37, C38 |
| 3 | 1276-1000-1 100nF 25 V | C_0603_1608Metric | C35, C36, C41 |
| 2 | 490-7611-1 22 uF 6,3 V | C_0603_1608Metric | C44, C48 |
| 2 | 1276-6524-1 1 uF 16 V | C_0603_1608Metric | C46, C47 |
| 13 | 560 | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7, R8 +5 |
| 13 | RMCF0603JT4K70 4,7k | R_0603_1608Metric | R9, R10, R11, R12, R13, R31, R32, R50 +5 |
| 2 | 311-100KHR 100k 1% | R_0603_1608Metric | R14, R15 |
| 1 | 311-220KHR 220k 1% | R_0603_1608Metric | R16 |
| 1 | 311-48.7KHR 48,7k 1% | R_0603_1608Metric | R17 |
| 18 | 10K 10k | R_0603_1608Metric | R18, R20, R21, R22, R29, R37, R38, R39 +10 |
| 2 | 311-2.20KHR 2,2k | R_0603_1608Metric | R23, R34 |
| 7 | 470 | R_0603_1608Metric | R24, R25, R26, R27, R28, R56, R57 |
| 1 | 0 | R_0805_2012Metric | R30 |
| 1 | 12K 12k | R_0603_1608Metric | R33 |
| 1 | 311-54.9KHR 54k9 1% | R_0603_1608Metric | R35 |
| 1 | 4K7 4k7 | R_0603_1608Metric | R36 |
| 1 | 311-10.0KHR 10k 1% | R_0603_1608Metric | R40 |
| 2 | 100 | R_0603_1608Metric | R41, R42 |
| 1 | 33K 33k | R_0603_1608Metric | R46 |
| 1 | 22K 22k | R_0603_1608Metric | R49 |
| 1 | 311-270KHR 270k 1% | R_0603_1608Metric | R55 |
| 1 | 311-30.0KHR 30k 1% | R_0603_1608Metric | R69 |
| 1 | 1k | R_0603_1608Metric | R70 |
Iceduino design files
The KiCad project lives in the RubenVoell/iceduino repository on GitHub; these links point at the commit this page was built from.
Iceduino: common questions
What microcontroller does the Iceduino use?
The Iceduino is built around the ICE40HX4K-TQ144, from the FPGA family.
How big is the Iceduino PCB?
The Iceduino measures 80 × 100 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Iceduino?
241 components, from 65 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Iceduino design files?
From the RubenVoell/iceduino repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Iceduino design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which RubenVoell chose for the repository.
