LightBoard-Gift PCB layout, top view — open source RP2040/RP2350 board by SaltyMelonYT

About the LightBoard-Gift PCB

LightBoard-Gift is an open source RP2040/RP2350 PCB design by SaltyMelonYT, published on GitHub under the MIT license. It is a 2-layer board measuring 76.5 × 52.8 mm, with 23 components from 6 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 10 diodes, 10 resistors, 2 switches and 1 module.

From the project

I'm a nerd

Tailored towards couples for any occasion, wheather it be Valentines day, Christmas, Birthday, etc

One (1) Raspberry Pi Pico Ten (10) Chazon 5mm RGB LEDs Printed Circuit Board (PCB) from KiCad files Ten (10) 560 Ohm 2515 Resistors (220 ohm will work fine, I just chose 560 because it was dimmer without software changes) * Soldering Iron and solder

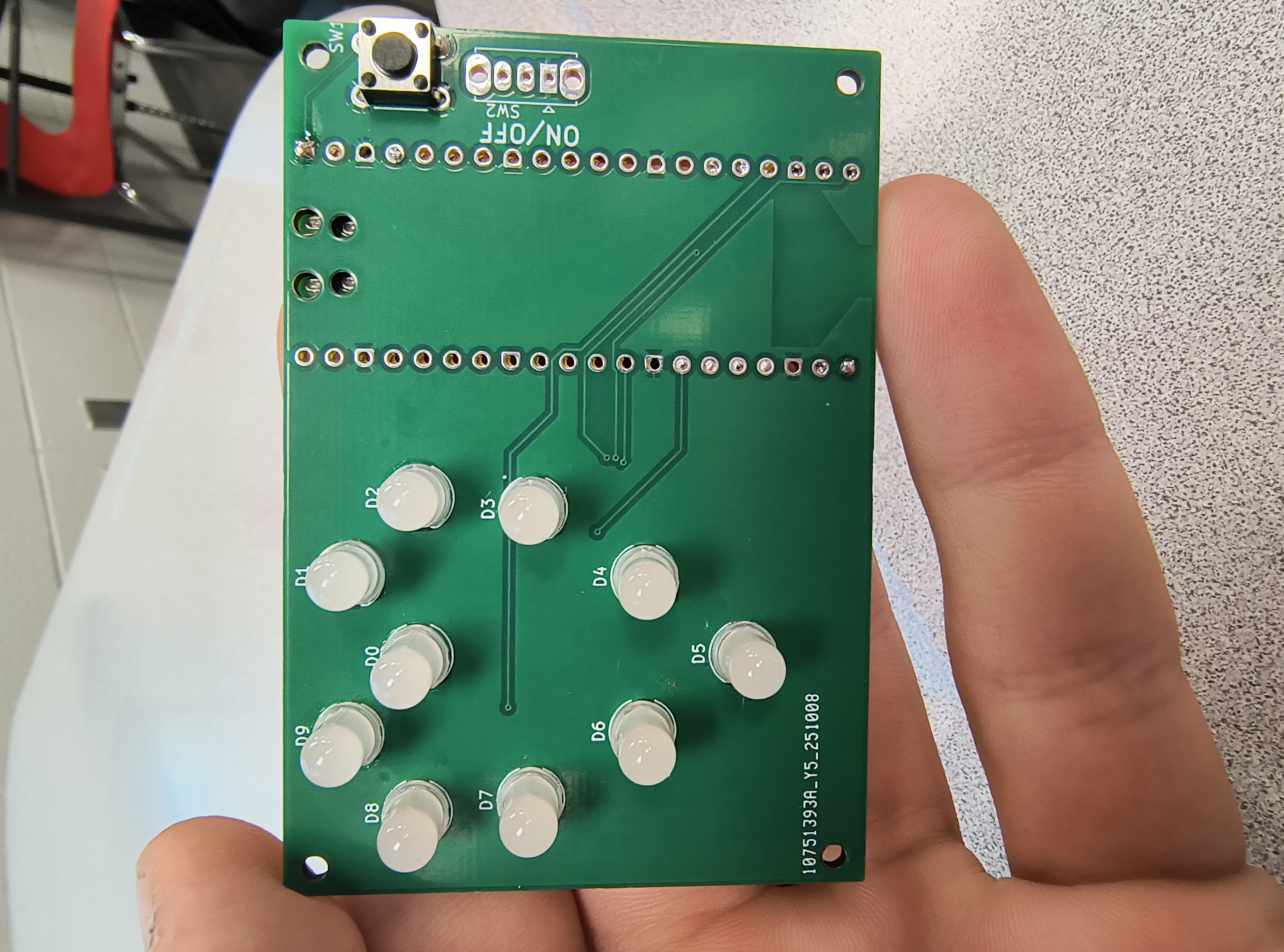

LightBoard-Gift, from the project README
From the project README

Main components on the LightBoard-Gift

RaspberryPi_Pico

LightBoard-Gift bill of materials (BOM)

23 components, 6 distinct parts.

QtyPartRefs
1
RaspberryPi_Pico
A1
1
MODE_SELECT
SW1
1
SWITCH
SW2
10
LED_RKGB
D0, D1, D2, D3, D4, D5, D6, D7 +2
9
560Ohm
R0, R1, R2, R4, R5, R6, R7, R8 +1
1
R_Small
R3

LightBoard-Gift design files

The KiCad project lives in the SaltyMelonYT/PCB-Projects repository on GitHub; these links point at the commit this page was built from.

LightBoard-Gift: common questions

What microcontroller does the LightBoard-Gift use?

The LightBoard-Gift is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the LightBoard-Gift PCB?

The LightBoard-Gift measures 76.5 × 52.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LightBoard-Gift?

23 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the LightBoard-Gift design files?

From the SaltyMelonYT/PCB-Projects repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the LightBoard-Gift design in my own project?

Yes, under the terms of its MIT license, which SaltyMelonYT chose for the repository.

Can I test firmware for the LightBoard-Gift without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
